Allis Chalmers 5030
The Allis Chalmers 5030 is a utility tractor that was made from 1979 to 1985. It's a small, simple tractor that's good for basic farm work. The tractor has a 2WD drive system and a mechanical steering type, which means it's easy to control but might not be the best for very tough terrain. Under the hood, the 5030 has a Toyosha S148 engine. This engine is diesel-powered and has two cylinders. It's not very powerful compared to other tractors, with only 31 horsepower. But it's reliable and can handle many farm tasks. The tractor has a 12-speed forward and 3-speed reverse transmission, giving the driver lots of options for different jobs. It also has a rear PTO that spins at 540 rpm, which is useful for running various farm tools. The 5030 is compact, measuring about 100 inches long and 54 inches wide, making it easy to maneuver in tight spaces. It's also pretty light at 2,530 pounds, which is below average for tractors of its kind.
ManufacturerAllis ChalmersPower31 hpEngine2-cylTransSliding gear (unsynchronized gear)
Quick specs
- Category
- Utility
- Engine Power Output
- 31hp
- Operating Weight
- 2,530 lb
- Transmission
- Sliding gear (unsynchronized gear)
At a glance
How the 5030 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
31 hp · 23rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5030 ranks at the 23rd percentile for engine power among recorded utility tractors.
Overview
About the Allis Chalmers 5030
The Allis Chalmers 5030 is a utility tractor that was made from 1979 to 1985. It's a small, simple tractor that's good for basic farm work. The tractor has a 2WD drive system and a mechanical steering type, which means it's easy to control but might not be the best for very tough terrain. Under the hood, the 5030 has a Toyosha S148 engine. This engine is diesel-powered and has two cylinders. It's not very powerful compared to other tractors, with only 31 horsepower. But it's reliable and can handle many farm tasks. The tractor has a 12-speed forward and 3-speed reverse transmission, giving the driver lots of options for different jobs. It also has a rear PTO that spins at 540 rpm, which is useful for running various farm tools. The 5030 is compact, measuring about 100 inches long and 54 inches wide, making it easy to maneuver in tight spaces. It's also pretty light at 2,530 pounds, which is below average for tractors of its kind.
Full specifications
Every recorded spec
General
| Manufacturer | Allis Chalmers |
|---|---|
| Model | 5030 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1979–1985 |
| Operating weight | 2,530lb |
Engine
| Make | Toyosha |
|---|---|
| Model | S148 |
| Power | 31hp |
| Cylinders | 2 |
| Displacement | 90.1ci |
| Bore | 3.82in |
| Stroke | 3.94in |
Transmission
| Type | Sliding gear (unsynchronized gear) |
|---|---|
| Forward gears | 12 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Mechanical |
| Brakes | Differential mechanical drum and shoe |
| Cab | Open with optional ROPS canopy |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Rear, transmission PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 100.4in |
|---|---|
| Width | 53.5in |
| Height | 81.9in |
| Operating weight | 2,530lb |
Capacities
| Cooling system | 1.33gal |
|---|
Head to head
5030 vs. Utility median
How the Allis Chalmers 5030 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 31 hp | 55 hp | -44% | 23rd |
| Engine Displacement | 90.1 ci | 183 ci | -51% | 16th |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 2,530 lb | 5,303 lb | -52% | 17th |
| Length | 100 in | 137 in | -27% | 9th |
| Width | 53.5 in | 66 in | -19% | 23rd |
| Height | 81.9 in | 94.1 in | -13% | 29th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Allis Chalmers tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
| Allis Chalmers D272 | 27.5 hp | 2,060 lb | — | Compare → |
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Tigre 4000 | 31 hp | — | — | Compare → |
| Belarus 250AS | 31 hp | 6,614 lb | 1979–1987 | Compare → |
| Belarus Golfmaster | 31 hp | 5,155 lb | — | Compare → |
| AGCO ST30 | 30.3 hp | 2,594 lb | — | Compare → |
| Bobcat CT230 | 30 hp | 3,056 lb | 2008–2013 | Compare → |
Explore
Allis Chalmers siblings
Explore
Similar-spec models
Gallery

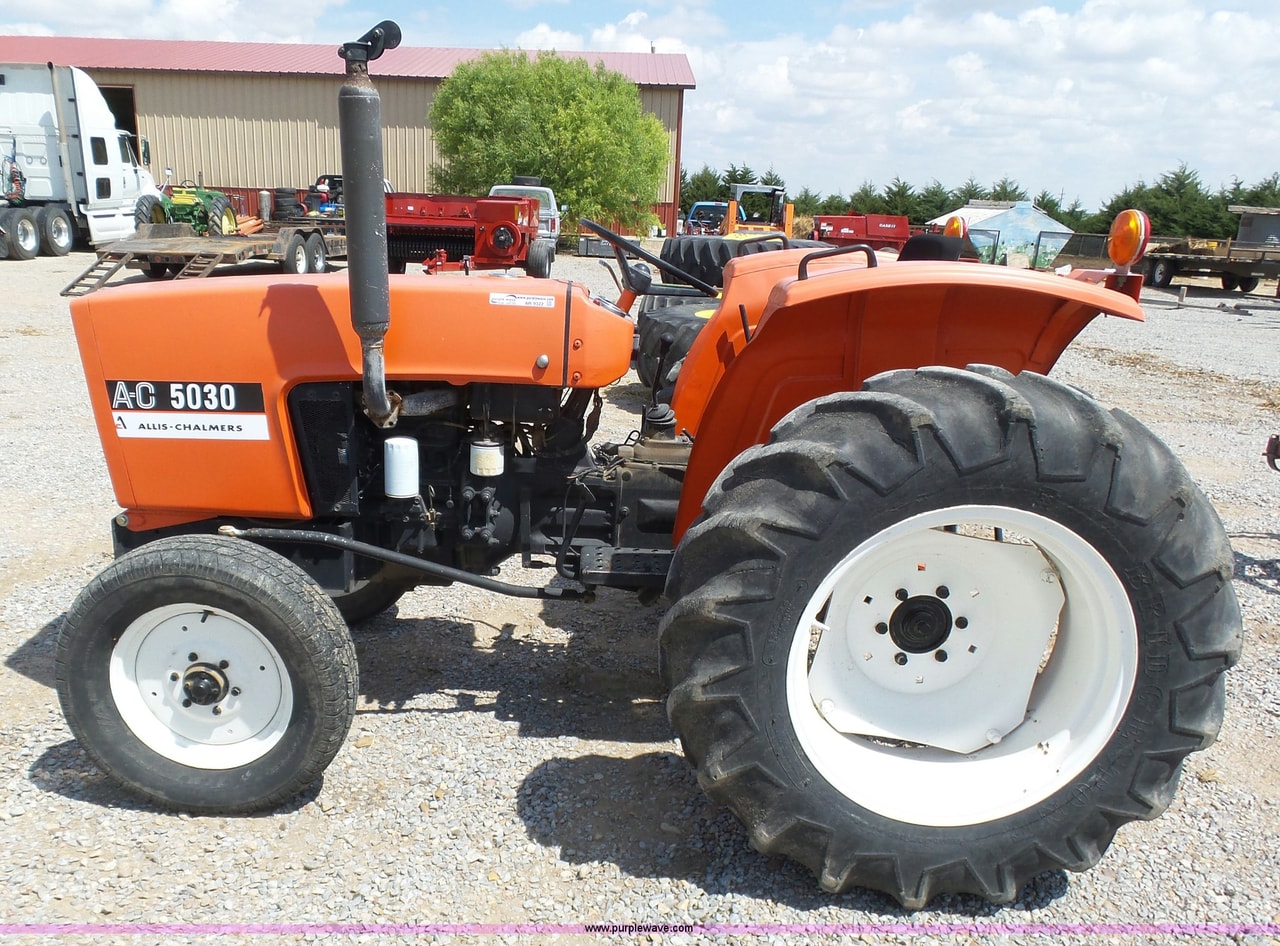

Allis Chalmers 5030 photos
FAQ
Common questions
When was the Allis Chalmers 5030 in production?
Allis Chalmers 5030 production started in 1979 and ended in 1985.
What transmission is in the Allis Chalmers 5030?
Transmission on the Allis Chalmers 5030 is Sliding gear (unsynchronized gear), with 12 forward speeds.
What hydraulics does the Allis Chalmers 5030 have?
The Allis Chalmers 5030 uses an Open center hydraulic system.
How much horsepower does the Allis Chalmers 5030 have?
The Allis Chalmers 5030 produces 31 hp from its 2-cylinder engine. Engine displacement is 90.1 ci.
How much does the Allis Chalmers 5030 weigh?
The Allis Chalmers 5030 weighs about 2,530 lb in operating condition.
What maintenance does the Allis Chalmers 5030 require?
Like any tractor, the Allis Chalmers 5030 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
