Row Crop tractorsSpec sheet
Allis Chalmers 7060
The Allis Chalmers 7060 is a powerful row crop tractor built from 1974 to 1981. It has a strong 6-cylinder diesel engine that makes 192 horsepower, which is above average for tractors of its time. The engine is turbocharged and intercooled, giving it extra power for tough jobs. This tractor has a 2-wheel drive system and hydrostatic power steering, making it easy to control in the fields. The 7060 comes with a partial power shift transmission that has 20 forward gears and 4 reverse gears. This gives farmers lots of options for different speeds and tasks. It has a three-point hitch at the back that can lift up to 6,680 pounds, which is good for handling heavy farm equipment. The tractor also has a 1000 rpm PTO for running tools. Inside, there's a comfortable cab to keep the driver safe and cool. The tractor weighs 13,990 pounds and is about 13.5 feet long, 8 feet wide, and 9.75 feet tall. It has big agricultural tires that help it work well in farm fields.
ManufacturerAllis ChalmersPower192 hp(143.2 kW)Class150–300 HP tractors →Engine6-cylinderTransmissionPartial power shift
Key specifications
- Category
- Row Crop
- Engine power
- 192hp
- Operating weight
- 13,990 lb
- Transmission
- Partial power shift
Category comparison
7060 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
192 hp · 74th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 7060 ranks at the 74th percentile for engine power among recorded row crop tractors.
Overview
About the Allis Chalmers 7060
The Allis Chalmers 7060 is a powerful row crop tractor built from 1974 to 1981. It has a strong 6-cylinder diesel engine that makes 192 horsepower, which is above average for tractors of its time. The engine is turbocharged and intercooled, giving it extra power for tough jobs. This tractor has a 2-wheel drive system and hydrostatic power steering, making it easy to control in the fields. The 7060 comes with a partial power shift transmission that has 20 forward gears and 4 reverse gears. This gives farmers lots of options for different speeds and tasks. It has a three-point hitch at the back that can lift up to 6,680 pounds, which is good for handling heavy farm equipment. The tractor also has a 1000 rpm PTO for running tools. Inside, there's a comfortable cab to keep the driver safe and cool. The tractor weighs 13,990 pounds and is about 13.5 feet long, 8 feet wide, and 9.75 feet tall. It has big agricultural tires that help it work well in farm fields.
Full specifications
Recorded specifications
General
| Manufacturer | Allis Chalmers |
|---|---|
| Model | 7060 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1974–1981 |
| Operating weight | 13,990lb(6,346 kg) |
Engine
| Make | Allis Chalmers |
|---|---|
| Model | 670I |
| Power | 192hp(143.2 kW) |
| Cylinders | 6 |
| Displacement | 426ci(6.98 L) |
| Bore | 4.25in(107.9 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 20 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Differential hydraulic wet discs |
| Cab | Cab |
Hydraulics
| Type | Closed center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 1,000rpm |
Dimensions
| Length | 163in(4,140 mm) |
|---|---|
| Width | 95.5in(2,426 mm) |
| Height | 117in(2,972 mm) |
| Operating weight | 13,990lb(6,346 kg) |
Capacities
| Cooling system | 8gal(30.28 L) |
|---|
Closest alternatives
7060 compared with the nearest models by horsepower
Among row crop tractors, the Claas Axion 800 and the McCormick Intl XTX215 are closest to the Allis Chalmers 7060 in rated horsepower. The Claas Axion 800 makes 1 hp more and weighs 4,310 lb more, so it carries more weight per horsepower, which helps traction in draft work. The McCormick Intl XTX215 is rated 1 hp higher and weighs 2,020 lb more, at 83 lb per horsepower against 73 lb. Of the 3 models, the 7060 has the lowest weight per horsepower at 73 lb per hp.
| Spec | Allis Chalmers 7060 | Claas Axion 800 | McCormick Intl XTX215 |
|---|---|---|---|
| Engine power | 192 hp143.2 kW | 193 hp143.9 kW | 193 hp143.9 kW |
| Operating weight | 13,990 lb6,346 kg | 18,298 lb8,300 kg | 16,010 lb7,262 kg |
| Weight per hp | 73 lb/hp44 kg/kW | 95 lb/hp58 kg/kW | 83 lb/hp50 kg/kW |
| Displacement | 426 ci6.98 L | 410.6 ci6.73 L | 410.6 ci6.73 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Partial power shift | 24-speed power shift | XtraSpeed power shift |
| Drive | 2WD | 4WD | 4WD |
Calculators
Calculators for the 7060
PTO power
About 159 to 173 PTO hp
Estimated from the 192 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 192 hp tractor can run
Maximum size is about a 23 ft rotary cutter or a 19.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
85 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
192 hp is 143.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
7060 vs. Row Crop median
Allis Chalmers 7060 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 192 hp | 138 hp | +39% | 74th |
| Engine Displacement | 426 ci | 391 ci | +9% | 72nd |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 20 | 16 | +25% | 70th |
| Operating Weight | 13,990 lb | 12,307 lb | +14% | 62nd |
| Length | 163 in | 180 in | -9% | 27th |
| Width | 95.5 in | 91.2 in | +5% | 63rd |
| Height | 117 in | 114 in | +3% | 63rd |
| 3-Point Hitch Capacity | 6,680 lb | 11,023 lb | -39% | 20th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 279–1,417 models).
Same manufacturer
Other Allis Chalmers models
Other manufacturers
Models with similar horsepower
Gallery

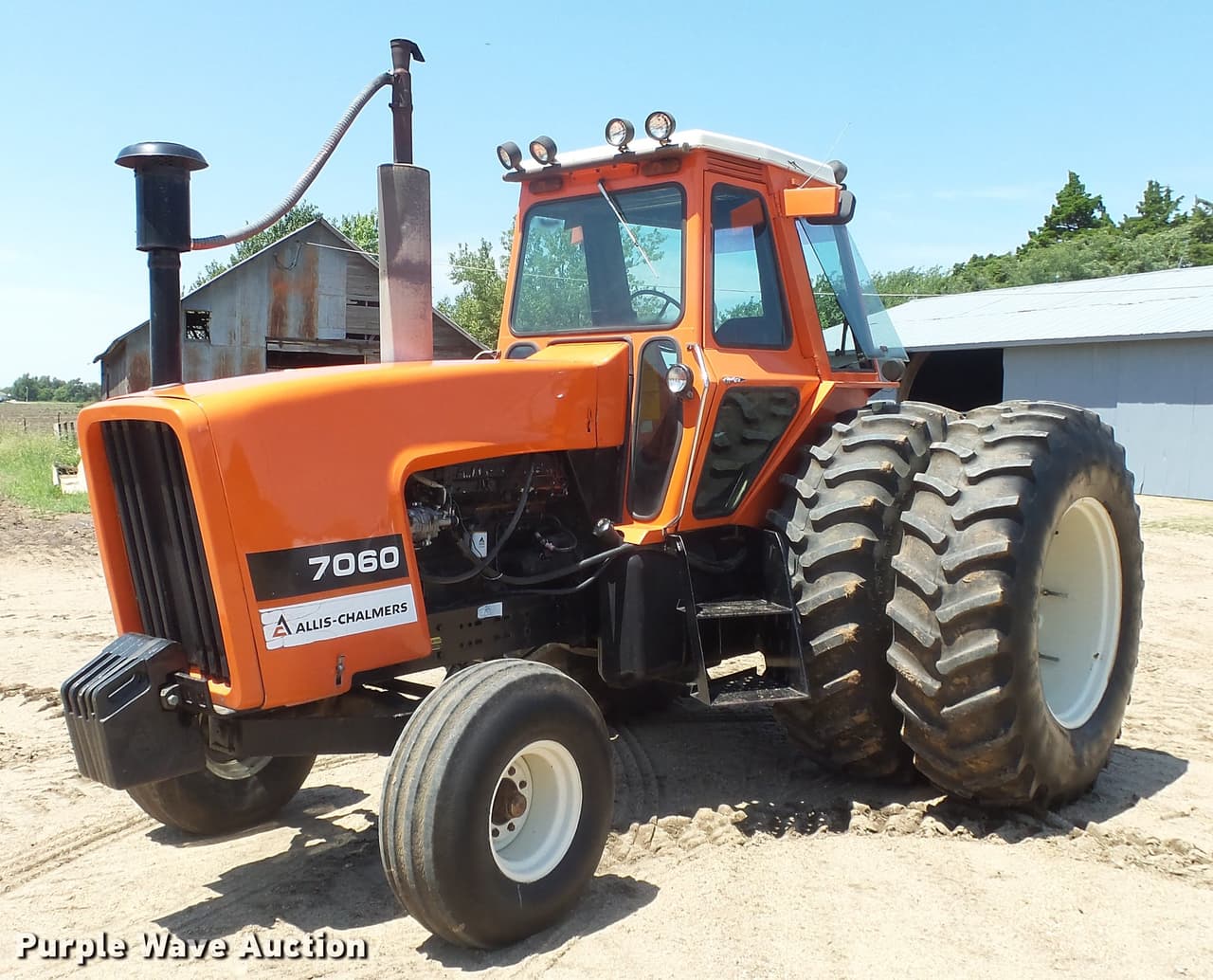

Allis Chalmers 7060 photos
FAQ
Frequently asked questions
When was the Allis Chalmers 7060 made?
The Allis Chalmers 7060 was manufactured from 1974 to 1981.
What is the operating weight of the Allis Chalmers 7060?
The Allis Chalmers 7060 has an operating weight of about 13,990 lb.
Which transmission does the Allis Chalmers 7060 use?
The Allis Chalmers 7060 is equipped with a Partial power shift transmission with 20 forward gears.
What type of hydraulic system does the Allis Chalmers 7060 use?
Hydraulics on the Allis Chalmers 7060 are Closed center.
What hitch category is the Allis Chalmers 7060?
The Allis Chalmers 7060 uses a Category Category III/II hitch with a lift capacity of 6,680 lb.
What is the engine power output of the Allis Chalmers 7060?
Rated engine output for the Allis Chalmers 7060 is 192 hp, delivered by a 6-cylinder engine. The engine displaces 426 ci.
How do I maintain a Allis Chalmers 7060?
Routine service for the Allis Chalmers 7060 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
