UtilityPerformance profile
Allis Chalmers D270
The Allis Chalmers D270 is a utility tractor built for everyday farm tasks. It has a 2WD drive system and a simple sliding gear transmission with 4 forward gears and 1 reverse gear. The tractor is powered by a 4-cylinder gasoline engine made by Allis Chalmers. This engine has a displacement of 125.3 cubic inches, which is below average for tractors. It produces 22 horsepower at 1600 RPM, which is also on the lower end of the power range for tractors. This tractor is compact, measuring 120 inches long, 83.625 inches wide, and 78 inches tall. It weighs 2500 pounds, making it a lighter tractor that's easy to maneuver. The D270 features agricultural tires on both front and rear, and uses the Allis Snap Coupler hitch system. It has an electric starter and a 12-volt electrical system. The coolant capacity is 6 quarts, which helps keep the engine running smoothly during operation.
ManufacturerAllis ChalmersPower22 hpEngine4-cylTransSliding Gear
Quick specs
- Category
- Utility
- Engine Power Output
- 22hp
- Operating Weight
- 2,500 lb
- Transmission
- Sliding Gear
At a glance
How the D270 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
22 hp · 11th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The D270 ranks at the 11th percentile for engine power among recorded utility tractors.
Overview
About the Allis Chalmers D270
The Allis Chalmers D270 is a utility tractor built for everyday farm tasks. It has a 2WD drive system and a simple sliding gear transmission with 4 forward gears and 1 reverse gear. The tractor is powered by a 4-cylinder gasoline engine made by Allis Chalmers. This engine has a displacement of 125.3 cubic inches, which is below average for tractors. It produces 22 horsepower at 1600 RPM, which is also on the lower end of the power range for tractors. This tractor is compact, measuring 120 inches long, 83.625 inches wide, and 78 inches tall. It weighs 2500 pounds, making it a lighter tractor that's easy to maneuver. The D270 features agricultural tires on both front and rear, and uses the Allis Snap Coupler hitch system. It has an electric starter and a 12-volt electrical system. The coolant capacity is 6 quarts, which helps keep the engine running smoothly during operation.
Full specifications
Every recorded spec
General
| Manufacturer | Allis Chalmers |
|---|---|
| Model | D270 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 2,500lb |
Engine
| Make | Allis Chalmers |
|---|---|
| Model | Allis-Chalmers 2.1L 4-cyl gasoline |
| Power | 22hp |
| Cylinders | 4 |
| Displacement | 125.3ci |
| Bore | 3.38in |
| Stroke | 3.5in |
Transmission
| Type | Sliding Gear |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 120in |
|---|---|
| Width | 83.63in |
| Height | 78in |
| Operating weight | 2,500lb |
Capacities
| Cooling system | 1.5gal |
|---|
Head to head
D270 vs. Utility median
How the Allis Chalmers D270 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22 hp | 55 hp | -60% | 11th |
| Engine Displacement | 125 ci | 183 ci | -32% | 30th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 12 | -67% | 4th |
| Operating Weight | 2,500 lb | 5,303 lb | -53% | 16th |
| Length | 120 in | 137 in | -12% | 27th |
| Width | 83.6 in | 66 in | +27% | 86th |
| Height | 78 in | 94.1 in | -17% | 24th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Allis Chalmers tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 620 | 19.5 hp | 1,499 lb | 1973–1975 | Compare → |
| Allis Chalmers 720 | 19.5 hp | 1,299 lb | 1975–1983 | Compare → |
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
| Allis Chalmers 5015 | 18 hp | 1,278 lb | 1982–1985 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 200 | 22 hp | 2,600 lb | — | Compare → |
| Belarus 2011 | 22 hp | 2,602 lb | — | Compare → |
| Belarus 2045 | 22 hp | 2,712 lb | — | Compare → |
| Belarus 2145 | 22 hp | 2,700 lb | — | Compare → |
| Belarus 220 | 22 hp | 2,750 lb | — | Compare → |
Explore
Allis Chalmers siblings
Explore
Similar-spec models
Gallery

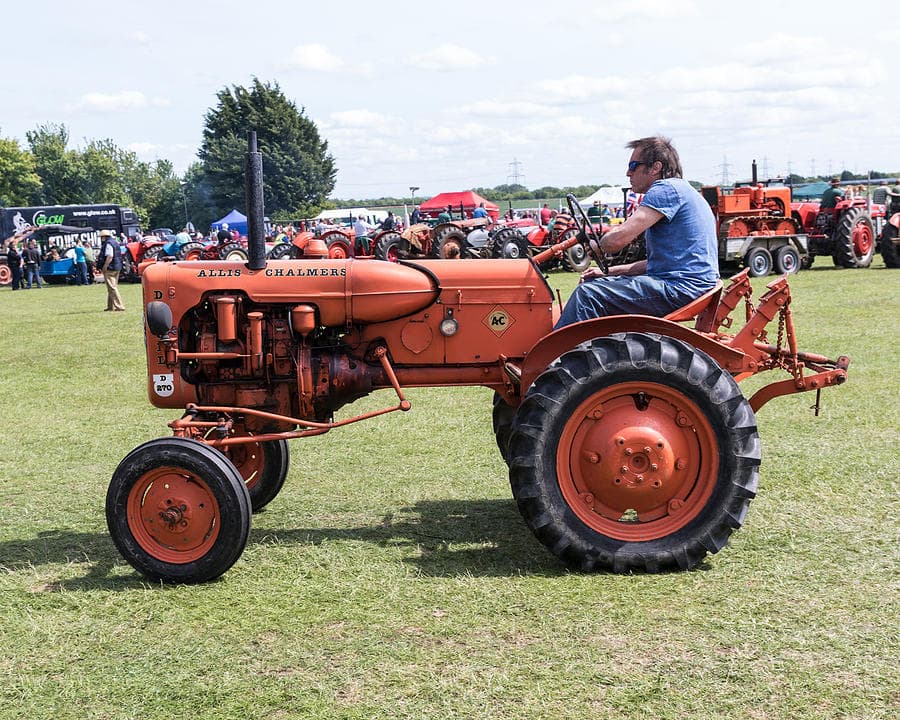

Allis Chalmers D270 photos
FAQ
Common questions
What is the engine power output of the Allis Chalmers D270?
Rated engine output for the Allis Chalmers D270 is 22 hp, delivered by a 4-cylinder engine. The engine displaces 125.3 ci.
Which transmission does the Allis Chalmers D270 use?
The Allis Chalmers D270 is equipped with a Sliding Gear transmission with 4 forward gears.
What is the operating weight of the Allis Chalmers D270?
In working trim, the Allis Chalmers D270 comes in at roughly 2,500 lb.
How do I maintain a Allis Chalmers D270?
Routine service for the Allis Chalmers D270 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
