Bolens G172
The Bolens G172 is a compact diesel tractor designed for small-scale farming and property maintenance. It features a liquid-cooled, 2-cylinder engine made by Iseki or Mitsubishi. The engine has a displacement of 46.6 cubic inches and produces 17 horsepower, making it suitable for light to medium-duty tasks. This tractor comes with an unsynchronized gear transmission, offering 6 forward gears and 2 reverse gears. This gives operators good control over speed and power for various jobs. The G172 is relatively small, measuring 76.4 inches long, 37.8 inches wide, and 46.9 inches tall. It weighs 1,056 pounds, which helps it maintain stability while working. The tractor has agricultural tires on both front and rear, with the front tires being 4 inches wide. It starts easily with an electric starter and has a coolant capacity of 4.4 quarts to keep the engine running smoothly.
ManufacturerBolensPower17 hpEngine2-cylTransunsynchronized gear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 17hp
- Operating Weight
- 1,056 lb
- Transmission
- unsynchronized gear
At a glance
How the G172 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
17 hp · 15th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The G172 ranks at the 15th percentile for engine power among recorded sub-compact tractors.
Overview
About the Bolens G172
The Bolens G172 is a compact diesel tractor designed for small-scale farming and property maintenance. It features a liquid-cooled, 2-cylinder engine made by Iseki or Mitsubishi. The engine has a displacement of 46.6 cubic inches and produces 17 horsepower, making it suitable for light to medium-duty tasks. This tractor comes with an unsynchronized gear transmission, offering 6 forward gears and 2 reverse gears. This gives operators good control over speed and power for various jobs. The G172 is relatively small, measuring 76.4 inches long, 37.8 inches wide, and 46.9 inches tall. It weighs 1,056 pounds, which helps it maintain stability while working. The tractor has agricultural tires on both front and rear, with the front tires being 4 inches wide. It starts easily with an electric starter and has a coolant capacity of 4.4 quarts to keep the engine running smoothly.
Full specifications
Every recorded spec
General
| Manufacturer | Bolens |
|---|---|
| Model | G172 |
| Category | Sub-Compact tractor |
| Operating weight | 1,056lb |
Engine
| Make | Iseki, Mitsubishi |
|---|---|
| Model | KE 75 |
| Power | 17hp |
| Cylinders | 2 |
| Displacement | 46.6ci |
| Bore | 3.07in |
| Stroke | 3.15in |
Transmission
| Type | unsynchronized gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Dimensions
| Length | 76.4in |
|---|---|
| Width | 37.8in |
| Height | 46.9in |
| Operating weight | 1,056lb |
Capacities
| Cooling system | 1.1gal |
|---|
Head to head
G172 vs. Sub-Compact median
How the Bolens G172 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 17 hp | 26.9 hp | -37% | 15th |
| Engine Displacement | 46.6 ci | 91.4 ci | -49% | 8th |
| Cylinders | 2 | 3 | -33% | 11th |
| Forward Gears | 6 | 9 | -33% | 18th |
| Operating Weight | 1,056 lb | 2,700 lb | -61% | 2nd |
| Length | 76.4 in | 113 in | -33% | 3rd |
| Width | 37.8 in | 50.7 in | -25% | 7th |
| Height | 46.9 in | 78.4 in | -40% | 5th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Bolens tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bolens H1704 | 17 hp | 1,268 lb | — | Compare → |
| Bolens G212 G2102 | 21 hp | 1,588 lb | — | Compare → |
| Bolens G244 | 24 hp | 1,903 lb | — | Compare → |
| Bolens G272 | 27 hp | 2,250 lb | — | Compare → |
| Bolens G274 | 27 hp | 2,440 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ariens GT17 | 17 hp | 926 lb | 1979–1987 | Compare → |
| Cub Cadet 1517 | 17 hp | 500 lb | — | Compare → |
| Allis Chalmers 616 | 16.5 hp | 1,499 lb | 1972–1973 | Compare → |
| Cub Cadet 1170 | 17.5 hp | 1,080 lb | 2000–2002 | Compare → |
| Agria Hispania 7100 | 16 hp | — | — | Compare → |
Explore
Bolens siblings
Explore
Similar-spec models
Gallery

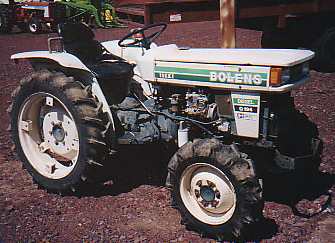

Bolens G172 photos
FAQ
Common questions
What is the engine power output of the Bolens G172?
Rated engine output for the Bolens G172 is 17 hp, delivered by a 2-cylinder engine. The engine displaces 46.6 ci.
Which transmission does the Bolens G172 use?
The Bolens G172 is equipped with an unsynchronized gear transmission with 6 forward gears.
What is the operating weight of the Bolens G172?
In working trim, the Bolens G172 comes in at roughly 1,056 lb.
How do I maintain a Bolens G172?
Routine service for the Bolens G172 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
