Brand siblingSub-CompactPerformance profile
Branson 3515H
The Branson 3515H is a compact 4x4 tractor designed for various farming tasks. It features a powerful steering system and a smooth hydrostatic transmission with infinite forward and reverse gears. This tractor is built to handle different terrains and jobs with ease. Under the hood, the 3515H boasts a Kukje A1700N4 diesel engine. This liquid-cooled engine has 3 cylinders and a displacement of 104.6 cubic inches. It produces 35 horsepower at 2600 RPM, providing enough power for most small to medium farm operations. The tractor's dimensions are 118 inches long, 57 inches wide, and 94 inches tall, making it suitable for working in tight spaces. With an operating weight of 3014 pounds, it's sturdy enough for tough jobs but not too heavy for the average farm. The 3515H comes with a rear Type I hitch, allowing for easy attachment of various implements. It features an open operator station with a foldable ROPS (Roll-Over Protective Structure) for safety. The electric starter ensures quick and easy engine starts. Overall, the Branson 3515H is a versatile and reliable tractor that combines compact size with good performance for everyday farm use.
ManufacturerBransonPower35 hpEngine3-cylTransHydrostatic
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 35hp
- Operating Weight
- 3,014 lb
- Transmission
- Hydrostatic
At a glance
How the 3515H compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
35 hp · 66th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 3515H ranks at the 66th percentile for engine power among recorded sub-compact tractors.
Overview
About the Branson 3515H
The Branson 3515H is a compact 4x4 tractor designed for various farming tasks. It features a powerful steering system and a smooth hydrostatic transmission with infinite forward and reverse gears. This tractor is built to handle different terrains and jobs with ease. Under the hood, the 3515H boasts a Kukje A1700N4 diesel engine. This liquid-cooled engine has 3 cylinders and a displacement of 104.6 cubic inches. It produces 35 horsepower at 2600 RPM, providing enough power for most small to medium farm operations. The tractor's dimensions are 118 inches long, 57 inches wide, and 94 inches tall, making it suitable for working in tight spaces. With an operating weight of 3014 pounds, it's sturdy enough for tough jobs but not too heavy for the average farm. The 3515H comes with a rear Type I hitch, allowing for easy attachment of various implements. It features an open operator station with a foldable ROPS (Roll-Over Protective Structure) for safety. The electric starter ensures quick and easy engine starts. Overall, the Branson 3515H is a versatile and reliable tractor that combines compact size with good performance for everyday farm use.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 3515H |
| Category | Sub-Compact tractor |
| Type | 4x4 |
| Operating weight | 3,014lb |
Engine
| Make | Kukje |
|---|---|
| Model | A1700N4 |
| Power | 35hp |
| Cylinders | 3 |
| Displacement | 104.6ci |
| Bore | 3.46in |
| Stroke | 3.7in |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 |
|---|---|
| Drive | 4x4 |
| Steering | Power |
| Cab | Open (ROPS) |
Dimensions
| Length | 118in |
|---|---|
| Width | 57in |
| Height | 94in |
| Operating weight | 3,014lb |
Head to head
3515H vs. Sub-Compact median
How the Branson 3515H compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 35 hp | 26.9 hp | +30% | 66th |
| Engine Displacement | 105 ci | 91.4 ci | +14% | 61st |
| Cylinders | 3 | 3 | at median | 50th |
| Operating Weight | 3,014 lb | 2,700 lb | +12% | 57th |
| Length | 118 in | 113 in | +4% | 57th |
| Width | 57 in | 50.7 in | +12% | 66th |
| Height | 94 in | 78.4 in | +20% | 84th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 3510 HST | 35 hp | — | — | Compare → |
| Branson 3510i | 35 hp | 3,756 lb | — | Compare → |
| Branson 3515CH | 35 hp | 3,664 lb | — | Compare → |
| Branson 3515R | 35 hp | 3,014 lb | — | Compare → |
| Branson 3520CX | 35 hp | 4,442 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
| Allis Chalmers WD | 34.63 hp | — | 1948–1953 | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
Branson siblings
Explore
Similar-spec models
Gallery

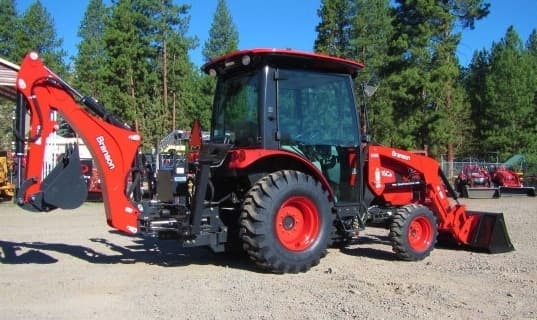

Branson 3515H photos
FAQ
Common questions
How powerful is the Branson 3515H?
The Branson 3515H has an engine power output of 35 hp. It is powered by a 3-cylinder engine displacing 104.6 ci.
What is the working weight of the Branson 3515H?
The operating weight of the Branson 3515H is approximately 3,014 lb.
What type of transmission does the Branson 3515H have?
The Branson 3515H uses a Hydrostatic transmission.
What routine service does the Branson 3515H need?
Regular maintenance for the Branson 3515H includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
