Sub-CompactPerformance profile
Branson 5220R
The Branson 5220R is a versatile tractor designed for various farming tasks. It features a hydrostatic power steering system, making it easy to control and maneuver. The tractor is equipped with a Syncro Shuttle transmission, offering 12 forward and 12 reverse gears. This gives farmers plenty of options for different speeds and tasks. Under the hood, the 5220R boasts a Kukje A2300T3-R engine. This 4-cylinder, turbocharged diesel engine is liquid-cooled and has 8 valves. It produces 55 horsepower at 2600 RPM, providing ample power for most farm jobs. The engine has a displacement of 139.5 cubic inches, which is average for its class. The tractor's compact size, measuring 130 inches long, 64 inches wide, and 98 inches tall, makes it suitable for working in tight spaces. With an operating weight of 4123 pounds, it's sturdy enough for tough jobs while still being relatively light.
ManufacturerBransonPower55 hpEngine4-cylTransSyncro Shuttle
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 55hp
- Operating Weight
- 4,123 lb
- Transmission
- Syncro Shuttle
At a glance
How the 5220R compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
55 hp · 94th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 5220R ranks at the 94th percentile for engine power among recorded sub-compact tractors.
Overview
About the Branson 5220R
The Branson 5220R is a versatile tractor designed for various farming tasks. It features a hydrostatic power steering system, making it easy to control and maneuver. The tractor is equipped with a Syncro Shuttle transmission, offering 12 forward and 12 reverse gears. This gives farmers plenty of options for different speeds and tasks. Under the hood, the 5220R boasts a Kukje A2300T3-R engine. This 4-cylinder, turbocharged diesel engine is liquid-cooled and has 8 valves. It produces 55 horsepower at 2600 RPM, providing ample power for most farm jobs. The engine has a displacement of 139.5 cubic inches, which is average for its class. The tractor's compact size, measuring 130 inches long, 64 inches wide, and 98 inches tall, makes it suitable for working in tight spaces. With an operating weight of 4123 pounds, it's sturdy enough for tough jobs while still being relatively light.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 5220R |
| Category | Sub-Compact tractor |
| Operating weight | 4,123lb |
Engine
| Make | Kukje |
|---|---|
| Model | A2300T3-R |
| Power | 55hp |
| Cylinders | 4 |
| Displacement | 139.5ci |
| Bore | 3.47in |
| Stroke | 3.7in |
Transmission
| Type | Syncro Shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Steering | Hydrostatic Power |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 130in |
|---|---|
| Width | 64in |
| Height | 98in |
| Operating weight | 4,123lb |
Head to head
5220R vs. Sub-Compact median
How the Branson 5220R compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 55 hp | 26.9 hp | +105% | 94th |
| Engine Displacement | 140 ci | 91.4 ci | +53% | 78th |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 4,123 lb | 2,700 lb | +53% | 82nd |
| Length | 130 in | 113 in | +15% | 79th |
| Width | 64 in | 50.7 in | +26% | 83rd |
| Height | 98 in | 78.4 in | +25% | 96th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 5220C | 55 hp | 4,123 lb | — | Compare → |
| Branson 5220CH | 55 hp | 4,442 lb | — | Compare → |
| Branson 5220H | 55 hp | 4,118 lb | — | Compare → |
| Branson 5520CH | 55 hp | 4,349 lb | — | Compare → |
| Branson 5520R | 55 hp | 3,836 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Apollo 554 | 55 hp | 6,239 lb | — | Compare → |
| Ascot Universal 550 | 55 hp | 4,600 lb | — | Compare → |
| Barreiros 5000 | 55 hp | 5,030 lb | — | Compare → |
| Barreiros 5000 VL | 55 hp | 4,080 lb | — | Compare → |
| Belarus 405 | 55 hp | 7,056 lb | — | Compare → |
Explore
Branson siblings
Explore
Similar-spec models

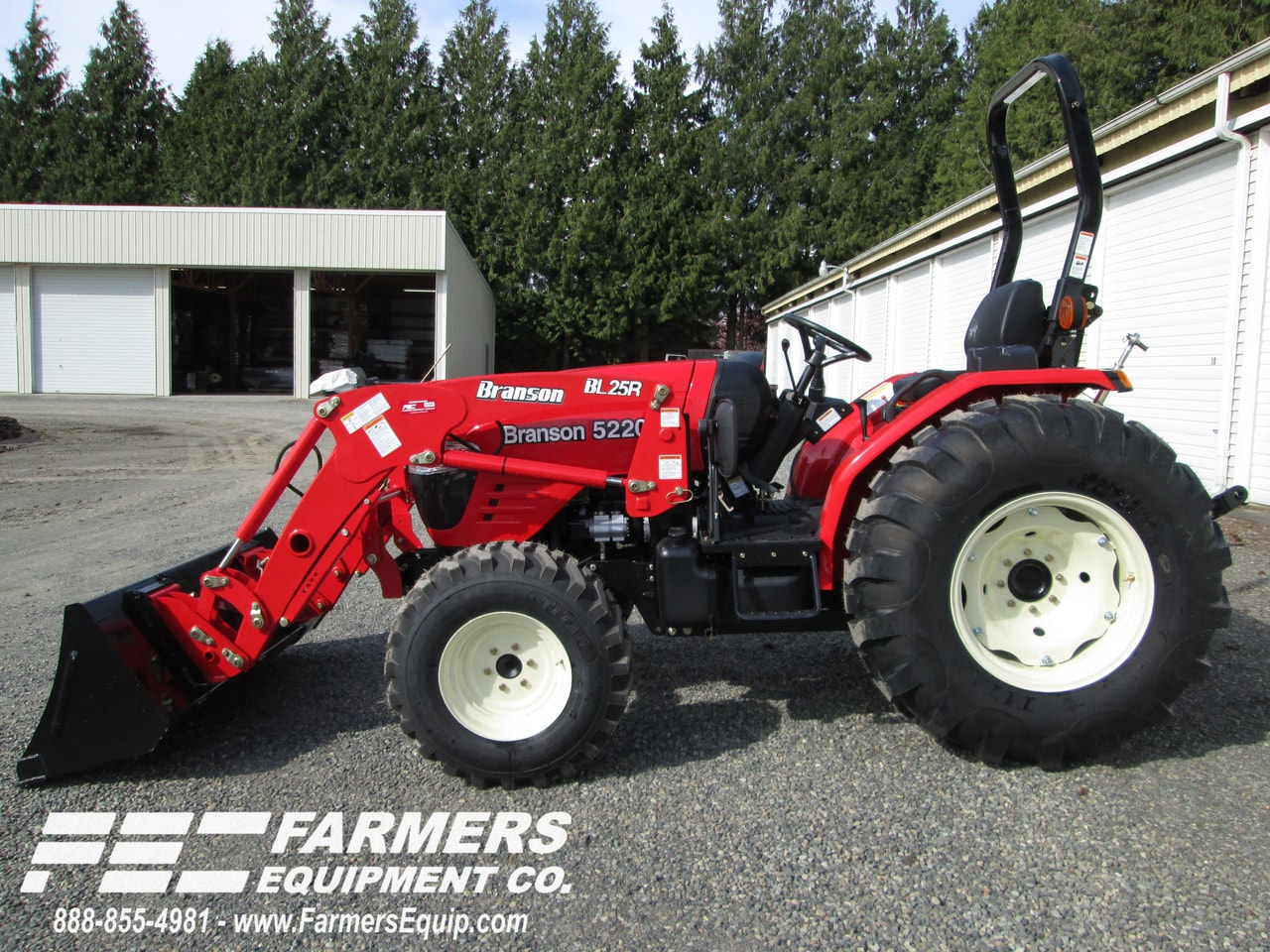

Gallery
Branson 5220R photos
FAQ
Common questions
How much horsepower does the Branson 5220R have?
The Branson 5220R produces 55 hp from its 4-cylinder engine. Engine displacement is 139.5 ci.
How much does the Branson 5220R weigh?
The Branson 5220R weighs about 4,123 lb in operating condition.
What transmission is in the Branson 5220R?
Transmission on the Branson 5220R is Syncro Shuttle, with 12 forward speeds.
What type of hydraulic system does the Branson 5220R use?
Hydraulics on the Branson 5220R are Open Center.
What maintenance does the Branson 5220R require?
Like any tractor, the Branson 5220R needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
