UtilityPerformance profile
CaseIH Farmall 120M
The CaseIH Farmall 120M is a powerful tractor designed for farmers who need a reliable workhorse. It features a 120 hp engine made by FPT, which is liquid-cooled and runs on diesel fuel. The engine has 4 cylinders and uses turbocharging with an intercooler to boost its performance. This tractor can handle tough jobs with ease. The Farmall 120M comes with a partial power shift transmission, giving drivers 16 forward and 16 reverse gears. This wide range of gears helps farmers work efficiently in different conditions. The tractor also has a rear PTO (Power Take-Off) with 540 and 1000 rpm options, making it versatile for various attachments. With its electric starter, the Farmall 120M is easy to get going, even on cold mornings.
ManufacturerCaseIHPower120 hpEngine4-cylTransPartial power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 120hp
- Transmission
- Partial power shift
At a glance
How the Farmall 120M compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
120 hp · 89th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall 120M ranks at the 89th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 120M
The CaseIH Farmall 120M is a powerful tractor designed for farmers who need a reliable workhorse. It features a 120 hp engine made by FPT, which is liquid-cooled and runs on diesel fuel. The engine has 4 cylinders and uses turbocharging with an intercooler to boost its performance. This tractor can handle tough jobs with ease. The Farmall 120M comes with a partial power shift transmission, giving drivers 16 forward and 16 reverse gears. This wide range of gears helps farmers work efficiently in different conditions. The tractor also has a rear PTO (Power Take-Off) with 540 and 1000 rpm options, making it versatile for various attachments. With its electric starter, the Farmall 120M is easy to get going, even on cold mornings.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 120M |
| Category | Utility tractor |
Engine
| Make | FPT |
|---|---|
| Power | 120hp |
| Cylinders | 4 |
| Displacement | 207ci |
| Bore | 3.9in |
| Stroke | 4.33in |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Power take-off
| Rear PTO | Rear 540/1000 |
|---|
Head to head
Farmall 120M vs. Utility median
How the CaseIH Farmall 120M compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 120 hp | 55 hp | +118% | 89th |
| Engine Displacement | 207 ci | 183 ci | +13% | 57th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,941–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Farmall 115A | 120 hp | 7,304 lb | — | Compare → |
| CaseIH Farmall 120A | 118 hp | 8,091 lb | — | Compare → |
| CaseIH Farmall 120U | 117 hp | 10,031 lb | — | Compare → |
| CaseIH Luxxum 120 | 117 hp | 9,678 lb | — | Compare → |
| CaseIH MXU115 Value | 116 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agrinar T-120 | 119.3 hp | 4,580 lb | — | Compare → |
| Allis Chalmers 8010 | 119 hp | 12,630 lb | 1982–1985 | Compare → |
| Allis Chalmers D21 Series II | 121 hp | 9,502 lb | 1965–1969 | Compare → |
| AGCO RT115 | 121.4 hp | 12,900 lb | — | Compare → |
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

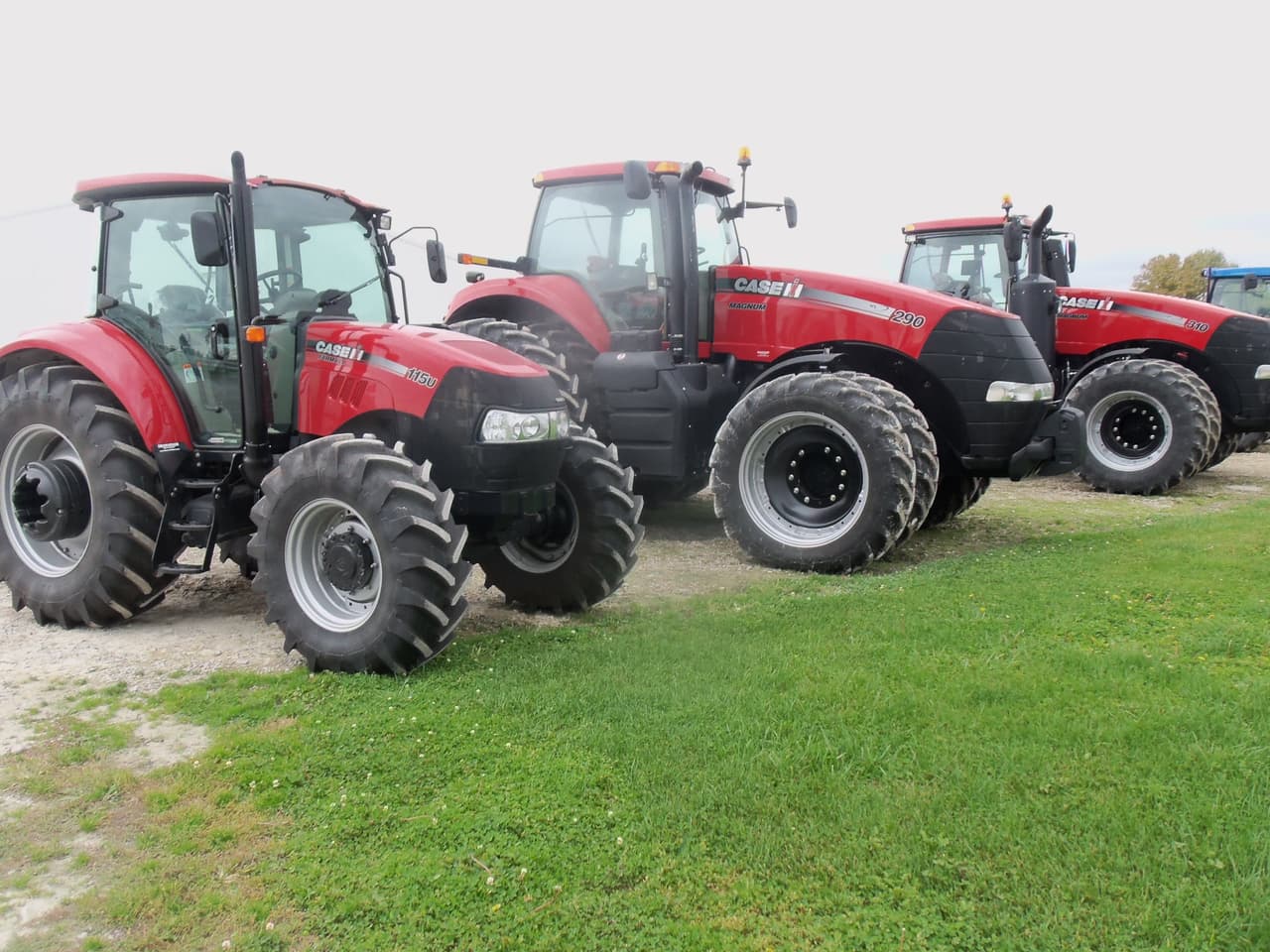

CaseIH Farmall 120M photos
FAQ
Common questions
What is the engine power output of the CaseIH Farmall 120M?
Rated engine output for the CaseIH Farmall 120M is 120 hp, delivered by a 4-cylinder engine. The engine displaces 207 ci.
Which transmission does the CaseIH Farmall 120M use?
The CaseIH Farmall 120M is equipped with a Partial power shift transmission with 16 forward gears.
How do I maintain a CaseIH Farmall 120M?
Routine service for the CaseIH Farmall 120M covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
