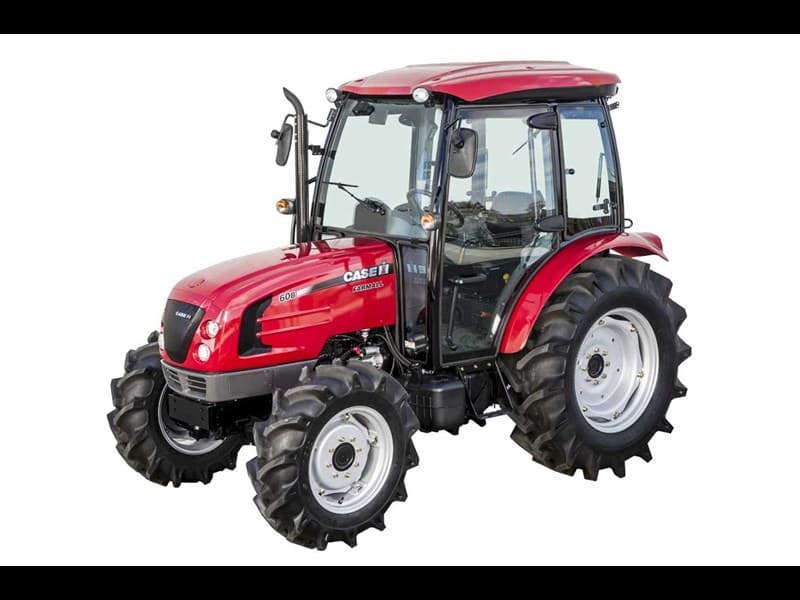

CaseIH Farmall 60
The CaseIH Farmall 60 is a tough and reliable agricultural tractor. It's built for farmers who need a strong helper in their fields. This tractor has a 4-wheel drive system, which means it can handle rough ground easily. It uses a hydrostatic power steering system, making it easy to turn and control. Under the hood, the Farmall 60 has a Shibaura diesel engine. This engine is turbocharged, giving it extra power when needed. It has 4 cylinders and can produce 60 horsepower. The tractor has big tires - 8x16 in the front and 14.9x24 in the back - perfect for farm work. It's not too big, measuring 137.3 inches long, 64.4 inches wide, and 95 inches tall. The Farmall 60 weighs 4,209 pounds, which helps it stay stable during tough jobs. It also has a roll-over protection system (ROPS) to keep the driver safe.
ManufacturerCaseIHPower60 hpEngine4-cylTransSynchro Shuttle
Quick specs
- Category
- Agricultural
- Engine Power Output
- 60hp
- Operating Weight
- 4,209 lb
- Transmission
- Synchro Shuttle
At a glance
How the Farmall 60 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
60 hp · 13th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The Farmall 60 ranks at the 13th percentile for engine power among recorded agricultural tractors.
Overview
About the CaseIH Farmall 60
The CaseIH Farmall 60 is a tough and reliable agricultural tractor. It's built for farmers who need a strong helper in their fields. This tractor has a 4-wheel drive system, which means it can handle rough ground easily. It uses a hydrostatic power steering system, making it easy to turn and control. Under the hood, the Farmall 60 has a Shibaura diesel engine. This engine is turbocharged, giving it extra power when needed. It has 4 cylinders and can produce 60 horsepower. The tractor has big tires - 8x16 in the front and 14.9x24 in the back - perfect for farm work. It's not too big, measuring 137.3 inches long, 64.4 inches wide, and 95 inches tall. The Farmall 60 weighs 4,209 pounds, which helps it stay stable during tough jobs. It also has a roll-over protection system (ROPS) to keep the driver safe.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 60 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 4,209lb |
Engine
| Make | Shibaura |
|---|---|
| Model | ISM-N844L-T |
| Power | 60hp |
| Cylinders | 4 |
| Displacement | 135.2ci |
| Bore | 3.31in |
| Stroke | 3.94in |
Transmission
| Type | Synchro Shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
| Cab | ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 137.3in |
|---|---|
| Width | 64.4in |
| Height | 95in |
| Operating weight | 4,209lb |
Tires
| Front | 8x16 |
|---|---|
| Rear | 14.9x24 |
Head to head
Farmall 60 vs. Agricultural median
How the CaseIH Farmall 60 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 60 hp | 110 hp | -45% | 13th |
| Engine Displacement | 135 ci | 336 ci | -60% | 4th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 12 | 16 | -25% | 33rd |
| Operating Weight | 4,209 lb | 10,914 lb | -61% | 7th |
| Length | 137 in | 173 in | -21% | 18th |
| Width | 64.4 in | 79.5 in | -19% | 28th |
| Height | 95 in | 111 in | -14% | 24th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Farmall 55 | 55 hp | 4,209 lb | — | Compare → |
| CaseIH Farmall 80N | 74 hp | 5,300 lb | — | Compare → |
| CaseIH Farmall 80V | 74 hp | 5,108 lb | — | Compare → |
| CaseIH JX1075N | 75 hp | 5,027 lb | — | Compare → |
| CaseIH Farmall 75N | 76 hp | 5,027 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros R-500 B | 60 hp | — | — | Compare → |
| AGCO GT55A | 58.89 hp | 6,400 lb | — | Compare → |
| Allis Chalmers 6070 | 58.35 hp | 7,460 lb | — | Compare → |
| Belarus 406 | 58 hp | 7,056 lb | — | Compare → |
| Belarus 426 | 58 hp | 7,188 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH Farmall 60 photos
FAQ
Common questions
How powerful is the CaseIH Farmall 60?
The CaseIH Farmall 60 has an engine power output of 60 hp. It is powered by a 4-cylinder engine displacing 135.2 ci.
What hydraulics does the CaseIH Farmall 60 have?
The CaseIH Farmall 60 uses an Open Center hydraulic system.
What are the factory tire sizes for the CaseIH Farmall 60?
The CaseIH Farmall 60 comes with 8x16 front tires and 14.9x24 rear tires.
What is the working weight of the CaseIH Farmall 60?
The operating weight of the CaseIH Farmall 60 is approximately 4,209 lb.
What type of transmission does the CaseIH Farmall 60 have?
The CaseIH Farmall 60 uses a Synchro Shuttle transmission offering 12 forward gears.
What routine service does the CaseIH Farmall 60 need?
Regular maintenance for the CaseIH Farmall 60 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
