UtilityPerformance profile
CaseIH Farmall 70A
The CaseIH Farmall 70A is a utility tractor built for versatile farm work. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a mechanical shuttle transmission with 8 forward and 8 reverse gears, giving drivers good control over speed and power. Under the hood, the Farmall 70A has a 3-cylinder diesel engine made by FPT. This engine is turbocharged and liquid-cooled, producing 70 horsepower at 2600 RPM. The engine's power output is above average compared to similar tractors. It has a displacement of 135.9 cubic inches, which is below average for its class. The tractor weighs 4442 pounds, which is about average for utility tractors. It comes with a category II rear hitch and an open center hydraulic system, useful for attaching various farm implements. The Farmall 70A also features agricultural tires, an electric starter, and a high-pressure common rail fuel system for efficient operation.
ManufacturerCaseIHPower70 hpEngine3-cylTransMechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 70hp
- Operating Weight
- 4,442 lb
- Transmission
- Mechanical shuttle
At a glance
How the Farmall 70A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
70 hp · 63rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall 70A ranks at the 63rd percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 70A
The CaseIH Farmall 70A is a utility tractor built for versatile farm work. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a mechanical shuttle transmission with 8 forward and 8 reverse gears, giving drivers good control over speed and power. Under the hood, the Farmall 70A has a 3-cylinder diesel engine made by FPT. This engine is turbocharged and liquid-cooled, producing 70 horsepower at 2600 RPM. The engine's power output is above average compared to similar tractors. It has a displacement of 135.9 cubic inches, which is below average for its class. The tractor weighs 4442 pounds, which is about average for utility tractors. It comes with a category II rear hitch and an open center hydraulic system, useful for attaching various farm implements. The Farmall 70A also features agricultural tires, an electric starter, and a high-pressure common rail fuel system for efficient operation.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 70A |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 4,442lb |
Engine
| Make | FPT |
|---|---|
| Power | 70hp |
| Cylinders | 3 |
| Displacement | 135.9ci |
| Bore | 3.7in |
| Stroke | 4.21in |
Transmission
| Type | Mechanical shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Height | 92.7in |
|---|---|
| Operating weight | 4,442lb |
Head to head
Farmall 70A vs. Utility median
How the CaseIH Farmall 70A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 70 hp | 55 hp | +27% | 63rd |
| Engine Displacement | 136 ci | 183 ci | -26% | 35th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 4,442 lb | 5,303 lb | -16% | 43rd |
| Height | 92.7 in | 94.1 in | -1% | 47th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH C70 | 70 hp | 5,941 lb | — | Compare → |
| CaseIH JX1070C | 70 hp | 6,085 lb | — | Compare → |
| CaseIH 685XL | 69 hp | 6,700 lb | — | Compare → |
| CaseIH JX1070U | 71 hp | 7,826 lb | — | Compare → |
| CaseIH 4210 | 72 hp | 6,327 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro SRX 8400 | 70 hp | 4,486 lb | — | Compare → |
| Barreiros 7000 | 70 hp | 5,335 lb | — | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
| Antonio Carraro SX 7800S | 71 hp | 4,773 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

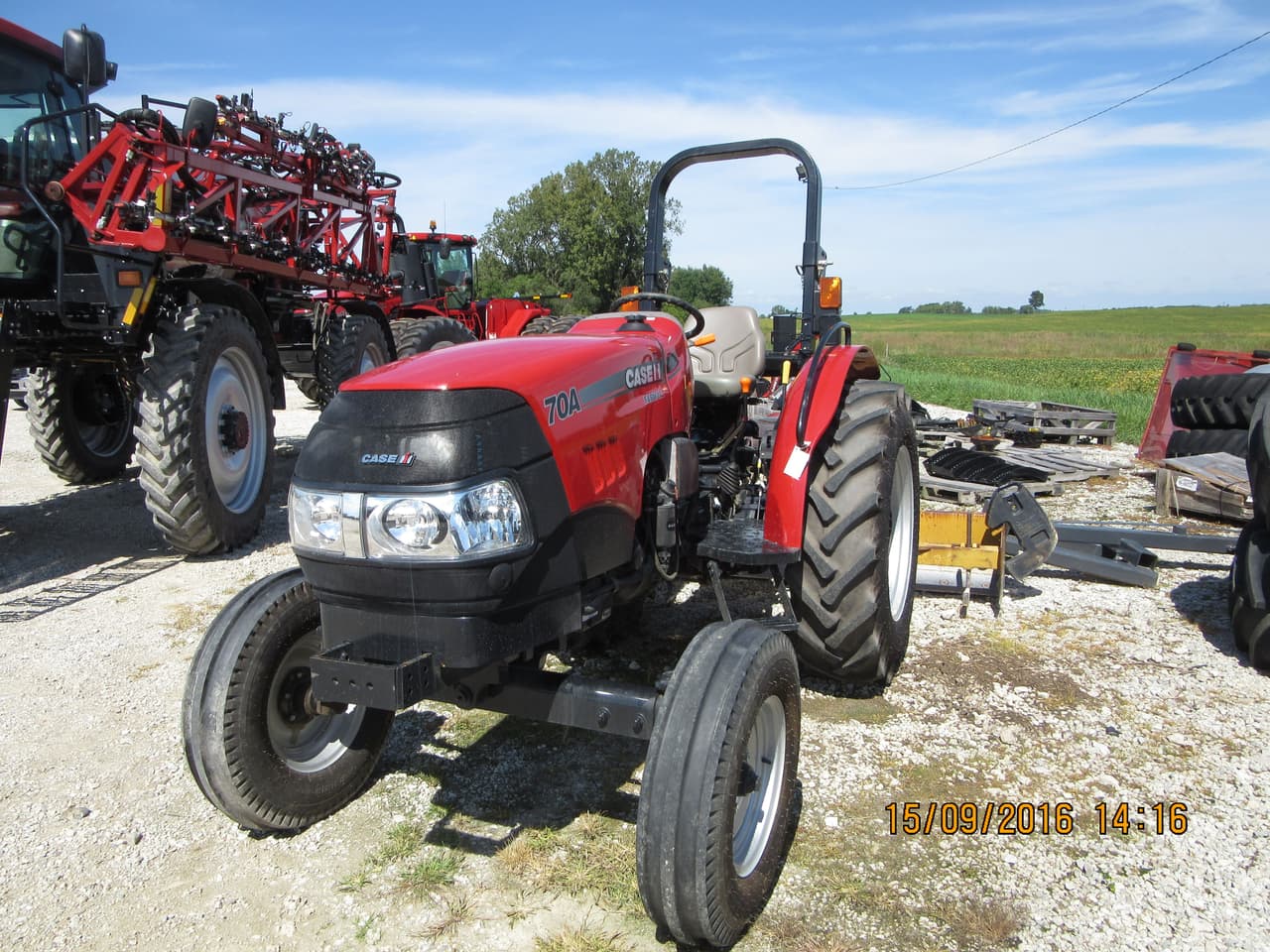

CaseIH Farmall 70A photos
FAQ
Common questions
How much horsepower does the CaseIH Farmall 70A have?
The CaseIH Farmall 70A produces 70 hp from its 3-cylinder engine. Engine displacement is 135.9 ci.
How much does the CaseIH Farmall 70A weigh?
The CaseIH Farmall 70A weighs about 4,442 lb in operating condition.
What transmission is in the CaseIH Farmall 70A?
Transmission on the CaseIH Farmall 70A is Mechanical shuttle, with 8 forward speeds.
What hydraulics does the CaseIH Farmall 70A have?
The CaseIH Farmall 70A uses an Open Center hydraulic system.
What three-point hitch category does the CaseIH Farmall 70A use?
The CaseIH Farmall 70A has a Category II three-point hitch.
What maintenance does the CaseIH Farmall 70A require?
Like any tractor, the CaseIH Farmall 70A needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
