Row CropPerformance profile

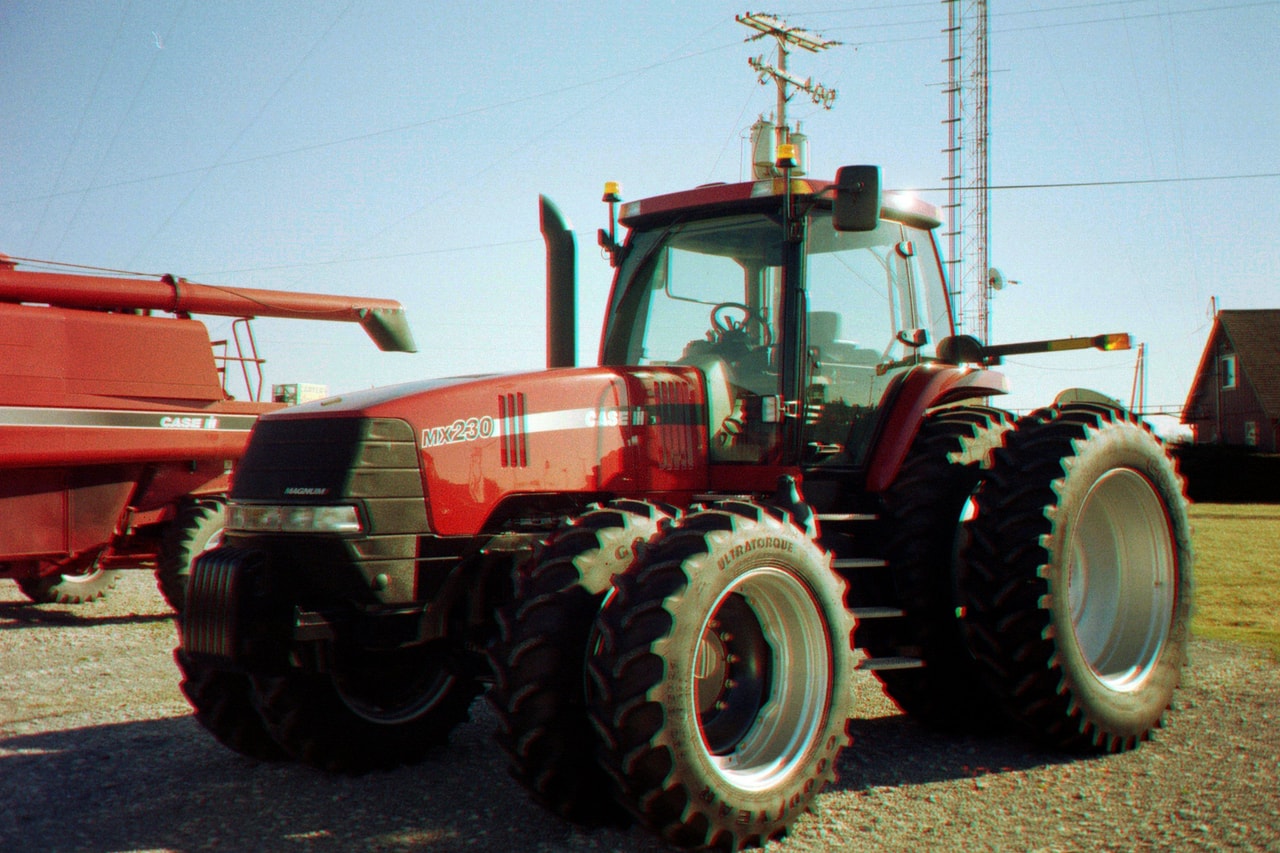

CaseIH MX230 Magnum
The CaseIH MX230 Magnum is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that makes 234 horsepower. This engine is turbocharged and intercooled, which helps it work hard in tough conditions. The tractor has a 2-wheel drive system and uses hydrostatic power steering for easy control. One of the best things about this tractor is its transmission. It has 18 forward gears and 4 reverse gears, giving farmers lots of options for different jobs. The MX230 Magnum is also quite heavy, weighing 20,100 pounds. This weight helps it grip the ground well. The tractor has a closed center hydraulic system, which is good for running equipment. It comes with a comfortable cab for the driver and uses an electric starter. The engine size and power of this tractor are above average compared to other tractors, making it a strong choice for big farms.
ManufacturerCaseIHPower234 hpEngine6-cylTransFull Power Shift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 234hp
- Operating Weight
- 20,100 lb
- Transmission
- Full Power Shift
At a glance
How the MX230 Magnum compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
234 hp · 84th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The MX230 Magnum ranks at the 84th percentile for engine power among recorded row crop tractors.
Overview
About the CaseIH MX230 Magnum
The CaseIH MX230 Magnum is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that makes 234 horsepower. This engine is turbocharged and intercooled, which helps it work hard in tough conditions. The tractor has a 2-wheel drive system and uses hydrostatic power steering for easy control. One of the best things about this tractor is its transmission. It has 18 forward gears and 4 reverse gears, giving farmers lots of options for different jobs. The MX230 Magnum is also quite heavy, weighing 20,100 pounds. This weight helps it grip the ground well. The tractor has a closed center hydraulic system, which is good for running equipment. It comes with a comfortable cab for the driver and uses an electric starter. The engine size and power of this tractor are above average compared to other tractors, making it a strong choice for big farms.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | MX230 Magnum |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 20,100lb |
Engine
| Make | CDC |
|---|---|
| Power | 234hp |
| Cylinders | 6 |
| Displacement | 504.5ci |
| Bore | 4.49in |
| Stroke | 5.32in |
Transmission
| Type | Full Power Shift |
|---|---|
| Forward gears | 18 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
| Cab | Cab |
Hydraulics
| Type | Closed Center Pressure Flow Compensated with Parallel Priority |
|---|
Dimensions
| Height | 124.6in |
|---|---|
| Operating weight | 20,100lb |
Capacities
| Cooling system | 6gal |
|---|
Head to head
MX230 Magnum vs. Row Crop median
How the CaseIH MX230 Magnum compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 234 hp | 138 hp | +70% | 84th |
| Engine Displacement | 505 ci | 391 ci | +29% | 87th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 18 | 16 | +13% | 61st |
| Operating Weight | 20,100 lb | 12,307 lb | +63% | 84th |
| Height | 125 in | 114 in | +10% | 84th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,140–1,417 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Magnum 235 | 235 hp | 27,180 lb | — | Compare → |
| CaseIH Puma 230 | 231 hp | 19,800 lb | — | Compare → |
| CaseIH Magnum 240 | 240 hp | 22,305 lb | — | Compare → |
| CaseIH Puma 240 | 240 hp | 16,800 lb | — | Compare → |
| CaseIH 8950 | 225 hp | 18,340 lb | 1997–1998 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Challenger MT595D | 233.9 hp | 19,310 lb | — | Compare → |
| AGCO DT200 | 235 hp | 19,700 lb | 2002–2004 | Compare → |
| AGCO DT200A | 235 hp | 19,136 lb | 2005–2008 | Compare → |
| Belarus 7010 | 235 hp | — | — | Compare → |
| Challenger MT645B | 235 hp | 19,595 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH MX230 Magnum photos
FAQ
Common questions
How much horsepower does the CaseIH MX230 Magnum have?
The CaseIH MX230 Magnum produces 234 hp from its 6-cylinder engine. Engine displacement is 504.5 ci.
What hydraulics does the CaseIH MX230 Magnum have?
The CaseIH MX230 Magnum uses a Closed Center Pressure Flow Compensated with Parallel Priority hydraulic system.
What three-point hitch category does the CaseIH MX230 Magnum use?
The CaseIH MX230 Magnum has a Category III/IIIN three-point hitch.
How much does the CaseIH MX230 Magnum weigh?
The CaseIH MX230 Magnum weighs about 20,100 lb in operating condition.
What transmission is in the CaseIH MX230 Magnum?
Transmission on the CaseIH MX230 Magnum is Full Power Shift, with 18 forward speeds.
What maintenance does the CaseIH MX230 Magnum require?
Like any tractor, the CaseIH MX230 Magnum needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
