Caterpillar 5-Ton
The Caterpillar 5-Ton tractor is a powerful machine built for heavy-duty work. It has a gasoline engine with four cylinders and 425 cubic inches of displacement. This engine is liquid-cooled and runs at 1050 RPM, making it strong and reliable for tough jobs. This tractor is big and sturdy. It's 124 inches long, 63 inches wide, and 64 inches tall. The 5-Ton weighs 9400 pounds, which helps it stay stable during work. It has a gear transmission with three forward gears and one reverse gear, giving the driver good control. The coolant system holds 30 quarts, helping keep the engine running smoothly in hot conditions. Caterpillar, a well-known maker of heavy machinery, designed this tractor to handle challenging farm and construction tasks.
ManufacturerCaterpillarEngine4-cylTransGear
Quick specs
- Category
- Industrial
- Operating Weight
- 9,400 lb
- Transmission
- Gear
Overview
About the Caterpillar 5-Ton
The Caterpillar 5-Ton tractor is a powerful machine built for heavy-duty work. It has a gasoline engine with four cylinders and 425 cubic inches of displacement. This engine is liquid-cooled and runs at 1050 RPM, making it strong and reliable for tough jobs. This tractor is big and sturdy. It's 124 inches long, 63 inches wide, and 64 inches tall. The 5-Ton weighs 9400 pounds, which helps it stay stable during work. It has a gear transmission with three forward gears and one reverse gear, giving the driver good control. The coolant system holds 30 quarts, helping keep the engine running smoothly in hot conditions. Caterpillar, a well-known maker of heavy machinery, designed this tractor to handle challenging farm and construction tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Caterpillar |
|---|---|
| Model | 5-Ton |
| Category | Industrial tractor |
| Operating weight | 9,400lb |
Engine
| Make | Caterpillar |
|---|---|
| Cylinders | 4 |
| Displacement | 425ci |
| Bore | 4.75in |
| Stroke | 6in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Dimensions
| Length | 124in |
|---|---|
| Width | 63in |
| Height | 64in |
| Operating weight | 9,400lb |
Capacities
| Cooling system | 7.5gal |
|---|
Head to head
5-Ton vs. Industrial median
How the Caterpillar 5-Ton compares to other Industrial tractors
| Spec | This model | Industrial median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 425 ci | 284 ci | +50% | 63rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 3 | 5 | -40% | 11th |
| Operating Weight | 9,400 lb | 9,127 lb | +3% | 52nd |
| Length | 124 in | 125 in | -1% | 48th |
| Width | 63 in | 70.5 in | -11% | 32nd |
| Height | 64 in | 74.9 in | -15% | 25th |
Medians and percentiles are computed from the industrial tractors in our database with a recorded value for each spec (sample sizes 38–55 models).
Compare to tractors with similar specs
Commonly compared Caterpillar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Caterpillar 10-Ton | — | 20,000 lb | — | Compare → |
| Caterpillar D4 | — | 9,970 lb | — | Compare → |
| Caterpillar Diesel Fifty | — | — | — | Compare → |
| Caterpillar Diesel Forty | — | 15,642 lb | — | Compare → |
| Caterpillar Diesel Seventy-Five | — | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Caterpillar siblings
Explore
Similar-spec models
Gallery

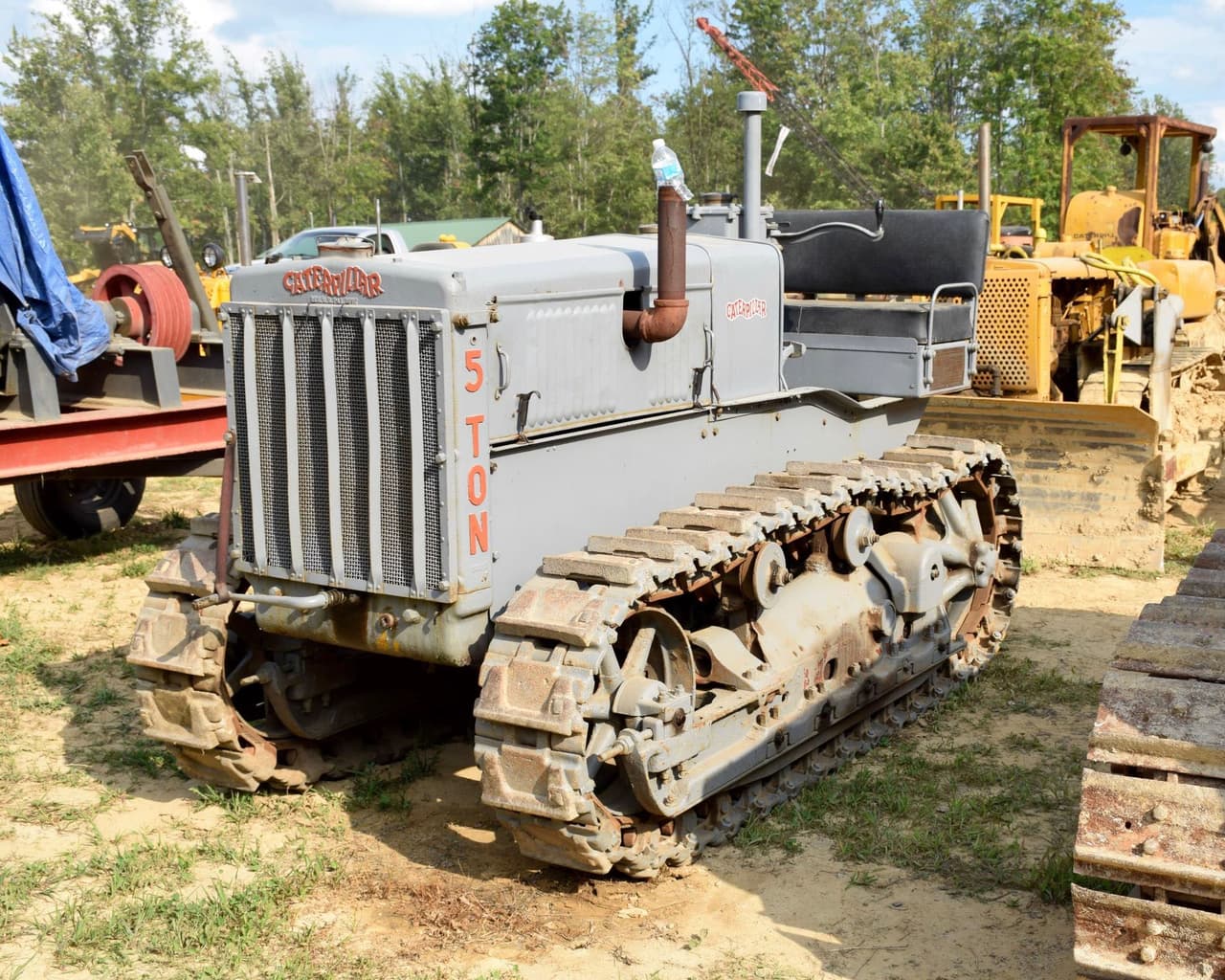

Caterpillar 5-Ton photos
FAQ
Common questions
How many cylinders does the Caterpillar 5-Ton have?
The Caterpillar 5-Ton runs a 4-cylinder engine with a displacement of 425 ci.
What transmission is in the Caterpillar 5-Ton?
Transmission on the Caterpillar 5-Ton is Gear, with 3 forward speeds.
How much does the Caterpillar 5-Ton weigh?
The Caterpillar 5-Ton weighs about 9,400 lb in operating condition.
What maintenance does the Caterpillar 5-Ton require?
Like any tractor, the Caterpillar 5-Ton needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
