Caterpillar D4E SA Special Application
The Caterpillar D4E SA Special Application is a powerful crawler tractor designed for both agricultural and general use. This machine is built to handle tough jobs with its sturdy crawler chassis and strong diesel engine. The D4E SA features a 3304 model engine made by Caterpillar, which has 4 cylinders and is turbocharged for extra power. It runs on diesel fuel and is liquid-cooled to keep it working well in different conditions. This tractor has a gear transmission with 5 forward and 5 reverse speeds, giving the operator good control over the machine's movement. The engine size is above average for its class, with a displacement of 425 ci. It operates at 2000 rpm, which is on the lower side, suggesting it's built for steady, strong performance rather than high-speed operation. The D4E SA is a hefty machine, weighing 19,050 lb, which puts it in the middle range for weight among similar tractors. It measures 132 inches in length, making it compact enough for various farm tasks while still being powerful.

Quick specs
- Category
- Crawler
- Operating Weight
- 19,050 lb
- Transmission
- Gear
Overview
About the Caterpillar D4E SA Special Application
The Caterpillar D4E SA Special Application is a powerful crawler tractor designed for both agricultural and general use. This machine is built to handle tough jobs with its sturdy crawler chassis and strong diesel engine. The D4E SA features a 3304 model engine made by Caterpillar, which has 4 cylinders and is turbocharged for extra power. It runs on diesel fuel and is liquid-cooled to keep it working well in different conditions. This tractor has a gear transmission with 5 forward and 5 reverse speeds, giving the operator good control over the machine's movement. The engine size is above average for its class, with a displacement of 425 ci. It operates at 2000 rpm, which is on the lower side, suggesting it's built for steady, strong performance rather than high-speed operation. The D4E SA is a hefty machine, weighing 19,050 lb, which puts it in the middle range for weight among similar tractors. It measures 132 inches in length, making it compact enough for various farm tasks while still being powerful.
Full specifications
Every recorded spec
General
| Manufacturer | Caterpillar |
|---|---|
| Model | D4E SA Special Application |
| Category | Crawler tractor |
| Type | Crawler |
| Operating weight | 19,050lb |
Engine
| Make | Caterpillar |
|---|---|
| Model | 3304 |
| Cylinders | 4 |
| Displacement | 425ci |
| Bore | 4.75in |
| Stroke | 6in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 5 |
Chassis & drive
| Chassis | Crawler |
|---|
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 132in |
|---|---|
| Operating weight | 19,050lb |
Capacities
| Cooling system | 8gal |
|---|
Head to head
D4E SA Special Application vs. Crawler median
How the Caterpillar D4E SA Special Application compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 425 ci | 468 ci | -9% | 47th |
| Cylinders | 4 | 6 | -33% | 33rd |
| Forward Gears | 5 | 10 | -50% | 25th |
| Operating Weight | 19,050 lb | 23,320 lb | -18% | 46th |
| Length | 132 in | 146 in | -10% | 40th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 144–192 models).
Compare to tractors with similar specs
- Caterpillar D4E SA Special Application vs. AGCO Corporation MT595B →
- Caterpillar D4E SA Special Application vs. John Deere 7820 155 PTO hp →
- Caterpillar D4E SA Special Application vs. International Harvester TD-14A →
- Caterpillar D4E SA Special Application vs. AGCO Corporation 8410 →
- Caterpillar D4E SA Special Application vs. International Harvester TD-14 →
Commonly compared Caterpillar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Caterpillar AG6 | 240 hp | 32,600 lb | — | Compare → |
| Caterpillar D2 | 32.9 hp | 7,419 lb | 1938–1957 | Compare → |
| Caterpillar D3B SA Special Application | — | 13,846 lb | — | Compare → |
| Caterpillar D3C SA Special Application | 110 hp | 14,750 lb | — | Compare → |
| Caterpillar D4D SA Special Application | 74 hp | 15,200 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Caterpillar siblings
Brand sibling
Brand siblingExplore
Similar-spec models
Similar specGallery

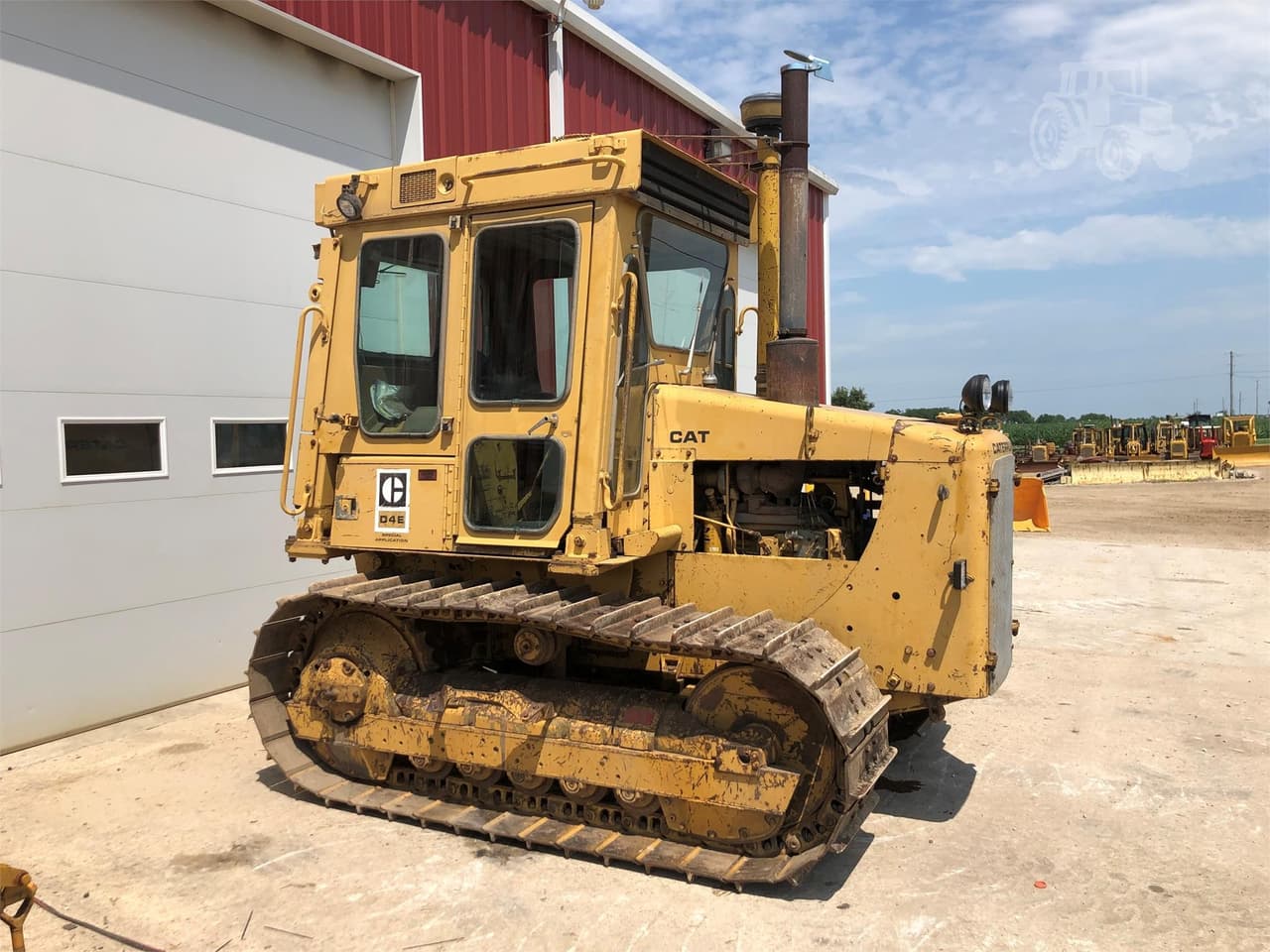

Caterpillar D4E SA Special Application photos





FAQ
Common questions
How many cylinders does the Caterpillar D4E SA Special Application have?
The Caterpillar D4E SA Special Application runs a 4-cylinder engine with a displacement of 425 ci.
How much does the Caterpillar D4E SA Special Application weigh?
The Caterpillar D4E SA Special Application weighs about 19,050 lb in operating condition.
What transmission is in the Caterpillar D4E SA Special Application?
Transmission on the Caterpillar D4E SA Special Application is Gear, with 5 forward speeds.
What type of hydraulic system does the Caterpillar D4E SA Special Application use?
Hydraulics on the Caterpillar D4E SA Special Application are Open center.
What maintenance does the Caterpillar D4E SA Special Application require?
Like any tractor, the Caterpillar D4E SA Special Application needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
