Crawler
Caterpillar D5B SA Special Application
The Caterpillar D5B SA Special Application is a powerful crawler tractor designed for both agricultural and heavy-duty tasks. This machine is built tough, with a sturdy crawler chassis that helps it handle rough terrain. It's powered by a Caterpillar 3306 diesel engine, which has 6 cylinders and a very high displacement of 638 ci. This engine is liquid-cooled and runs at 1900 rpm, which is below average for tractors in its class. The D5B SA is a big machine, measuring 153 inches long and 92.3 inches wide. It weighs in at 23,320 lb, which is about average for tractors of its type. The tractor has a gear transmission with 6 forward gears and 4 reverse gears, giving the operator good control over speed and power. It also features an open center hydraulic system and an electric starter for easy operation. With its size and power, this Caterpillar tractor is well-suited for tough jobs on farms and construction sites.
ManufacturerCaterpillarEngine6-cylTransGear
Quick specs
- Category
- Crawler
- Operating Weight
- 23,320 lb
- Transmission
- Gear
Overview
About the Caterpillar D5B SA Special Application
The Caterpillar D5B SA Special Application is a powerful crawler tractor designed for both agricultural and heavy-duty tasks. This machine is built tough, with a sturdy crawler chassis that helps it handle rough terrain. It's powered by a Caterpillar 3306 diesel engine, which has 6 cylinders and a very high displacement of 638 ci. This engine is liquid-cooled and runs at 1900 rpm, which is below average for tractors in its class. The D5B SA is a big machine, measuring 153 inches long and 92.3 inches wide. It weighs in at 23,320 lb, which is about average for tractors of its type. The tractor has a gear transmission with 6 forward gears and 4 reverse gears, giving the operator good control over speed and power. It also features an open center hydraulic system and an electric starter for easy operation. With its size and power, this Caterpillar tractor is well-suited for tough jobs on farms and construction sites.
Full specifications
Every recorded spec
General
| Manufacturer | Caterpillar |
|---|---|
| Model | D5B SA Special Application |
| Category | Crawler tractor |
| Type | Crawler |
| Operating weight | 23,320lb |
Engine
| Make | Caterpillar |
|---|---|
| Model | 3306 |
| Cylinders | 6 |
| Displacement | 638ci |
| Bore | 4.75in |
| Stroke | 6in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | Crawler |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 153in |
|---|---|
| Width | 92.3in |
| Operating weight | 23,320lb |
Capacities
| Cooling system | 9gal |
|---|
Head to head
D5B SA Special Application vs. Crawler median
How the Caterpillar D5B SA Special Application compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 638 ci | 468 ci | +36% | 70th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 6 | 10 | -40% | 34th |
| Operating Weight | 23,320 lb | 23,320 lb | at median | 50th |
| Length | 153 in | 146 in | +5% | 53rd |
| Width | 92.3 in | 79.5 in | +16% | 58th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 144–192 models).
Compare to tractors with similar specs
- Caterpillar D5B SA Special Application vs. Deutz-Allis DX8.30 →
- Caterpillar D5B SA Special Application vs. International Harvester TD-15 →
- Caterpillar D5B SA Special Application vs. Caterpillar D5 SA Special Application →
- Caterpillar D5B SA Special Application vs. Cletrac 80D →
- Caterpillar D5B SA Special Application vs. Allis Chalmers WS →
Commonly compared Caterpillar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Caterpillar AG6 | 240 hp | 32,600 lb | — | Compare → |
| Caterpillar D2 | 32.9 hp | 7,419 lb | 1938–1957 | Compare → |
| Caterpillar D3B SA Special Application | — | 13,846 lb | — | Compare → |
| Caterpillar D3C SA Special Application | 110 hp | 14,750 lb | — | Compare → |
| Caterpillar D4D SA Special Application | 74 hp | 15,200 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Caterpillar siblings
Brand sibling
Brand siblingExplore
Similar-spec models
Similar specGallery

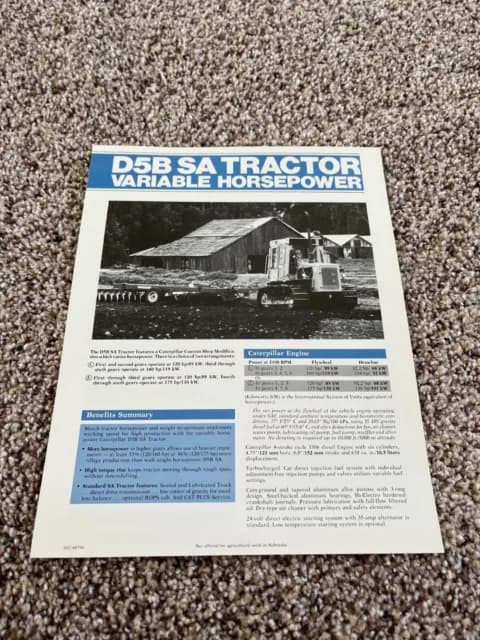

Caterpillar D5B SA Special Application photos
FAQ
Common questions
How many cylinders does the Caterpillar D5B SA Special Application have?
The Caterpillar D5B SA Special Application runs a 6-cylinder engine with a displacement of 638 ci.
How much does the Caterpillar D5B SA Special Application weigh?
The Caterpillar D5B SA Special Application weighs about 23,320 lb in operating condition.
What transmission is in the Caterpillar D5B SA Special Application?
Transmission on the Caterpillar D5B SA Special Application is Gear, with 6 forward speeds.
What type of hydraulic system does the Caterpillar D5B SA Special Application use?
Hydraulics on the Caterpillar D5B SA Special Application are Open Center.
What maintenance does the Caterpillar D5B SA Special Application require?
Like any tractor, the Caterpillar D5B SA Special Application needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
