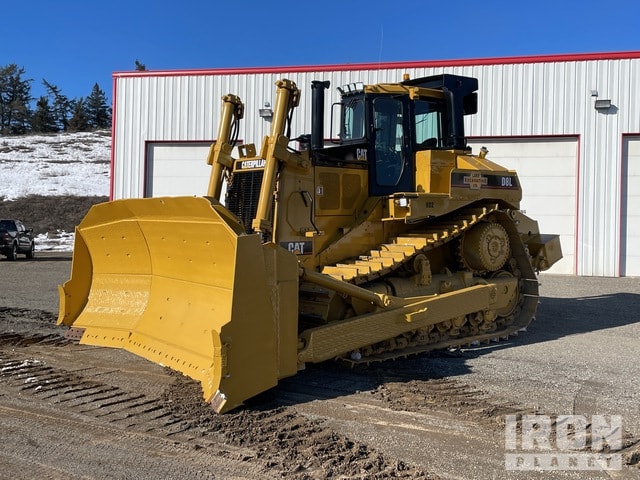

Caterpillar D8L SA Special Application
The Caterpillar D8L SA Special Application is a powerful crawler tractor designed for tough agricultural and construction jobs. This big machine has a Caterpillar 3408 engine with 8 cylinders arranged in a V shape. The engine is turbocharged and aftercooled, giving it extra power. It can produce 400 horsepower, which is above average for tractors in its class. This tractor is very heavy, weighing 80,820 pounds, making it one of the heaviest in its category. It's also quite large, measuring 215 inches long and 136 inches wide. The D8L SA has a power shift transmission with 3 forward and 3 reverse gears, allowing for smooth operation. It uses a load-sensing hydraulic system and has wet disc brakes for reliable stopping power. The engine is liquid-cooled and has a very high displacement of 1099 cubic inches, which means it can handle tough jobs with ease.

Key specifications
- Category
- Crawler
- Engine power
- 400hp
- Operating weight
- 80,820 lb
- Transmission
- Power Shift
Category comparison
D8L SA Special Application compared with its category
vs. Crawler medianDistribution
Engine Power (hp)
All recorded Crawler tractors
This model
The D8L SA Special Application ranks at the 76th percentile for engine power among recorded crawler tractors.
Overview
About the Caterpillar D8L SA Special Application
The Caterpillar D8L SA Special Application is a powerful crawler tractor designed for tough agricultural and construction jobs. This big machine has a Caterpillar 3408 engine with 8 cylinders arranged in a V shape. The engine is turbocharged and aftercooled, giving it extra power. It can produce 400 horsepower, which is above average for tractors in its class. This tractor is very heavy, weighing 80,820 pounds, making it one of the heaviest in its category. It's also quite large, measuring 215 inches long and 136 inches wide. The D8L SA has a power shift transmission with 3 forward and 3 reverse gears, allowing for smooth operation. It uses a load-sensing hydraulic system and has wet disc brakes for reliable stopping power. The engine is liquid-cooled and has a very high displacement of 1099 cubic inches, which means it can handle tough jobs with ease.
Full specifications
Recorded specifications
General
| Manufacturer | Caterpillar |
|---|---|
| Model | D8L SA Special Application |
| Category | Crawler tractor |
| Type | Crawler |
| Operating weight | 80,820lb(36,660 kg) |
Engine
| Make | Caterpillar |
|---|---|
| Model | 3408 |
| Power | 400hp(298.3 kW) |
| Cylinders | 8 |
| Displacement | 1,099ci(18.01 L) |
| Bore | 5.4in(137.2 mm) |
| Stroke | 6in(152.4 mm) |
Transmission
| Type | Power Shift |
|---|---|
| Forward gears | 3 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | Crawler |
|---|---|
| Brakes | Wet disc |
Hydraulics
| Type | Load sensing |
|---|
Dimensions
| Length | 215in(5,461 mm) |
|---|---|
| Width | 136in(3,454 mm) |
| Operating weight | 80,820lb(36,660 kg) |
Capacities
| Cooling system | 24.5gal(92.74 L) |
|---|
Closest alternatives
D8L SA Special Application compared with the nearest models by horsepower
Among crawler tractors, the Fendt 940 Vario MT and the Challenger MT845B are closest to the Caterpillar D8L SA Special Application in rated horsepower. The Fendt 940 Vario MT matches it on rated power and weighs 47,380 lb less, carrying 84 lb per horsepower against 202 lb. The Challenger MT845B makes 2.3 hp more and weighs 37,920 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the D8L SA Special Application has the highest weight per horsepower at 202 lb per hp.
| Spec | Caterpillar D8L SA Special Application | Fendt 940 Vario MT | Challenger MT845B |
|---|---|---|---|
| Engine power | 400 hp298.3 kW | 399.6 hp298 kW | 402.3 hp300 kW |
| Operating weight | 80,820 lb36,659 kg | 33,443 lb15,169 kg | 42,900 lb19,459 kg |
| Weight per hp | 202 lb/hp123 kg/kW | 84 lb/hp51 kg/kW | 107 lb/hp65 kg/kW |
| Displacement | 1,099 ci18.01 L | 598 ci9.8 L | 928 ci15.21 L |
| Cylinders | 8 | 7 | 6 |
| Transmission | Power Shift | continuously-variable transmission (CVT) | selective gear fixed ratio with full range operator controlled power shift |
Calculators
Calculators for the D8L SA Special Application
PTO power
About 332 to 360 PTO hp
Estimated from the 400 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 400 hp tractor can run
Maximum size is about a 47.5 ft rotary cutter or a 40.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
235 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
400 hp is 298.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Caterpillar D8L SA Special Application
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Caterpillar 3408Amazon
Fits the Caterpillar 3408 8-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Caterpillar 3408Amazon
Fits the Caterpillar 3408 8-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Caterpillar 3408Amazon
Fits the Caterpillar 3408 8-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Caterpillar 3408Amazon
Fits the Caterpillar 3408 8-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Caterpillar D8L SA Special Application service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Caterpillar D8L SA Special Application operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Caterpillar D8L SA Special Application service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
D8L SA Special Application vs. Crawler median
Caterpillar D8L SA Special Application compared with other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 400 hp | 200 hp | +100% | 76th |
| Engine Displacement | 1,099 ci | 468 ci | +135% | 97th |
| Cylinders | 8 | 6 | +33% | 98th |
| Forward Gears | 3 | 10 | -70% | 8th |
| Operating Weight | 80,820 lb | 23,320 lb | +247% | 99th |
| Length | 215 in | 146 in | +47% | 79th |
| Width | 136 in | 79.5 in | +71% | 93rd |
Medians and percentiles are calculated from the crawler tractors in the database that have a recorded value for each specification (sample size 142–192 models).
Same manufacturer
Other Caterpillar models
Other manufacturers
Models with similar horsepower
Gallery
Caterpillar D8L SA Special Application photos



FAQ
Frequently asked questions
How much horsepower does the Caterpillar D8L SA Special Application have?
The Caterpillar D8L SA Special Application produces 400 hp from its 8-cylinder engine. Engine displacement is 1,099 ci.
How much does the Caterpillar D8L SA Special Application weigh?
The Caterpillar D8L SA Special Application weighs about 80,820 lb in operating condition.
What transmission is in the Caterpillar D8L SA Special Application?
Transmission on the Caterpillar D8L SA Special Application is Power Shift, with 3 forward speeds.
What hydraulics does the Caterpillar D8L SA Special Application have?
The Caterpillar D8L SA Special Application uses a Load sensing hydraulic system.
What maintenance does the Caterpillar D8L SA Special Application require?
The Caterpillar D8L SA Special Application needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
