Agricultural
CBT 1090
The CBT 1090 is a powerful 2-wheel drive tractor built for tough farm work. It has a sturdy 4x2 chassis and uses hydrostatic power steering, making it easy to control. The tractor has a manual transmission with 6 forward gears and 2 reverse gears, giving drivers good control over speed and power. Under the hood, the CBT 1090 has a strong Perkins 6.34 diesel engine. This engine is liquid-cooled and has a displacement of 340 cubic inches, which is quite large for a tractor. It runs at 2000 RPM, providing plenty of power for heavy tasks. The tractor is big too, measuring 142.1 inches long, 95.3 inches wide, and 65 inches tall. It's a heavy machine, weighing 11,790 pounds, which helps it stay stable during tough jobs.
ManufacturerCBTTransManual
Quick specs
- Category
- Agricultural
- Operating Weight
- 11,790 lb
- Transmission
- Manual
Overview
About the CBT 1090
The CBT 1090 is a powerful 2-wheel drive tractor built for tough farm work. It has a sturdy 4x2 chassis and uses hydrostatic power steering, making it easy to control. The tractor has a manual transmission with 6 forward gears and 2 reverse gears, giving drivers good control over speed and power. Under the hood, the CBT 1090 has a strong Perkins 6.34 diesel engine. This engine is liquid-cooled and has a displacement of 340 cubic inches, which is quite large for a tractor. It runs at 2000 RPM, providing plenty of power for heavy tasks. The tractor is big too, measuring 142.1 inches long, 95.3 inches wide, and 65 inches tall. It's a heavy machine, weighing 11,790 pounds, which helps it stay stable during tough jobs.
Full specifications
Every recorded spec
General
| Manufacturer | CBT |
|---|---|
| Model | 1090 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 11,790lb |
Engine
| Make | Perkins |
|---|---|
| Model | 6.34 |
| Displacement | 340ci |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 142.1in |
|---|---|
| Width | 95.3in |
| Height | 65in |
| Operating weight | 11,790lb |
Head to head
1090 vs. Agricultural median
How the CBT 1090 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 340 ci | 336 ci | +1% | 50th |
| Forward Gears | 6 | 16 | -62% | 11th |
| Operating Weight | 11,790 lb | 10,914 lb | +8% | 54th |
| Length | 142 in | 173 in | -18% | 21st |
| Width | 95.3 in | 79.5 in | +20% | 74th |
| Height | 65 in | 111 in | -41% | 9th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,083 models).
Compare to tractors with similar specs
Commonly compared CBT tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
CBT siblings
Explore
Similar-spec models
Gallery

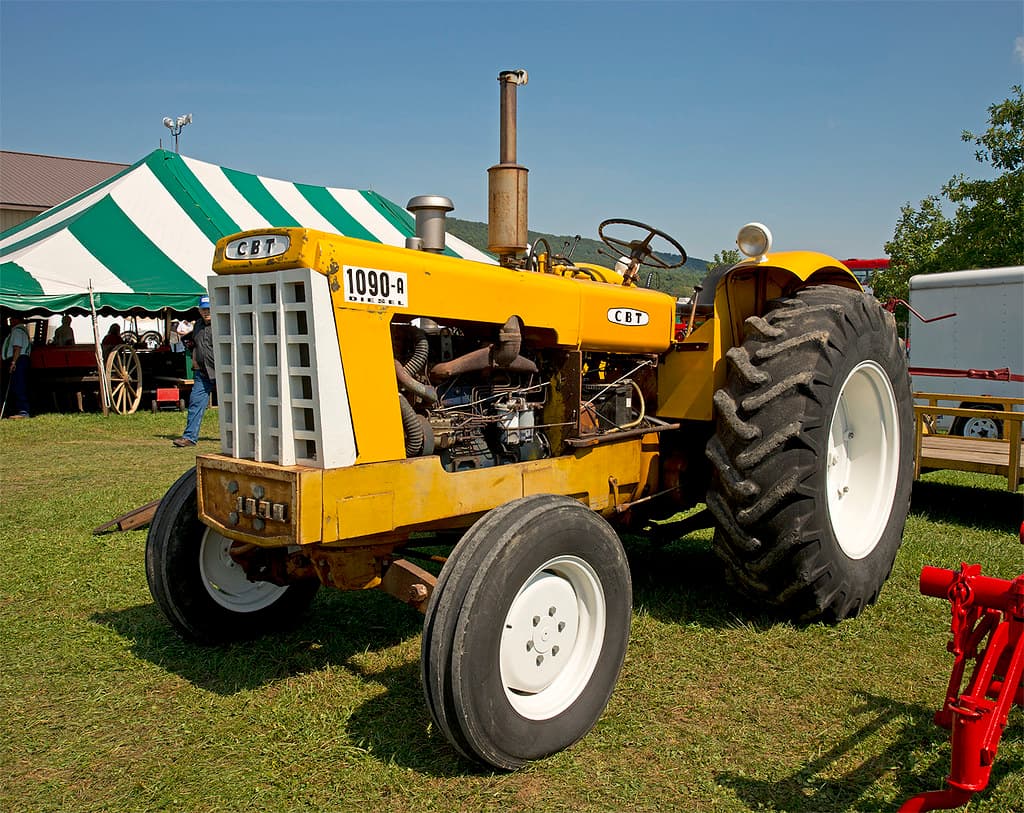

CBT 1090 photos
FAQ
Common questions
What is the operating weight of the CBT 1090?
In working trim, the CBT 1090 comes in at roughly 11,790 lb.
Which transmission does the CBT 1090 use?
The CBT 1090 is equipped with a Manual transmission with 6 forward gears.
How do I maintain a CBT 1090?
Routine service for the CBT 1090 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
