Brand siblingUtility
CBT 2500
The CBT 2500 is a powerful 2WD tractor designed for farm work. It has a 4x2 chassis and uses hydrostatic power steering for easy control. The tractor comes with a 6-speed transmission, giving farmers 6 forward gears and 2 reverse gears to choose from. Under the hood, the CBT 2500 features a Perkins 6-358 engine. This diesel engine has 6 cylinders and is liquid-cooled. It's naturally aspirated and has a displacement of 356.4 ci. The engine runs at 2200 rpm and has a coolant capacity of 23.25 qts. The tractor is equipped with an electric starter for easy ignition. It has ag tires on both front and rear, making it suitable for various farm tasks. The CBT 2500 is quite large, measuring 166.3 inches long, 101.6 inches wide, and 107.5 inches tall. It weighs 10,780 lb and features a category II hitch for attaching implements.
ManufacturerCBTEngine6-cylTrans6-speed
Quick specs
- Category
- Utility
- Operating Weight
- 10,780 lb
- Transmission
- 6-speed
Overview
About the CBT 2500
The CBT 2500 is a powerful 2WD tractor designed for farm work. It has a 4x2 chassis and uses hydrostatic power steering for easy control. The tractor comes with a 6-speed transmission, giving farmers 6 forward gears and 2 reverse gears to choose from. Under the hood, the CBT 2500 features a Perkins 6-358 engine. This diesel engine has 6 cylinders and is liquid-cooled. It's naturally aspirated and has a displacement of 356.4 ci. The engine runs at 2200 rpm and has a coolant capacity of 23.25 qts. The tractor is equipped with an electric starter for easy ignition. It has ag tires on both front and rear, making it suitable for various farm tasks. The CBT 2500 is quite large, measuring 166.3 inches long, 101.6 inches wide, and 107.5 inches tall. It weighs 10,780 lb and features a category II hitch for attaching implements.
Full specifications
Every recorded spec
General
| Manufacturer | CBT |
|---|---|
| Model | 2500 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 10,780lb |
Engine
| Make | Perkins |
|---|---|
| Model | 6-358 |
| Cylinders | 6 |
| Displacement | 356.4ci |
| Bore | 4.1in |
| Stroke | 4.5in |
Transmission
| Type | 6-speed |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 166.3in |
|---|---|
| Width | 101.6in |
| Height | 107.5in |
| Operating weight | 10,780lb |
Capacities
| Cooling system | 5.81gal |
|---|
Head to head
2500 vs. Utility median
How the CBT 2500 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 356 ci | 183 ci | +95% | 87th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 6 | 12 | -50% | 11th |
| Operating Weight | 10,780 lb | 5,303 lb | +103% | 88th |
| Length | 166 in | 137 in | +22% | 84th |
| Width | 102 in | 66 in | +54% | 97th |
| Height | 108 in | 94.1 in | +14% | 83rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared CBT tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
CBT siblings
Explore
Similar-spec models
Gallery

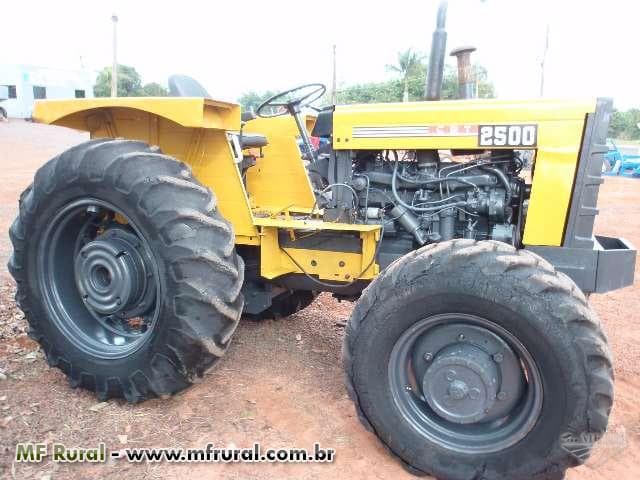

CBT 2500 photos
FAQ
Common questions
How many cylinders does the CBT 2500 have?
The CBT 2500 runs a 6-cylinder engine with a displacement of 356.4 ci.
Which transmission does the CBT 2500 use?
The CBT 2500 is equipped with a 6-speed transmission with 6 forward gears.
What hitch category is the CBT 2500?
The CBT 2500 uses a Category II hitch.
What is the operating weight of the CBT 2500?
In working trim, the CBT 2500 comes in at roughly 10,780 lb.
How do I maintain a CBT 2500?
Routine service for the CBT 2500 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
