Challenger MT297B
The Challenger MT297B is a versatile utility tractor built for various farm tasks. It has a strong 4-wheel drive system and power steering, making it easy to handle in different conditions. The tractor uses a PowerShuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for speed and power. Under the hood, the MT297B has a 4-cylinder Iseki diesel engine. The engine is liquid-cooled and naturally aspirated, producing 59.1 hp at 2600 rpm. This power output is above average compared to similar tractors. The tractor's three-point hitch can lift up to 3307 lb, which is very high for its class. It also has an open center hydraulic system for running attachments. The MT297B is compact, measuring 134.6 inches long, 69.7 inches wide, and 91.7 inches tall. It weighs 4078 lb, which is about average for utility tractors of this size.

Key specifications
- Category
- Utility
- Engine power
- 59hp
- Operating weight
- 4,078 lb
- Transmission
- PowerShuttle (Synchroshuttle)
Category comparison
MT297B compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The MT297B ranks at the 53rd percentile for engine power among recorded utility tractors.
Overview
About the Challenger MT297B
The Challenger MT297B is a versatile utility tractor built for various farm tasks. It has a strong 4-wheel drive system and power steering, making it easy to handle in different conditions. The tractor uses a PowerShuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for speed and power. Under the hood, the MT297B has a 4-cylinder Iseki diesel engine. The engine is liquid-cooled and naturally aspirated, producing 59.1 hp at 2600 rpm. This power output is above average compared to similar tractors. The tractor's three-point hitch can lift up to 3307 lb, which is very high for its class. It also has an open center hydraulic system for running attachments. The MT297B is compact, measuring 134.6 inches long, 69.7 inches wide, and 91.7 inches tall. It weighs 4078 lb, which is about average for utility tractors of this size.
Full specifications
Recorded specifications
General
| Manufacturer | Challenger |
|---|---|
| Model | MT297B |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 4,078lb(1,850 kg) |
Engine
| Make | Iseki |
|---|---|
| Power | 59.1hp(44.07 kW) |
| Cylinders | 4 |
| Displacement | 180ci(2.95 L) |
Transmission
| Type | PowerShuttle (Synchroshuttle) |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 134.6in(3,419 mm) |
|---|---|
| Width | 69.7in(1,770 mm) |
| Height | 91.7in(2,329 mm) |
| Operating weight | 4,078lb(1,850 kg) |
Closest alternatives
MT297B compared with the nearest models by horsepower
The closest utility models to the Challenger MT297B by rated horsepower are the Deutz-Fahr 4060E Keyline and the Massey Ferguson 1560. The Deutz-Fahr 4060E Keyline matches it on rated power and weighs 550 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Massey Ferguson 1560 matches it on rated power at almost the same operating weight. Of the 3 models, the MT297B has the lowest weight per horsepower at 69 lb per hp.
| Spec | Challenger MT297B | Deutz-Fahr 4060E Keyline | Massey Ferguson 1560 |
|---|---|---|---|
| Engine power | 59.1 hp44.1 kW | 59.1 hp44.1 kW | 59.1 hp44.1 kW |
| Operating weight | 4,078 lb1,850 kg | 4,630 lb2,100 kg | 4,078 lb1,850 kg |
| Weight per hp | 69 lb/hp42 kg/kW | 78 lb/hp48 kg/kW | 69 lb/hp42 kg/kW |
| Displacement | 180 ci2.95 L | 183.1 ci3 L | 180 ci2.95 L |
| Cylinders | 4 | 3 | 4 |
| Transmission | PowerShuttle (Synchroshuttle) | Gear, Partially synchronized | PowerShuttle |
| Drive | 4WD | 2WD | MFWD |
| Years built | - | 2018+ | 2005-2008 |
Calculators
Calculators for the MT297B
PTO power
About 49 to 53 PTO hp
Estimated from the 59.1 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 59.1 hp tractor can run
Maximum size is about a 7 ft rotary cutter or a 6 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
80 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
59.1 hp is 44.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Challenger MT297B
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the IsekiAmazon
Fits the Iseki 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the IsekiAmazon
Fits the Iseki 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the IsekiAmazon
Fits the Iseki 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the IsekiAmazon
Fits the Iseki 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Challenger MT297B service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Challenger MT297B operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.

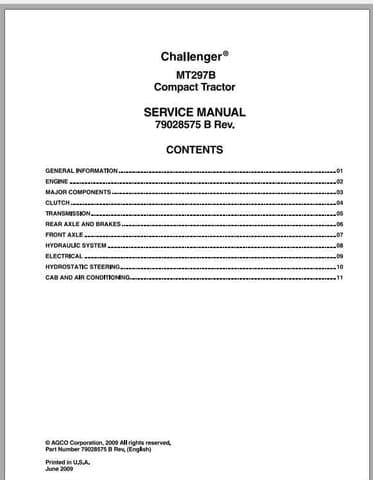

- Challenger MT297B service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
MT297B vs. Utility median
Challenger MT297B compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 59.1 hp | 55 hp | +7% | 53rd |
| Engine Displacement | 180 ci | 183 ci | -2% | 49th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 4,078 lb | 5,303 lb | -23% | 38th |
| Length | 135 in | 137 in | -1% | 47th |
| Width | 69.7 in | 66 in | +6% | 60th |
| Height | 91.7 in | 94.1 in | -3% | 45th |
| 3-Point Hitch Capacity | 3,307 lb | 3,197 lb | +3% | 53rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Challenger models
Other manufacturers
Models with similar horsepower
Gallery
Challenger MT297B photos




FAQ
Frequently asked questions
How powerful is the Challenger MT297B?
The Challenger MT297B has an engine power output of 59.1 hp. It is powered by a 4-cylinder engine displacing 180 ci.
What type of transmission does the Challenger MT297B have?
The Challenger MT297B uses a PowerShuttle (Synchroshuttle) transmission offering 12 forward gears.
What type of hydraulic system does the Challenger MT297B use?
Hydraulics on the Challenger MT297B are Open Center.
What hitch category is the Challenger MT297B?
The Challenger MT297B uses a Category I / II hitch with a lift capacity of 3,307 lb.
What is the working weight of the Challenger MT297B?
The operating weight of the Challenger MT297B is approximately 4,078 lb.
What routine service does the Challenger MT297B need?
Regular maintenance for the Challenger MT297B includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
