AgriculturalPerformance profile
Claas Ares 696
The Claas Ares 696 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong DPS engine with 6 cylinders and 146 horsepower. This engine uses a turbo to give it extra power. The tractor has a 32-speed transmission, which means it can go forward and backward in 32 different speeds. This helps the driver find just the right speed for any job. The Ares 696 is big and sturdy. It's about 15.5 feet long and 9.5 feet tall. It weighs a hefty 14,751 pounds, which helps it grip the ground well. The tractor has special farm tires on both the front and back to handle muddy fields. It also has power steering to make it easy to turn. With its strong engine and tough build, the Claas Ares 696 is ready to tackle all kinds of farm tasks.
ManufacturerClaasPower146 hpEngine6-cylTrans32-speed
Quick specs
- Category
- Agricultural
- Engine Power Output
- 146hp
- Operating Weight
- 14,751 lb
- Transmission
- 32-speed
At a glance
How the Ares 696 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
146 hp · 67th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The Ares 696 ranks at the 67th percentile for engine power among recorded agricultural tractors.
Overview
About the Claas Ares 696
The Claas Ares 696 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong DPS engine with 6 cylinders and 146 horsepower. This engine uses a turbo to give it extra power. The tractor has a 32-speed transmission, which means it can go forward and backward in 32 different speeds. This helps the driver find just the right speed for any job. The Ares 696 is big and sturdy. It's about 15.5 feet long and 9.5 feet tall. It weighs a hefty 14,751 pounds, which helps it grip the ground well. The tractor has special farm tires on both the front and back to handle muddy fields. It also has power steering to make it easy to turn. With its strong engine and tough build, the Claas Ares 696 is ready to tackle all kinds of farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Claas |
|---|---|
| Model | Ares 696 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 14,751lb |
Engine
| Make | DPS |
|---|---|
| Model | 6068 TRT |
| Power | 146hp |
| Cylinders | 6 |
| Displacement | 414.2ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | 32-speed |
|---|---|
| Forward gears | 32 |
| Reverse gears | 32 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 186.2in |
|---|---|
| Height | 114.6in |
| Operating weight | 14,751lb |
Head to head
Ares 696 vs. Agricultural median
How the Claas Ares 696 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 146 hp | 110 hp | +33% | 67th |
| Engine Displacement | 414 ci | 336 ci | +23% | 71st |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 32 | 16 | +100% | 91st |
| Operating Weight | 14,751 lb | 10,914 lb | +35% | 68th |
| Length | 186 in | 173 in | +8% | 66th |
| Height | 115 in | 111 in | +4% | 62nd |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Claas tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Claas Ares 656 | 132 hp | 13,451 lb | — | Compare → |
| Claas 816 Ares | 164 hp | 14,454 lb | — | Compare → |
| Claas Ares 616 | 115 hp | 12,370 lb | — | Compare → |
| Claas CELTIS 456 | 100.6 hp | 10,295.6 lb | — | Compare → |
| Claas Ares 836 | 205 hp | 14,884 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 1455 XL | 145 hp | 11,499 lb | — | Compare → |
| Allis Chalmers 8030 | 148 hp | 14,200 lb | 1982–1985 | Compare → |
| AGCO RT135 | 143.94 hp | 15,525 lb | — | Compare → |
| AGCO RT120 | 150 hp | 15,055 lb | — | Compare → |
| Belarus MTZ-142 | 150 hp | — | — | Compare → |
Explore
Claas siblings
Explore
Similar-spec models
Gallery

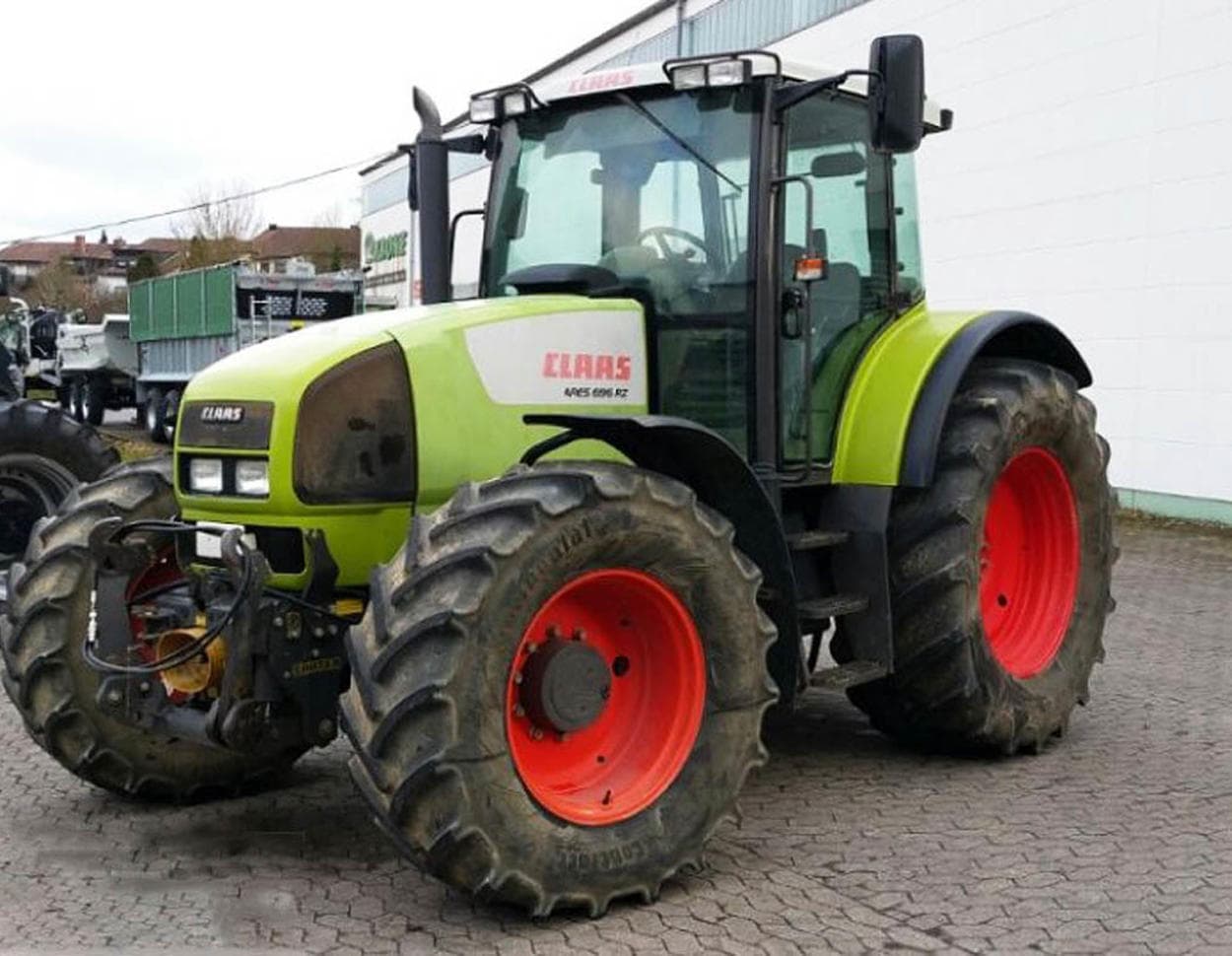

Claas Ares 696 photos
FAQ
Common questions
How much horsepower does the Claas Ares 696 have?
The Claas Ares 696 produces 146 hp from its 6-cylinder engine. Engine displacement is 414.2 ci.
How much does the Claas Ares 696 weigh?
The Claas Ares 696 weighs about 14,751 lb in operating condition.
What transmission is in the Claas Ares 696?
Transmission on the Claas Ares 696 is 32-speed, with 32 forward speeds.
What maintenance does the Claas Ares 696 require?
Like any tractor, the Claas Ares 696 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
