Claas Nectis 237
The Claas Nectis 237 is a compact 2WD tractor designed for various farming tasks. It features a 4x2 chassis and hydrostatic power steering, making it easy to maneuver in tight spaces. The tractor comes with a 12-speed transmission, offering 12 forward and 12 reverse gears for versatile operation. Under the hood, the Nectis 237 is powered by a NEF F4CE0354A engine. This 3-cylinder turbocharged engine has a displacement of 205.3 ci and produces 79 hp at 2300 rpm. The engine's bore and stroke measurements are 4.094 inches and 5.197 inches, respectively. The tractor rides on agricultural tires, with larger front tires measuring 28 inches in diameter and 13.6 inches wide, while the rear tires are 16 inches in diameter and 6.5 inches wide. With a length of 158.3 inches, a height of 92.5 inches, and an operating weight of 5777 lb, this Claas tractor is well-suited for small to medium-sized farms.

Key specifications
- Category
- Sub-Compact
- Engine power
- 79hp
- Operating weight
- 5,777 lb
- Transmission
- 12-speed transmission
Category comparison
Nectis 237 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
This model
The Nectis 237 ranks at the 99th percentile for engine power among recorded sub-compact tractors.
Overview
About the Claas Nectis 237
The Claas Nectis 237 is a compact 2WD tractor designed for various farming tasks. It features a 4x2 chassis and hydrostatic power steering, making it easy to maneuver in tight spaces. The tractor comes with a 12-speed transmission, offering 12 forward and 12 reverse gears for versatile operation. Under the hood, the Nectis 237 is powered by a NEF F4CE0354A engine. This 3-cylinder turbocharged engine has a displacement of 205.3 ci and produces 79 hp at 2300 rpm. The engine's bore and stroke measurements are 4.094 inches and 5.197 inches, respectively. The tractor rides on agricultural tires, with larger front tires measuring 28 inches in diameter and 13.6 inches wide, while the rear tires are 16 inches in diameter and 6.5 inches wide. With a length of 158.3 inches, a height of 92.5 inches, and an operating weight of 5777 lb, this Claas tractor is well-suited for small to medium-sized farms.
Full specifications
Recorded specifications
General
| Manufacturer | Claas |
|---|---|
| Model | Nectis 237 |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Operating weight | 5,777lb(2,620 kg) |
Engine
| Make | NEF |
|---|---|
| Model | F4CE0354A |
| Power | 79hp(58.91 kW) |
| Cylinders | 3 |
| Displacement | 205.3ci(3.36 L) |
| Bore | 4.09in(104 mm) |
| Stroke | 5.2in(132 mm) |
Transmission
| Type | 12-speed transmission |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 158.3in(4,021 mm) |
|---|---|
| Height | 92.5in(2,350 mm) |
| Operating weight | 5,777lb(2,620 kg) |
Closest alternatives
Nectis 237 compared with the nearest models by horsepower
The closest sub-compact models to the Claas Nectis 237 by rated horsepower are the CaseIH JX75 Maxxima and the New Holland T503 NC. The CaseIH JX75 Maxxima is rated 4 hp lower and weighs 430 lb more, at 83 lb per horsepower against 73 lb. The New Holland T503 NC makes 6 hp more.
| Spec | Claas Nectis 237 | CaseIH JX75 Maxxima | New Holland T503 NC |
|---|---|---|---|
| Engine power | 79 hp58.9 kW | 75 hp55.9 kW | 85 hp63.4 kW |
| Operating weight | 5,777 lb2,620 kg | 6,205 lb2,815 kg | - |
| Weight per hp | 73 lb/hp44 kg/kW | 83 lb/hp50 kg/kW | - |
| Displacement | 205.3 ci3.36 L | 220.5 ci3.61 L | 274.7 ci4.5 L |
| Cylinders | 3 | 4 | 4 |
| Transmission | 12-speed transmission | Mechanical Shuttle | 12x12 w/ mechanical shuttle |
Calculators
Calculators for the Nectis 237
PTO power
About 66 to 71 PTO hp
Estimated from the 79 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 79 hp tractor can run
Maximum size is about a 9.5 ft rotary cutter or a 8 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
85 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
79 hp is 58.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Claas Nectis 237
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the NEF F4CE0354AAmazon
Fits the NEF F4CE0354A 3-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the NEF F4CE0354AAmazon
Fits the NEF F4CE0354A 3-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the NEF F4CE0354AAmazon
Fits the NEF F4CE0354A 3-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the NEF F4CE0354AAmazon
Fits the NEF F4CE0354A 3-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Claas Nectis 237 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Claas Nectis 237 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Claas Nectis 237 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Nectis 237 vs. Sub-Compact median
Claas Nectis 237 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 79 hp | 26.9 hp | +194% | 99th |
| Engine Displacement | 205 ci | 91.4 ci | +125% | 97th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 5,777 lb | 2,700 lb | +114% | 96th |
| Length | 158 in | 113 in | +40% | 99th |
| Height | 92.5 in | 78.4 in | +18% | 80th |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 616–816 models).
Same manufacturer
Other Claas models
Other manufacturers
Models with similar horsepower
Gallery

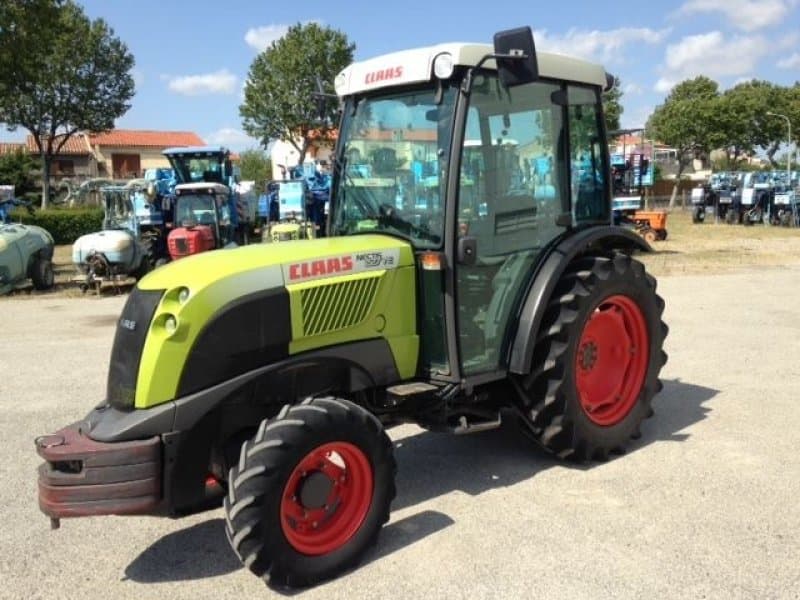

Claas Nectis 237 photos






FAQ
Frequently asked questions
What is the engine power output of the Claas Nectis 237?
Rated engine output for the Claas Nectis 237 is 79 hp, delivered by a 3-cylinder engine. The engine displaces 205.3 ci.
What is the operating weight of the Claas Nectis 237?
The Claas Nectis 237 has an operating weight of about 5,777 lb.
Which transmission does the Claas Nectis 237 use?
The Claas Nectis 237 is equipped with a 12-speed transmission transmission with 12 forward gears.
How do I maintain a Claas Nectis 237?
Routine service for the Claas Nectis 237 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
