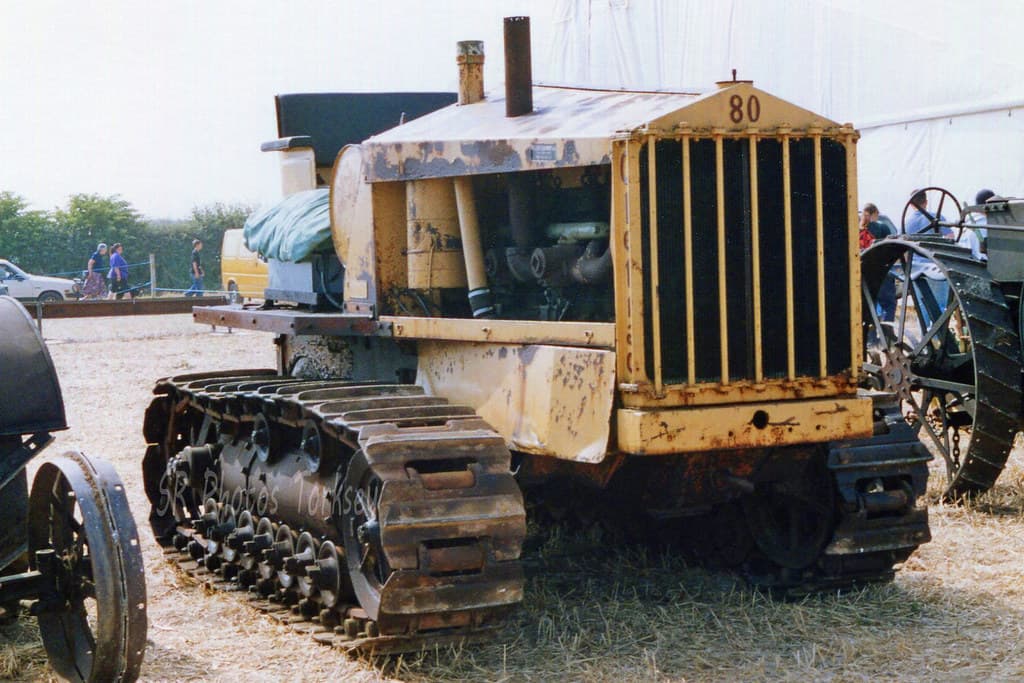

Cletrac 80
The Cletrac 80 is a powerful crawler tractor built for agricultural work. It's a big machine, measuring 180 inches long, 100 inches wide, and 88 inches tall. This tractor uses tracks instead of wheels, which helps it move well on different types of ground. Under the hood, the Cletrac 80 has a strong Hercules HXE engine. This engine is liquid-cooled and runs on gasoline. It has 6 cylinders and a very high engine displacement of 935 cubic inches. The engine runs at 1120 rpm, which is lower than average for tractors. This tractor has a gear transmission with 3 forward gears and 1 reverse gear, giving the driver good control over its speed and power.

Key specifications
- Category
- Crawler
- Transmission
- Gear
Overview
About the Cletrac 80
The Cletrac 80 is a powerful crawler tractor built for agricultural work. It's a big machine, measuring 180 inches long, 100 inches wide, and 88 inches tall. This tractor uses tracks instead of wheels, which helps it move well on different types of ground. Under the hood, the Cletrac 80 has a strong Hercules HXE engine. This engine is liquid-cooled and runs on gasoline. It has 6 cylinders and a very high engine displacement of 935 cubic inches. The engine runs at 1120 rpm, which is lower than average for tractors. This tractor has a gear transmission with 3 forward gears and 1 reverse gear, giving the driver good control over its speed and power.
Full specifications
Recorded specifications
General
| Manufacturer | Cletrac |
|---|---|
| Model | 80 |
| Category | Crawler tractor |
| Type | Crawler |
Engine
| Make | Hercules |
|---|---|
| Model | HXE |
| Cylinders | 6 |
| Displacement | 935ci(15.32 L) |
| Bore | 5.75in(146 mm) |
| Stroke | 6in(152.4 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | Crawler |
|---|
Dimensions
| Length | 180in(4,572 mm) |
|---|---|
| Width | 100in(2,540 mm) |
| Height | 88in(2,235 mm) |
Parts and manuals
Parts and manuals for the Cletrac 80
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Hercules HXEAmazon
Fits the Hercules HXE 6-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Hercules HXEAmazon
Fits the Hercules HXE 6-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Hercules HXEAmazon
Fits the Hercules HXE 6-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Hercules HXEAmazon
Fits the Hercules HXE 6-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Cletrac 80 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Cletrac 80 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Cletrac 80 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
80 vs. Crawler median
Cletrac 80 compared with other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 935 ci | 468 ci | +100% | 94th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 3 | 10 | -70% | 8th |
| Length | 180 in | 146 in | +23% | 62nd |
| Width | 100 in | 79.5 in | +26% | 68th |
| Height | 88 in | 90.6 in | -3% | 48th |
Medians and percentiles are calculated from the crawler tractors in the database that have a recorded value for each specification (sample size 134–192 models).
Same manufacturer
Other Cletrac models
Other manufacturers
Models with similar horsepower
Gallery
Cletrac 80 photos




FAQ
Frequently asked questions
How many cylinders does the Cletrac 80 have?
The Cletrac 80 runs a 6-cylinder engine with a displacement of 935 ci.
What transmission is in the Cletrac 80?
Transmission on the Cletrac 80 is Gear, with 3 forward speeds.
What maintenance does the Cletrac 80 require?
The Cletrac 80 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
