Agricultural

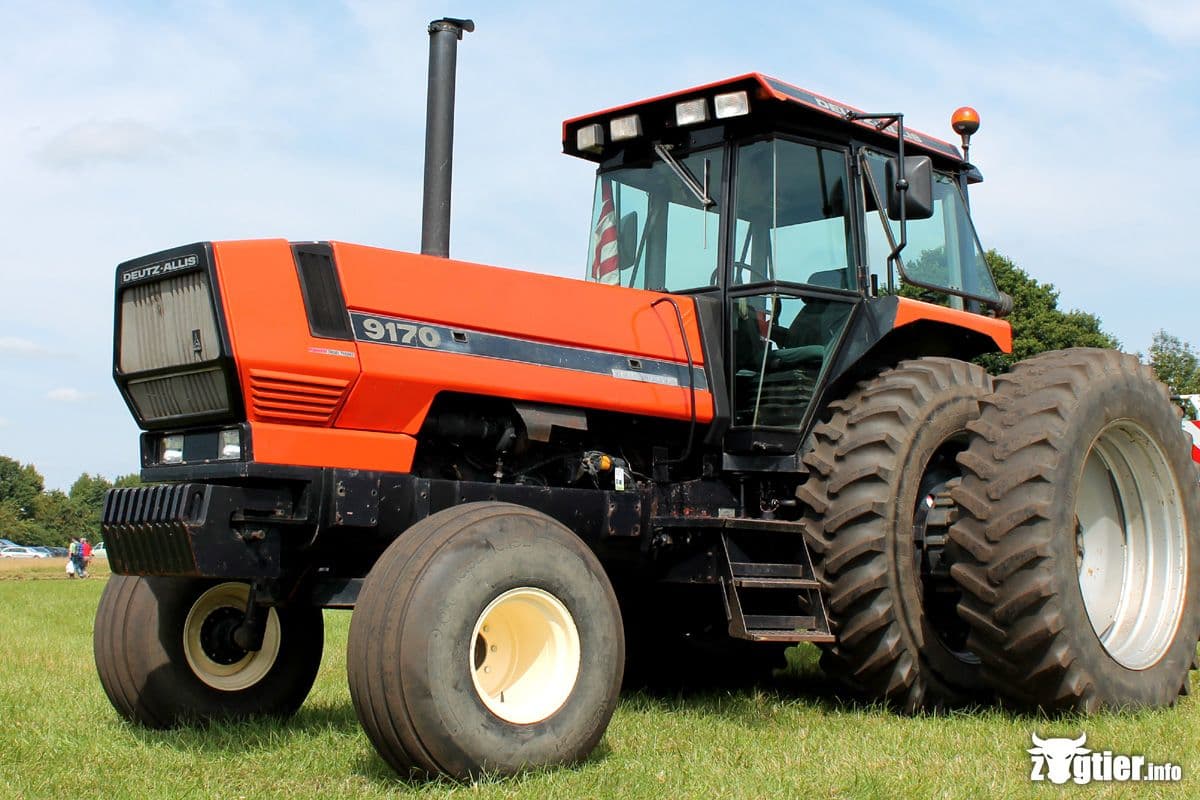

Deutz-Allis 9170
The Deutz-Allis 9170 is a powerful two-wheel drive tractor built for serious farm work. It has a strong Deutz engine with 6 cylinders and 584 cubic inches of displacement. This air-cooled diesel engine is turbocharged for extra power and runs at 2300 RPM. The tractor uses a 12-volt electrical system and has an electric starter for easy operation. This tractor is big and sturdy, measuring 96 inches wide and 122 inches tall. It weighs 17,465 pounds, making it a heavy-duty machine. The 9170 has a partial power shift transmission with 18 forward gears and 6 reverse gears, giving the driver lots of options for different tasks. It has large agricultural tires, with 18.4R38 tires in the back for good traction. The hydraulic system is a closed center type, and the hitch is category III/II, suitable for attaching various implements. With its size and features, the Deutz-Allis 9170 is well-equipped for handling tough jobs on large farms.
ManufacturerDeutz-AllisEngine6-cylTransPartial Power Shift
Quick specs
- Category
- Agricultural
- Operating Weight
- 17,465 lb
- Transmission
- Partial Power Shift
Overview
About the Deutz-Allis 9170
The Deutz-Allis 9170 is a powerful two-wheel drive tractor built for serious farm work. It has a strong Deutz engine with 6 cylinders and 584 cubic inches of displacement. This air-cooled diesel engine is turbocharged for extra power and runs at 2300 RPM. The tractor uses a 12-volt electrical system and has an electric starter for easy operation. This tractor is big and sturdy, measuring 96 inches wide and 122 inches tall. It weighs 17,465 pounds, making it a heavy-duty machine. The 9170 has a partial power shift transmission with 18 forward gears and 6 reverse gears, giving the driver lots of options for different tasks. It has large agricultural tires, with 18.4R38 tires in the back for good traction. The hydraulic system is a closed center type, and the hitch is category III/II, suitable for attaching various implements. With its size and features, the Deutz-Allis 9170 is well-equipped for handling tough jobs on large farms.
Full specifications
Every recorded spec
General
| Manufacturer | Deutz-Allis |
|---|---|
| Model | 9170 |
| Category | Agricultural tractor |
| Type | 2WD |
| Operating weight | 17,465lb |
Engine
| Make | Deutz |
|---|---|
| Model | BF6L513R |
| Cylinders | 6 |
| Displacement | 584ci |
| Bore | 4.92in |
| Stroke | 5.12in |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 18 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 2WD |
|---|---|
| Drive | Two-wheel Drive |
Hydraulics
| Type | Closed Center |
|---|
Dimensions
| Width | 96in |
|---|---|
| Height | 122in |
| Operating weight | 17,465lb |
Head to head
9170 vs. Agricultural median
How the Deutz-Allis 9170 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 584 ci | 336 ci | +74% | 92nd |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 18 | 16 | +13% | 68th |
| Operating Weight | 17,465 lb | 10,914 lb | +60% | 77th |
| Width | 96 in | 79.5 in | +21% | 76th |
| Height | 122 in | 111 in | +10% | 79th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared Deutz-Allis tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Deutz-Allis 7085 | — | 9,900 lb | — | Compare → |
| Deutz-Allis 9150 | — | 13,520 lb | — | Compare → |
| Deutz-Allis 9190 | 174.32 hp | 18,700 lb | — | Compare → |
| Deutz-Allis DX7.10 | — | 12,000 lb | — | Compare → |
| Deutz-Allis 5215 | 18 hp | 1,518 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Deutz-Allis siblings
Explore
Similar-spec models
Gallery

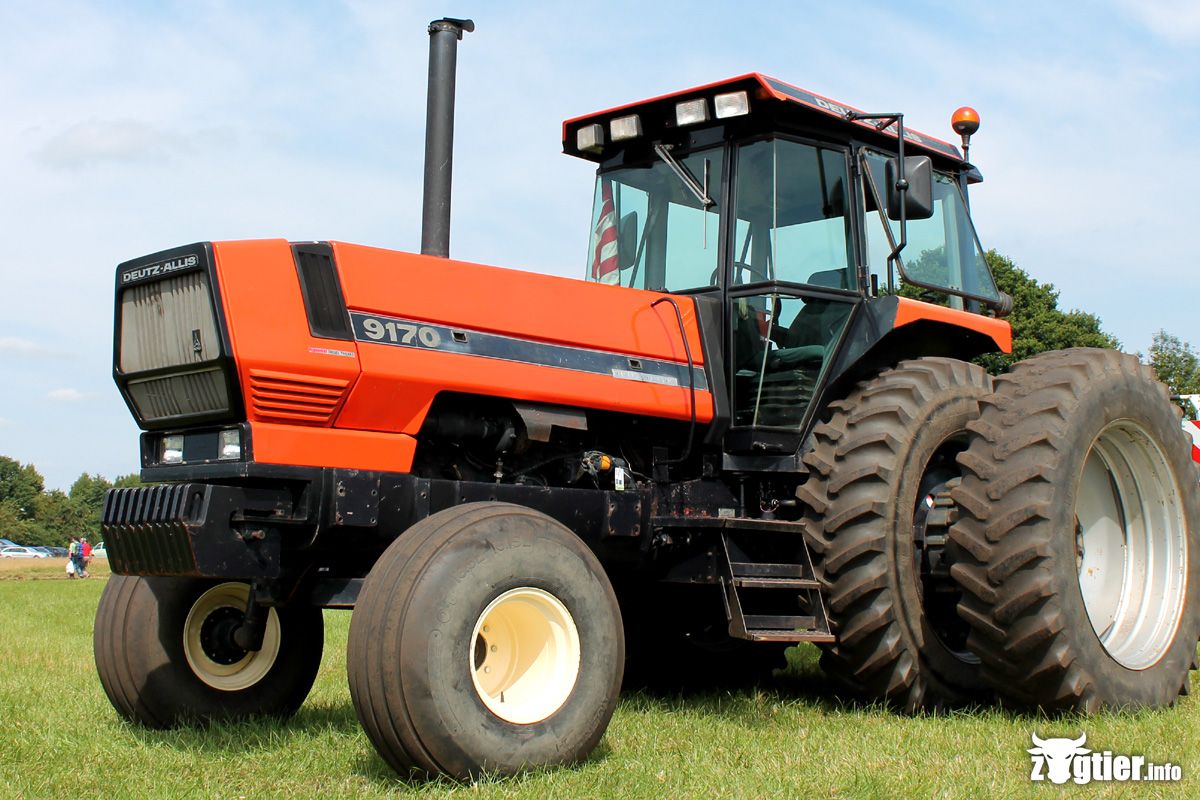

Deutz-Allis 9170 photos
FAQ
Common questions
What engine configuration does the Deutz-Allis 9170 use?
The Deutz-Allis 9170 is equipped with a 6-cylinder engine displacing 584 ci.
What hydraulics does the Deutz-Allis 9170 have?
The Deutz-Allis 9170 uses a Closed Center hydraulic system.
What three-point hitch category does the Deutz-Allis 9170 use?
The Deutz-Allis 9170 has a Category III/II three-point hitch.
How much does the Deutz-Allis 9170 weigh?
The Deutz-Allis 9170 weighs about 17,465 lb in operating condition.
What transmission is in the Deutz-Allis 9170?
Transmission on the Deutz-Allis 9170 is Partial Power Shift, with 18 forward speeds.
What maintenance does the Deutz-Allis 9170 require?
Like any tractor, the Deutz-Allis 9170 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
