Row CropPerformance profile
Deutz D 5505
The Deutz D 5505 is a row crop tractor built for farm work. It has a 2WD drive system and a manual steering setup. The tractor uses a gear transmission with 8 forward gears and 4 reverse gears, giving farmers good control over their speed. Under the hood, the D 5505 has a Deutz F4L 812 engine. This engine is air-cooled and runs on diesel fuel. It has 4 cylinders and puts out 51.3 hp at 2300 rpm, which is below average power for tractors. The engine size is 207.5 cubic inches, which is also on the smaller side. However, the engine's rpm is above average, meaning it can run at higher speeds. The tractor weighs 5423 pounds, making it lighter than many other tractors. It measures 146.9 inches long, 70.9 inches wide, and 96.5 inches tall with the cab. The D 5505 has an electric starter for easy operation.
ManufacturerDeutzPower51.3 hpEngine4-cylTransGear
Quick specs
- Category
- Row Crop
- Engine Power Output
- 51hp
- Operating Weight
- 5,423 lb
- Transmission
- Gear
At a glance
How the D 5505 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
51.3 hp · 7th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The D 5505 ranks at the 7th percentile for engine power among recorded row crop tractors.
Overview
About the Deutz D 5505
The Deutz D 5505 is a row crop tractor built for farm work. It has a 2WD drive system and a manual steering setup. The tractor uses a gear transmission with 8 forward gears and 4 reverse gears, giving farmers good control over their speed. Under the hood, the D 5505 has a Deutz F4L 812 engine. This engine is air-cooled and runs on diesel fuel. It has 4 cylinders and puts out 51.3 hp at 2300 rpm, which is below average power for tractors. The engine size is 207.5 cubic inches, which is also on the smaller side. However, the engine's rpm is above average, meaning it can run at higher speeds. The tractor weighs 5423 pounds, making it lighter than many other tractors. It measures 146.9 inches long, 70.9 inches wide, and 96.5 inches tall with the cab. The D 5505 has an electric starter for easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | Deutz |
|---|---|
| Model | D 5505 |
| Category | Row Crop tractor |
| Type | 4x2 |
| Operating weight | 5,423lb |
Engine
| Make | Deutz |
|---|---|
| Model | F4L 812 |
| Power | 51.3hp |
| Cylinders | 4 |
| Displacement | 207.5ci |
| Bore | 3.74in |
| Stroke | 4.72in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 146.9in |
|---|---|
| Width | 70.9in |
| Height | 96.5in |
| Operating weight | 5,423lb |
Head to head
D 5505 vs. Row Crop median
How the Deutz D 5505 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 51.3 hp | 138 hp | -63% | 7th |
| Engine Displacement | 208 ci | 391 ci | -47% | 10th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 5,423 lb | 12,307 lb | -56% | 10th |
| Length | 147 in | 180 in | -18% | 15th |
| Width | 70.9 in | 91.2 in | -22% | 7th |
| Height | 96.5 in | 114 in | -15% | 20th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared Deutz tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Deutz D 5005 | 45 hp | 4,630 lb | — | Compare → |
| Deutz D 6005 | 58 hp | 5,655 lb | — | Compare → |
| Deutz D 8005 | 80 hp | 8,136 lb | — | Compare → |
| Deutz D 9005 | 85 hp | 8,103 lb | — | Compare → |
| Deutz D 12006 | 120 hp | 10,253 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT45 | 52 hp | 4,806 lb | — | Compare → |
| Agco GT45A | 52 hp | 5,820.3 lb | — | Compare → |
| Barreiros 50.55 | 52 hp | 5,100 lb | — | Compare → |
| Barreiros R-500 | 52 hp | — | — | Compare → |
| Agco ST52a | 52.1 hp | 3,494.4 lb | — | Compare → |
Explore
Deutz siblings
Explore
Similar-spec models
Gallery

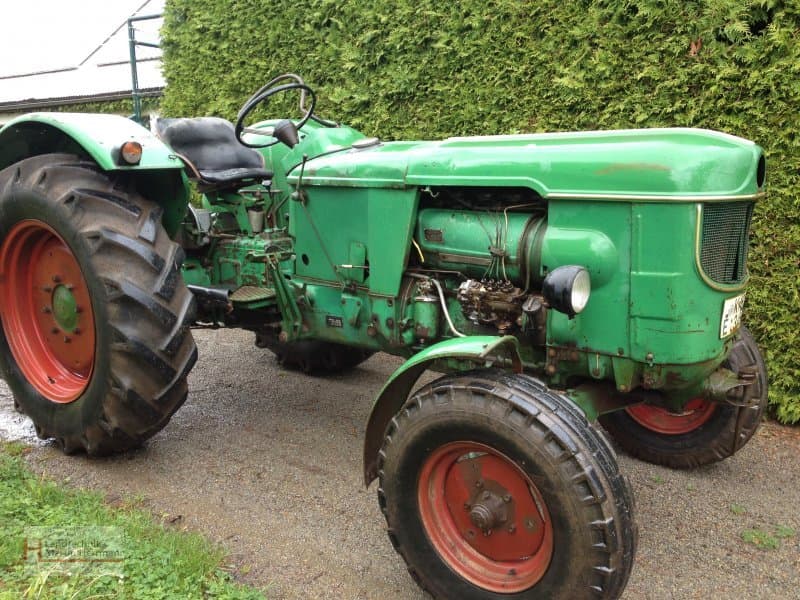

Deutz D 5505 photos
FAQ
Common questions
How powerful is the Deutz D 5505?
The Deutz D 5505 has an engine power output of 51.3 hp. It is powered by a 4-cylinder engine displacing 207.5 ci.
What type of transmission does the Deutz D 5505 have?
The Deutz D 5505 uses a Gear transmission offering 8 forward gears.
What is the working weight of the Deutz D 5505?
The operating weight of the Deutz D 5505 is approximately 5,423 lb.
What routine service does the Deutz D 5505 need?
Regular maintenance for the Deutz D 5505 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
