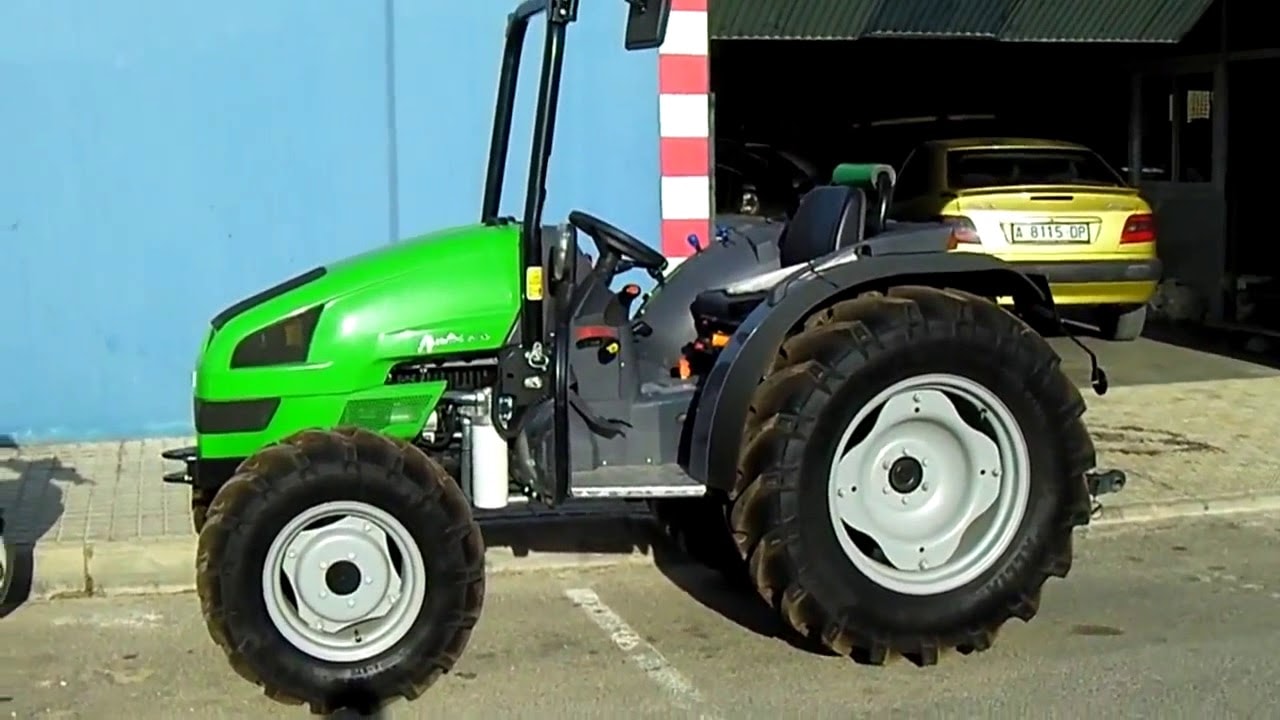

Deutz-Fahr Agrokid 230

Deutz-Fahr Agrokid 230

Complete specifications and technical data for the Deutz-Fahr Agrokid 230. Compare with similar tractors from Deutz-Fahr and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

50hp

Operating Weight

2,793 lb

Transmission

Shuttle

The Deutz-Fahr Agrokid 230 is a compact utility tractor built for versatility and power. It features a 4-wheel drive system and power steering, making it easy to maneuver in tight spaces. The tractor ...

Photo Gallery

Image Gallery
Deutz-Fahr Agrokid 230 Tractor
Deutz-Fahr Agrokid 230 Tractor
Deutz-Fahr Agrokid 230 Tractor
Deutz-Fahr Agrokid 230 Tractor
Deutz-Fahr Agrokid 230 Tractor

Specifications

Manufacturer
Deutz-Fahr
Model
Agrokid 230
Category
Utility
Manufacturer
Mitsubishi
Power Output
49.6hp
Rated RPM
3,000RPM
Cylinders
4
Displacement
107.3ci
Bore
3.07in
Stroke
3.62in

Engine Power Output Comparison of Deutz-Fahr Agrokid 230 vs. Other Utility Tractors

Loading Chart...

Type
Shuttle
Length
117.3in
Width
51in
Height
79.5in
Operating Weight
2,793lb

Operating Weight Comparison of Deutz-Fahr Agrokid 230 vs. Other Utility Tractors

Loading Chart...

System Type
Open Center
Steering Type
Power steering
Hitch Type
Category I
Hitch Position
Rear
Hitch Capacity
5,070lb
Chassis Type
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power steering
Type
Optional Cab

Compare to Other Tractors

Frequently Asked Questions

What is the engine power output of the Deutz-Fahr Agrokid 230?

The Deutz-Fahr Agrokid 230 has an engine power output of 49.6 hp.

How many cylinders does the Deutz-Fahr Agrokid 230 have?

The Deutz-Fahr Agrokid 230 is equipped with a 4-cylinder engine.

What is the operating weight of the Deutz-Fahr Agrokid 230?

The operating weight of the Deutz-Fahr Agrokid 230 is approximately 2,793 lb.

What type of transmission does the Deutz-Fahr Agrokid 230 have?

The Deutz-Fahr Agrokid 230 is equipped with a Shuttle transmission.

What type of hydraulic system does the Deutz-Fahr Agrokid 230 use?

The Deutz-Fahr Agrokid 230 uses a Open Center hydraulic system.

What maintenance does the Deutz-Fahr Agrokid 230 require?

Regular maintenance for the Deutz-Fahr Agrokid 230 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
