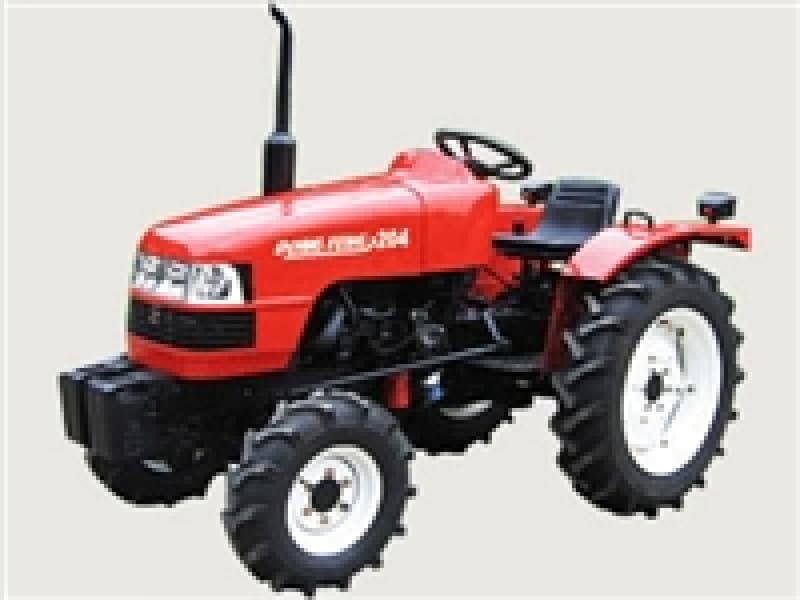

Dongfeng DF-204

The Dongfeng DF-204 is a compact 4WD tractor designed for various farming tasks. It features a powerful 3-cylinder diesel engine made by Dongfeng. The engine puts out 24.5 hp and has a displacement of 83.9 cubic inches. This tractor is built to handle tough jobs with its liquid-cooled engine and 4x4 MFWD chassis. The DF-204 comes with an 8-speed transmission, giving farmers 8 forward gears and 2 reverse gears. It has hydraulic power steering for easy control. The tractor measures 104.8 inches long, 45.6 inches wide, and 53.7 inches tall. It weighs 2,403 pounds, making it sturdy yet manageable. The DF-204 is equipped with agricultural tires and a Category I rear hitch, perfect for attaching various implements. This tractor is a good choice for small to medium-sized farms looking for a reliable workhorse.

ManufacturerDongfengPower24.5 hp(18.3 kW)ClassUnder 25 HP tractors →Engine3-cylinderTransmission8-speed
Dongfeng DF-204

Key specifications

Category
Sub-Compact
Engine power
25hp
Operating weight
2,403 lb
Transmission
8-speed
Compare this model

Category comparison

DF-204 compared with its category

vs. Sub-Compact median

Distribution

Engine Power (hp)

All recorded Sub-Compact tractors

24.5 hp · 42nd

This model

4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816

The DF-204 ranks at the 42nd percentile for engine power among recorded sub-compact tractors.

Overview

About the Dongfeng DF-204

The Dongfeng DF-204 is a compact 4WD tractor designed for various farming tasks. It features a powerful 3-cylinder diesel engine made by Dongfeng. The engine puts out 24.5 hp and has a displacement of 83.9 cubic inches. This tractor is built to handle tough jobs with its liquid-cooled engine and 4x4 MFWD chassis. The DF-204 comes with an 8-speed transmission, giving farmers 8 forward gears and 2 reverse gears. It has hydraulic power steering for easy control. The tractor measures 104.8 inches long, 45.6 inches wide, and 53.7 inches tall. It weighs 2,403 pounds, making it sturdy yet manageable. The DF-204 is equipped with agricultural tires and a Category I rear hitch, perfect for attaching various implements. This tractor is a good choice for small to medium-sized farms looking for a reliable workhorse.

Full specifications

Recorded specifications

General

ManufacturerDongfeng
ModelDF-204
CategorySub-Compact tractor
Type4x4 MFWD
Operating weight2,403lb(1,090 kg)

Engine

MakeDongfeng
ModelY380T
Power24.5hp(18.27 kW)
Cylinders3
Displacement83.9ci(1.38 L)
Bore3.15in(80.01 mm)
Stroke3.54in(89.99 mm)

Transmission

Type8-speed
Forward gears8
Reverse gears2

Chassis & drive

Chassis4x4 MFWD
Drive4WD
SteeringHydraulic power

Dimensions

Length104.8in(2,662 mm)
Width45.6in(1,158 mm)
Height53.7in(1,364 mm)
Operating weight2,403lb(1,090 kg)

Closest alternatives

DF-204 compared with the nearest models by horsepower

The closest sub-compact models to the Dongfeng DF-204 by rated horsepower are the Dongfeng DF-200 and the Massey Ferguson GC1725M. The Dongfeng DF-200 matches it on rated power and weighs 330 lb less, carrying 85 lb per horsepower against 98 lb. The Massey Ferguson GC1725M matches it on rated power and weighs 870 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the DF-204 has the highest weight per horsepower at 98 lb per hp.

Dongfeng DF-204 compared with Dongfeng DF-200 and Massey Ferguson GC1725M
SpecDongfeng DF-204Dongfeng DF-200Massey Ferguson GC1725M
Engine power24.5 hp18.3 kW24.5 hp18.3 kW24.5 hp18.3 kW
Operating weight2,403 lb1,090 kg2,073 lb940 kg1,532 lb695 kg
Weight per hp98 lb/hp60 kg/kW85 lb/hp51 kg/kW63 lb/hp38 kg/kW
Displacement83.9 ci1.37 L83.9 ci1.37 L68.5 ci1.12 L
Cylinders333
Transmission8-speedManualHydrostatic
Drive4WD2WD-

Calculators

Calculators for the DF-204

Parts and manuals

Parts and manuals for the Dongfeng DF-204

Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.

Filters

Manuals

Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure

Category medians

DF-204 vs. Sub-Compact median

Dongfeng DF-204 compared with other Sub-Compact tractors

SpecThis modelSub-Compact medianDifferencePercentile
Engine Power24.5 hp26.9 hp-9%42nd
Engine Displacement83.9 ci91.4 ci-8%45th
Cylinders33at median50th
Forward Gears89-11%40th
Operating Weight2,403 lb2,700 lb-11%44th
Length105 in113 in-8%37th
Width45.6 in50.7 in-10%30th
Height53.7 in78.4 in-32%15th

Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 584–816 models).

Same manufacturer

Other Dongfeng models

All Dongfeng models →

Other manufacturers

Models with similar horsepower

FAQ

Frequently asked questions

How powerful is the Dongfeng DF-204?

The Dongfeng DF-204 has an engine power output of 24.5 hp. It is powered by a 3-cylinder engine displacing 83.9 ci.

What three-point hitch category does the Dongfeng DF-204 use?

The Dongfeng DF-204 has a Category I three-point hitch.

What is the working weight of the Dongfeng DF-204?

The operating weight of the Dongfeng DF-204 is approximately 2,403 lb.

What type of transmission does the Dongfeng DF-204 have?

The Dongfeng DF-204 uses an 8-speed transmission offering 8 forward gears.

What routine service does the Dongfeng DF-204 need?

Regular maintenance for the Dongfeng DF-204 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
