Sub-CompactPerformance profile
Eicher 242 XTRAC
The Eicher 242 XTRAC is a compact and versatile 2WD tractor designed for various farming tasks. It features a manual steering system and a gear transmission with 8 forward and 2 reverse gears, giving farmers 10 gears in total to work with. This tractor is powered by an Eicher 115 NC engine, which is air-cooled and runs on diesel fuel. The engine of the 242 XTRAC is a single-cylinder model with direct injection. It has a displacement of 95.1 ci and produces 24 hp at 1650 rpm. The tractor's compact size, measuring 128.3 inches long, 64 inches wide, and 80.3 inches tall, makes it easy to maneuver in tight spaces. With an operating weight of 3825 lb and a ground clearance of 16.1 inches, this tractor offers a good balance of stability and clearance for various field conditions. The 242 XTRAC also features an open center hydraulic system and an electric starter for easy operation.
ManufacturerEicherPower24 hpEngine1-cylTransGear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 24hp
- Operating Weight
- 3,825 lb
- Transmission
- Gear
At a glance
How the 242 XTRAC compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
24 hp · 39th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 242 XTRAC ranks at the 39th percentile for engine power among recorded sub-compact tractors.
Overview
About the Eicher 242 XTRAC
The Eicher 242 XTRAC is a compact and versatile 2WD tractor designed for various farming tasks. It features a manual steering system and a gear transmission with 8 forward and 2 reverse gears, giving farmers 10 gears in total to work with. This tractor is powered by an Eicher 115 NC engine, which is air-cooled and runs on diesel fuel. The engine of the 242 XTRAC is a single-cylinder model with direct injection. It has a displacement of 95.1 ci and produces 24 hp at 1650 rpm. The tractor's compact size, measuring 128.3 inches long, 64 inches wide, and 80.3 inches tall, makes it easy to maneuver in tight spaces. With an operating weight of 3825 lb and a ground clearance of 16.1 inches, this tractor offers a good balance of stability and clearance for various field conditions. The 242 XTRAC also features an open center hydraulic system and an electric starter for easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | Eicher |
|---|---|
| Model | 242 XTRAC |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Operating weight | 3,825lb |
Engine
| Make | Eicher |
|---|---|
| Model | 115 NC |
| Power | 24hp |
| Cylinders | 1 |
| Displacement | 95.1ci |
| Bore | 4.53in |
| Stroke | 5.91in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 128.3in |
|---|---|
| Width | 64in |
| Height | 80.3in |
| Operating weight | 3,825lb |
Head to head
242 XTRAC vs. Sub-Compact median
How the Eicher 242 XTRAC compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24 hp | 26.9 hp | -11% | 39th |
| Engine Displacement | 95.1 ci | 91.4 ci | +4% | 54th |
| Cylinders | 1 | 3 | -67% | 2nd |
| Forward Gears | 8 | 9 | -11% | 40th |
| Operating Weight | 3,825 lb | 2,700 lb | +42% | 75th |
| Length | 128 in | 113 in | +13% | 75th |
| Width | 64 in | 50.7 in | +26% | 83rd |
| Height | 80.3 in | 78.4 in | +2% | 54th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Eicher tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Eicher 241 XTRAC | 24 hp | 3,605 lb | — | Compare → |
| Eicher 243 | 24 hp | 3,891 lb | — | Compare → |
| Eicher 364 | 35 hp | 3,770 lb | — | Compare → |
| Eicher 369 | 35 hp | — | — | Compare → |
| Eicher 380 | 40 hp | 4,365 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK2840 | 24 hp | 2,900 lb | — | Compare → |
| Bolens G242 | 24 hp | 1,672 lb | — | Compare → |
| Bolens G244 | 24 hp | 1,903 lb | — | Compare → |
| Branson 2400 | 24 hp | 1,958 lb | 2007+ | Compare → |
| AGCO ST25 | 24.3 hp | 1,588 lb | — | Compare → |
Explore
Eicher siblings
Explore
Similar-spec models
Gallery

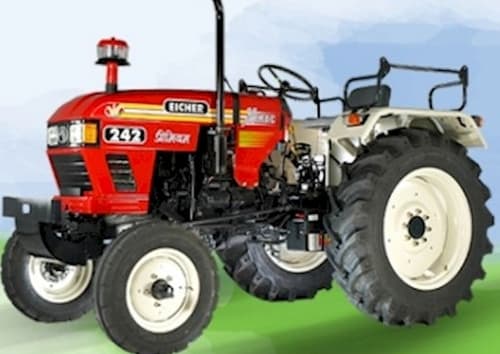

Eicher 242 XTRAC photos
FAQ
Common questions
What is the engine power output of the Eicher 242 XTRAC?
Rated engine output for the Eicher 242 XTRAC is 24 hp, delivered by a 1-cylinder engine. The engine displaces 95.1 ci.
Which transmission does the Eicher 242 XTRAC use?
The Eicher 242 XTRAC is equipped with a Gear transmission with 8 forward gears.
What hydraulics does the Eicher 242 XTRAC have?
The Eicher 242 XTRAC uses an Open Center hydraulic system.
What is the operating weight of the Eicher 242 XTRAC?
In working trim, the Eicher 242 XTRAC comes in at roughly 3,825 lb.
How do I maintain a Eicher 242 XTRAC?
Routine service for the Eicher 242 XTRAC covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
