Farmall F-30
The Farmall F-30 is a utility tractor built by International Harvester. It's a sturdy machine with a manual steering system and a simple transmission that has 4 forward gears and 1 reverse gear. The tractor runs on a liquid-cooled, 4-cylinder engine that uses distillate fuel. This engine is quite large for its time, with an above-average displacement of 283.7 cubic inches. The F-30 is a heavy-duty tractor, weighing in at 5,300 pounds. It's built to last, with steel wheels instead of rubber tires. The tractor measures 147 inches long, 90 inches wide, and 81 inches tall. It has some old-fashioned features, like a hand-crank starter and an oil bath air cleaner. The engine runs at a low speed of 1,150 RPM, which is lower than most tractors. This slower speed might help the engine last longer. The F-30 is designed for farmers who need a strong, reliable tractor for various farm tasks.
Key specifications
- Category
- Utility
- Operating weight
- 5,300 lb
- Transmission
- Unsynchronized Gear
Overview
About the Farmall F-30
The Farmall F-30 is a utility tractor built by International Harvester. It's a sturdy machine with a manual steering system and a simple transmission that has 4 forward gears and 1 reverse gear. The tractor runs on a liquid-cooled, 4-cylinder engine that uses distillate fuel. This engine is quite large for its time, with an above-average displacement of 283.7 cubic inches. The F-30 is a heavy-duty tractor, weighing in at 5,300 pounds. It's built to last, with steel wheels instead of rubber tires. The tractor measures 147 inches long, 90 inches wide, and 81 inches tall. It has some old-fashioned features, like a hand-crank starter and an oil bath air cleaner. The engine runs at a low speed of 1,150 RPM, which is lower than most tractors. This slower speed might help the engine last longer. The F-30 is designed for farmers who need a strong, reliable tractor for various farm tasks.
Full specifications
Recorded specifications
General
| Manufacturer | Farmall |
|---|---|
| Model | F-30 |
| Category | Utility tractor |
| Operating weight | 5,300lb(2,404 kg) |
Engine
| Make | International Harvester |
|---|---|
| Cylinders | 4 |
| Displacement | 283.7ci(4.65 L) |
| Bore | 4.25in(107.9 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Unsynchronized Gear |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Chassis & drive
| Steering | Manual |
|---|
Dimensions
| Length | 147in(3,734 mm) |
|---|---|
| Width | 90in(2,286 mm) |
| Height | 81in(2,057 mm) |
| Operating weight | 5,300lb(2,404 kg) |
Capacities
| Cooling system | 9gal(34.07 L) |
|---|
Category medians
F-30 vs. Utility median
Farmall F-30 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 284 ci | 183 ci | +55% | 83rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 12 | -67% | 4th |
| Operating Weight | 5,300 lb | 5,303 lb | 0% | 50th |
| Length | 147 in | 137 in | +8% | 63rd |
| Width | 90 in | 66 in | +36% | 92nd |
| Height | 81 in | 94.1 in | -14% | 29th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Farmall models
Other manufacturers
Models with similar horsepower
Gallery

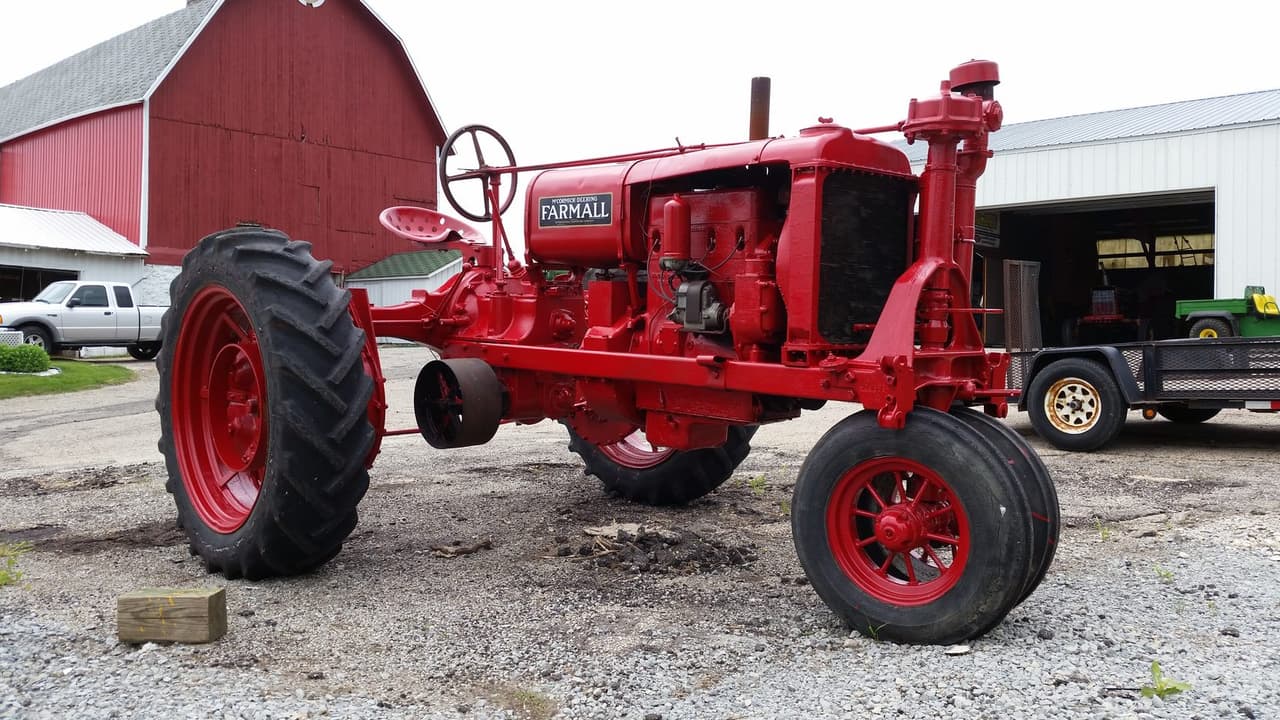

Farmall F-30 photos
FAQ
Frequently asked questions
What engine configuration does the Farmall F-30 use?
The Farmall F-30 is equipped with a 4-cylinder engine displacing 283.7 ci.
What is the operating weight of the Farmall F-30?
The Farmall F-30 has an operating weight of about 5,300 lb.
Which transmission does the Farmall F-30 use?
The Farmall F-30 is equipped with an Unsynchronized Gear transmission with 4 forward gears.
How do I maintain a Farmall F-30?
Routine service for the Farmall F-30 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
