Same brandAgricultural tractorsSpec sheet
Fendt 516
The Fendt 516 is a powerful and capable tractor designed for serious farm work. It has a strong 4-cylinder engine that's cooled by water. This engine can produce 162.3 horsepower, which is plenty of power for most farming tasks. The engine runs at 2100 rpm when working at full power. This tractor is built to handle tough jobs. It weighs 23148.6 lb, making it sturdy and stable. The Fendt 516 is 175.4 inches long, 99.6 inches wide, and 118 inches tall. It has two PTO speeds: 1000 rpm and 540 rpm. This allows farmers to use different tools and equipment with the tractor. Fendt is known for making high-quality farm machines, and the 516 model continues this tradition with its reliable design and strong performance.
Key specifications
- Category
- Agricultural
- Engine power
- 162hp
- Operating weight
- 23,148.6 lb
Category comparison
516 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
162.3 hp · 73rd
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 516 ranks at the 73rd percentile for engine power among recorded agricultural tractors.
Overview
About the Fendt 516
The Fendt 516 is a powerful and capable tractor designed for serious farm work. It has a strong 4-cylinder engine that's cooled by water. This engine can produce 162.3 horsepower, which is plenty of power for most farming tasks. The engine runs at 2100 rpm when working at full power. This tractor is built to handle tough jobs. It weighs 23148.6 lb, making it sturdy and stable. The Fendt 516 is 175.4 inches long, 99.6 inches wide, and 118 inches tall. It has two PTO speeds: 1000 rpm and 540 rpm. This allows farmers to use different tools and equipment with the tractor. Fendt is known for making high-quality farm machines, and the 516 model continues this tradition with its reliable design and strong performance.
Full specifications
Recorded specifications
General
| Manufacturer | Fendt |
|---|---|
| Model | 516 |
| Category | Agricultural tractor |
| Operating weight | 23,148.6lb(10,500 kg) |
Engine
| Power | 162.3hp(121 kW) |
|---|---|
| Cylinders | 4 |
| Displacement | 1,346ci(22.06 L) |
| Bore | 4in(101.6 mm) |
| Stroke | 5in(127 mm) |
Power take-off
| PTO speed | 1,000rpm |
|---|
Dimensions
| Length | 175.4in(4,455 mm) |
|---|---|
| Width | 99.6in(2,530 mm) |
| Height | 118in(2,997 mm) |
| Operating weight | 23,148.6lb(10,500 kg) |
Closest alternatives
516 compared with the nearest models by horsepower
By engine horsepower, the nearest agricultural models to the 516 are the Fendt 716 and the Massey Ferguson 6S.165. The Fendt 716 matches it on rated power and weighs 8,590 lb less, carrying 90 lb per horsepower against 143 lb. The Massey Ferguson 6S.165 matches it on rated power and weighs 9,260 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the 516 has the highest weight per horsepower at 143 lb per hp.
| Spec | Fendt 516 | Fendt 716 | Massey Ferguson 6S.165 |
|---|---|---|---|
| Engine power | 162.3 hp121 kW | 162.3 hp121 kW | 162.3 hp121 kW |
| Operating weight | 23,149 lb10,500 kg | 14,562 lb6,605 kg | 13,889 lb6,300 kg |
| Weight per hp | 143 lb/hp87 kg/kW | 90 lb/hp55 kg/kW | 86 lb/hp52 kg/kW |
| Displacement | 1,346 ci22.06 L | 369.7 ci6.06 L | 299.8 ci4.91 L |
| Cylinders | 4 | 6 | 4 |
| Transmission | - | Stepless Vario transmission | Power shift and continuously-variable |
Calculators
Calculators for the 516
PTO power
About 135 to 146 PTO hp
Estimated from the 162.3 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 162.3 hp tractor can run
Maximum size is about a 19.5 ft rotary cutter or a 16.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
166 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
162.3 hp is 121.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
516 vs. Agricultural median
Fendt 516 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 162 hp | 110 hp | +48% | 73rd |
| Engine Displacement | 1,346 ci | 336 ci | +301% | 99th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Operating Weight | 23,149 lb | 10,914 lb | +112% | 90th |
| Length | 175 in | 173 in | +1% | 53rd |
| Width | 99.6 in | 79.5 in | +25% | 82nd |
| Height | 118 in | 111 in | +7% | 70th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 497–1,130 models).
Same manufacturer
Other Fendt models
Other manufacturers
Models with similar horsepower
Gallery

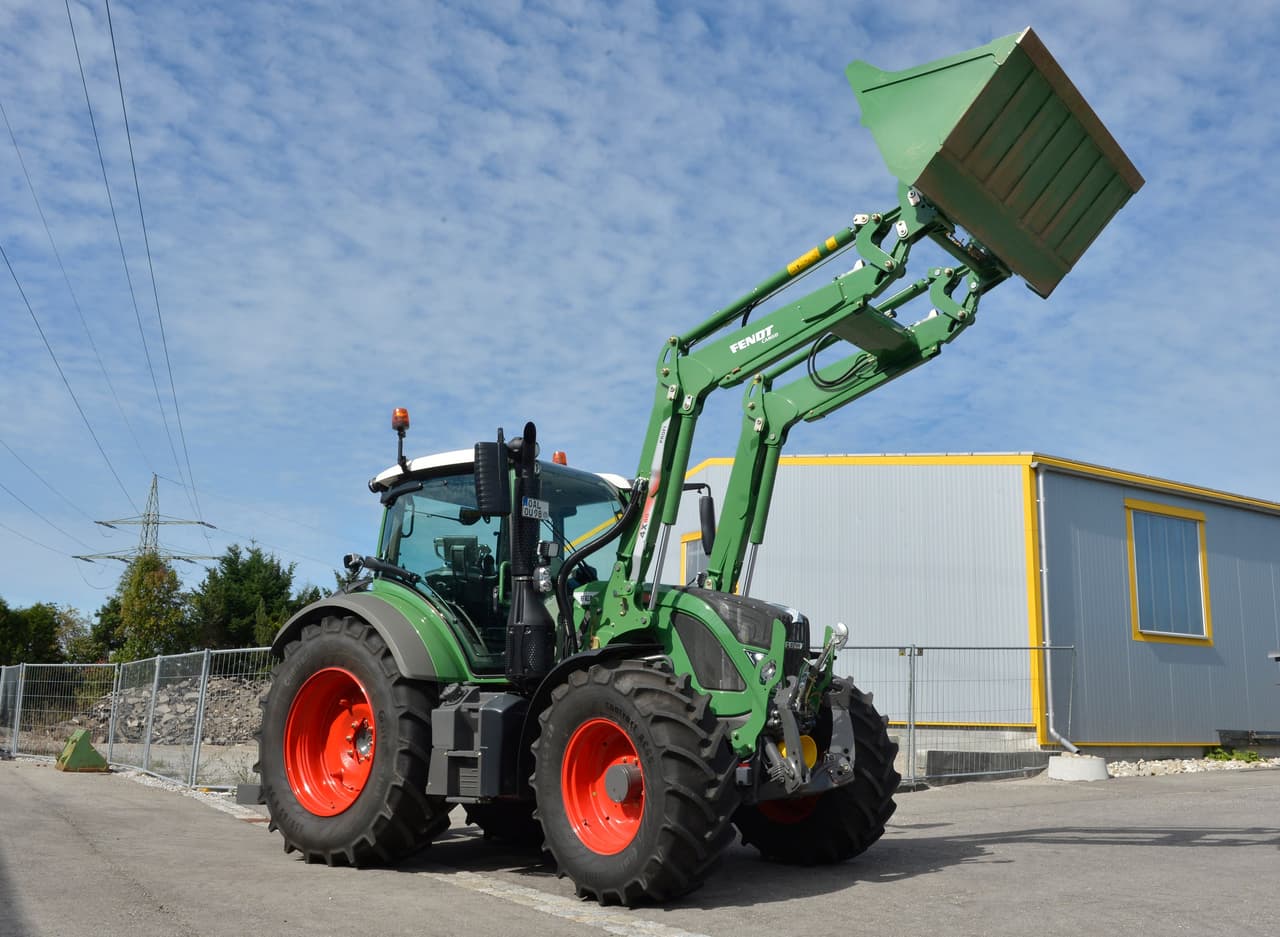

Fendt 516 photos
FAQ
Frequently asked questions
What is the engine power output of the Fendt 516?
Rated engine output for the Fendt 516 is 162.3 hp, delivered by a 4-cylinder engine. The engine displaces 1,346 ci.
What is the operating weight of the Fendt 516?
The Fendt 516 has an operating weight of about 23,148.6 lb.
How do I maintain a Fendt 516?
Routine service for the Fendt 516 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
