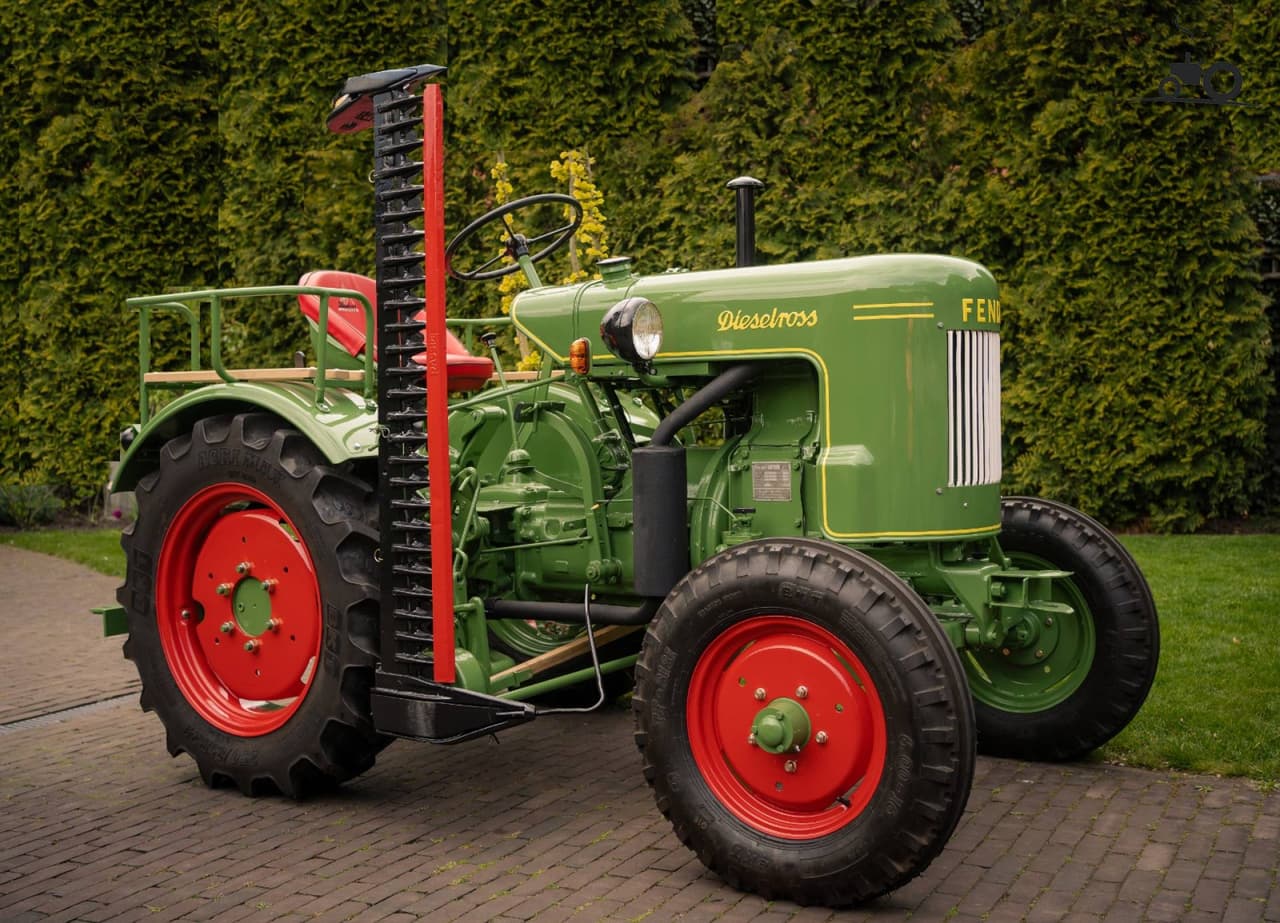

Fendt Dieselross F15
The Fendt Dieselross F15 is a compact and sturdy tractor built for small farms and light work. It has a 2-wheel drive system and manual steering, making it easy to handle in tight spaces. The tractor comes with a gear transmission that offers 6 forward gears and 2 reverse gears, giving the driver good control over speed and power. Under the hood, the Dieselross F15 has a single-cylinder diesel engine made by MWM. This engine is liquid-cooled and naturally aspirated, meaning it doesn't use a turbocharger. It produces 15 horsepower at 1600 rpm, which is enough for basic farming tasks. The tractor has agricultural tires, with a 5.00-16 size on the front. It measures 101.6 inches long, 59.5 inches wide, and 64.2 inches tall, making it compact and easy to store. The Dieselross F15 weighs 2778 pounds and has an open operator station, allowing the driver to easily see their surroundings while working.

Key specifications
- Category
- Sub-Compact
- Engine power
- 15hp
- Operating weight
- 2,778 lb
- Transmission
- Gear
Category comparison
Dieselross F15 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
This model
The Dieselross F15 ranks at the 9th percentile for engine power among recorded sub-compact tractors.
Overview
About the Fendt Dieselross F15
The Fendt Dieselross F15 is a compact and sturdy tractor built for small farms and light work. It has a 2-wheel drive system and manual steering, making it easy to handle in tight spaces. The tractor comes with a gear transmission that offers 6 forward gears and 2 reverse gears, giving the driver good control over speed and power. Under the hood, the Dieselross F15 has a single-cylinder diesel engine made by MWM. This engine is liquid-cooled and naturally aspirated, meaning it doesn't use a turbocharger. It produces 15 horsepower at 1600 rpm, which is enough for basic farming tasks. The tractor has agricultural tires, with a 5.00-16 size on the front. It measures 101.6 inches long, 59.5 inches wide, and 64.2 inches tall, making it compact and easy to store. The Dieselross F15 weighs 2778 pounds and has an open operator station, allowing the driver to easily see their surroundings while working.
Full specifications
Recorded specifications
General
| Manufacturer | Fendt |
|---|---|
| Model | Dieselross F15 |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Operating weight | 2,778lb(1,260 kg) |
Engine
| Make | MWM |
|---|---|
| Model | KDW415E |
| Power | 15hp(11.19 kW) |
| Cylinders | 1 |
| Displacement | 72ci(1.18 L) |
| Bore | 3.94in(100.1 mm) |
| Stroke | 5.91in(150.1 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open |
Dimensions
| Length | 101.6in(2,581 mm) |
|---|---|
| Width | 59.5in(1,511 mm) |
| Height | 64.2in(1,631 mm) |
| Operating weight | 2,778lb(1,260 kg) |
Tires
| Front | 5.00-16ConvertShop size |
|---|
Closest alternatives
Dieselross F15 compared with the nearest models by horsepower
The closest sub-compact models to the Fendt Dieselross F15 by rated horsepower are the Kubota BX1500 and the Kubota B1502. The Kubota BX1500 matches it on rated power and weighs 1,570 lb less, carrying 81 lb per horsepower against 185 lb. The Kubota B1502 matches it on rated power.
| Spec | Fendt Dieselross F15 | Kubota BX1500 | Kubota B1502 |
|---|---|---|---|
| Engine power | 15 hp11.2 kW | 15 hp11.2 kW | 15 hp11.2 kW |
| Operating weight | 2,778 lb1,260 kg | 1,213 lb550 kg | - |
| Weight per hp | 185 lb/hp113 kg/kW | 81 lb/hp49 kg/kW | - |
| Displacement | 72 ci1.18 L | 36.6 ci0.6 L | 52.2 ci0.86 L |
| Cylinders | 1 | 2 | 3 |
| Transmission | Gear | Hydrostatic | Unsynchronized gear |
| Drive | 2WD | 4WD | 2WD |
| Years built | - | 2003-2005 | 1982-1988 |
Calculators
Calculators for the Dieselross F15
PTO power
About 12 to 14 PTO hp
Estimated from the 15 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 15 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
215 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
15 hp is 11.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 5.00-16 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Parts and manuals
Parts and manuals for the Fendt Dieselross F15
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the MWM KDW415EAmazon
Fits the MWM KDW415E 1-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the MWM KDW415EAmazon
Fits the MWM KDW415E 1-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the MWM KDW415EAmazon
Fits the MWM KDW415E 1-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the MWM KDW415EAmazon
Fits the MWM KDW415E 1-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Fendt Dieselross F15 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Fendt Dieselross F15 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Fendt Dieselross F15 service manualAmazon
Shop and repair manuals for this model.
Tires
- 5.00-16 tiresAmazon
Listed front tire size for the Fendt Dieselross F15.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Dieselross F15 vs. Sub-Compact median
Fendt Dieselross F15 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 15 hp | 26.9 hp | -44% | 9th |
| Engine Displacement | 72 ci | 91.4 ci | -21% | 34th |
| Cylinders | 1 | 3 | -67% | 2nd |
| Forward Gears | 6 | 9 | -33% | 18th |
| Operating Weight | 2,778 lb | 2,700 lb | +3% | 52nd |
| Length | 102 in | 113 in | -10% | 32nd |
| Width | 59.5 in | 50.7 in | +17% | 72nd |
| Height | 64.2 in | 78.4 in | -18% | 25th |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 584–816 models).
Same manufacturer
Other Fendt models
Other manufacturers
Models with similar horsepower
Gallery
Fendt Dieselross F15 photos



FAQ
Frequently asked questions
What is the engine power output of the Fendt Dieselross F15?
Rated engine output for the Fendt Dieselross F15 is 15 hp, delivered by a 1-cylinder engine. The engine displaces 72 ci.
Which transmission does the Fendt Dieselross F15 use?
The Fendt Dieselross F15 is equipped with a Gear transmission with 6 forward gears.
What are the factory tire sizes for the Fendt Dieselross F15?
The Fendt Dieselross F15 comes with 5.00-16 front tires.
What is the operating weight of the Fendt Dieselross F15?
The Fendt Dieselross F15 has an operating weight of about 2,778 lb.
How do I maintain a Fendt Dieselross F15?
Routine service for the Fendt Dieselross F15 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
