Utility

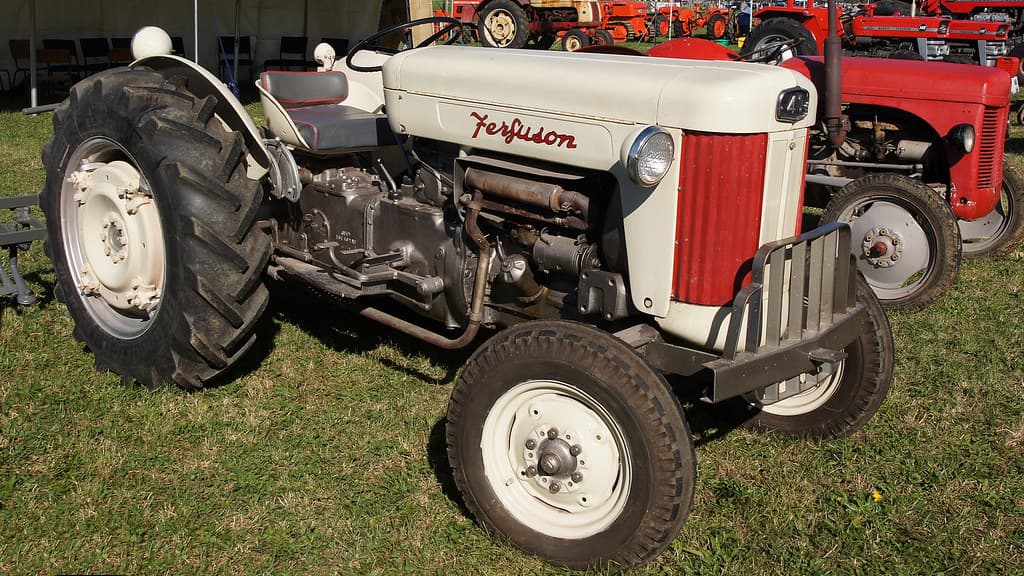

Ferguson F-40
The Ferguson F-40 is a versatile tractor built for farmers who need a reliable workhorse. It features a Continental Z-134 engine, which is a liquid-cooled, gasoline-powered unit with 4 cylinders. This engine has a displacement of 134 cubic inches and runs at 2000 RPM, providing steady power for various farm tasks. The F-40 comes with a manual steering system and an unsynchronized gear transmission. It offers 6 forward gears and 2 reverse gears, giving drivers good control over speed and power. The tractor has a Category 3 hitch, making it suitable for heavy-duty implements. It also features an open center hydraulic system, which is helpful for operating attachments. With a length of 120 inches and a height of 56.8 inches, this tractor is compact enough to maneuver in tight spaces but still big enough for serious fieldwork. The F-40 weighs 3419 pounds, giving it good stability and traction with its agricultural tires on both front and rear.
ManufacturerFergusonEngine4-cylTransUnsynchronized gear
Quick specs
- Category
- Utility
- Operating Weight
- 3,419 lb
- Transmission
- Unsynchronized gear
Overview
About the Ferguson F-40
The Ferguson F-40 is a versatile tractor built for farmers who need a reliable workhorse. It features a Continental Z-134 engine, which is a liquid-cooled, gasoline-powered unit with 4 cylinders. This engine has a displacement of 134 cubic inches and runs at 2000 RPM, providing steady power for various farm tasks. The F-40 comes with a manual steering system and an unsynchronized gear transmission. It offers 6 forward gears and 2 reverse gears, giving drivers good control over speed and power. The tractor has a Category 3 hitch, making it suitable for heavy-duty implements. It also features an open center hydraulic system, which is helpful for operating attachments. With a length of 120 inches and a height of 56.8 inches, this tractor is compact enough to maneuver in tight spaces but still big enough for serious fieldwork. The F-40 weighs 3419 pounds, giving it good stability and traction with its agricultural tires on both front and rear.
Full specifications
Every recorded spec
General
| Manufacturer | Ferguson |
|---|---|
| Model | F-40 |
| Category | Utility tractor |
| Operating weight | 3,419lb |
Engine
| Make | Continental |
|---|---|
| Model | Z-134 |
| Cylinders | 4 |
| Displacement | 134ci |
| Bore | 3.31in |
| Stroke | 3.88in |
Transmission
| Type | Unsynchronized gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Steering | Manual |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 120in |
|---|---|
| Height | 56.8in |
| Operating weight | 3,419lb |
Capacities
| Cooling system | 2.5gal |
|---|
Head to head
F-40 vs. Utility median
How the Ferguson F-40 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 134 ci | 183 ci | -27% | 31st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 6 | 12 | -50% | 11th |
| Operating Weight | 3,419 lb | 5,303 lb | -36% | 28th |
| Length | 120 in | 137 in | -12% | 27th |
| Height | 56.8 in | 94.1 in | -40% | 7th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ferguson A | 20 hp | — | — | Compare → |
| Ferguson FE-35 | 34 hp | 3,093 lb | — | Compare → |
| Ferguson FF 30 | 30 hp | — | — | Compare → |
| Ferguson Pony | 11.7 hp | 1,890 lb | — | Compare → |
| Ferguson TE-20 | 23.41 hp | 2,756 lb | 1946–1948 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Ferguson siblings
Explore
Similar-spec models
Gallery
Ferguson F-40 photos
FAQ
Common questions
How many cylinders does the Ferguson F-40 have?
The Ferguson F-40 runs a 4-cylinder engine with a displacement of 134 ci.
What type of transmission does the Ferguson F-40 have?
The Ferguson F-40 uses an Unsynchronized gear transmission offering 6 forward gears.
What type of hydraulic system does the Ferguson F-40 use?
Hydraulics on the Ferguson F-40 are Open Center.
What hitch category is the Ferguson F-40?
The Ferguson F-40 uses a Category Category 3 hitch.
What is the working weight of the Ferguson F-40?
The operating weight of the Ferguson F-40 is approximately 3,419 lb.
What routine service does the Ferguson F-40 need?
Regular maintenance for the Ferguson F-40 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
