Utility tractorsSpec sheet
Ford 6710
The Ford 6710 is a utility tractor that was made from 1982 to 1987. It's a strong and reliable machine, perfect for many farm tasks. This tractor has a 2WD drive system and power steering, making it easy to control. It uses a partial power shift transmission with 16 forward gears and 8 reverse gears, giving the driver lots of options. Under the hood, the Ford 6710 has a Ford diesel engine with 4 cylinders. The engine is naturally aspirated and liquid-cooled, which helps it run smoothly. It has an above-average displacement of 268 ci and can produce 82 hp at 2100 rpm. This tractor is quite powerful for its size, with an above-average power output. It weighs 6344 lb, which is also above average for tractors in its class. The Ford 6710 comes with a three-point hitch at the rear, making it easy to attach different tools. It can be operated from a ROPS or cab, keeping the driver safe and comfortable while working.
ManufacturerFordPower82 hp(61.1 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionPartial Power Shift
Key specifications
- Category
- Utility
- Engine power
- 82hp
- Operating weight
- 6,344 lb
- Transmission
- Partial Power Shift
Category comparison
6710 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
82 hp · 73rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 6710 ranks at the 73rd percentile for engine power among recorded utility tractors.
Overview
About the Ford 6710
The Ford 6710 is a utility tractor that was made from 1982 to 1987. It's a strong and reliable machine, perfect for many farm tasks. This tractor has a 2WD drive system and power steering, making it easy to control. It uses a partial power shift transmission with 16 forward gears and 8 reverse gears, giving the driver lots of options. Under the hood, the Ford 6710 has a Ford diesel engine with 4 cylinders. The engine is naturally aspirated and liquid-cooled, which helps it run smoothly. It has an above-average displacement of 268 ci and can produce 82 hp at 2100 rpm. This tractor is quite powerful for its size, with an above-average power output. It weighs 6344 lb, which is also above average for tractors in its class. The Ford 6710 comes with a three-point hitch at the rear, making it easy to attach different tools. It can be operated from a ROPS or cab, keeping the driver safe and comfortable while working.
Full specifications
Recorded specifications
General
| Manufacturer | Ford |
|---|---|
| Model | 6710 |
| Category | Utility tractor |
| Type | 2WD |
| Years built | 1982–1987 |
| Operating weight | 6,344lb(2,878 kg) |
Engine
| Make | Ford |
|---|---|
| Power | 82hp(61.15 kW) |
| Cylinders | 4 |
| Displacement | 268ci(4.39 L) |
| Bore | 4.41in(112 mm) |
| Stroke | 4.41in(112 mm) |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Drive | 2WD |
|---|---|
| Steering | Power |
| Cab | ROPS/Cab |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 152.5in(3,874 mm) |
|---|---|
| Width | 76.9in(1,953 mm) |
| Height | 114.6in(2,911 mm) |
| Operating weight | 6,344lb(2,878 kg) |
Capacities
| Cooling system | 3.63gal(13.74 L) |
|---|
Closest alternatives
6710 compared with the nearest models by horsepower
Among utility tractors, the Ford 6610 and the Massey Ferguson 4708M are closest to the Ford 6710 in rated horsepower. The Ford 6610 matches it on rated power and weighs 650 lb less, carrying 69 lb per horsepower against 77 lb. The Massey Ferguson 4708M matches it on rated power and weighs 160 lb more. It entered production in 2020, 38 years after the 6710.
| Spec | Ford 6710 | Ford 6610 | Massey Ferguson 4708M |
|---|---|---|---|
| Engine power | 82 hp61.1 kW | 82 hp61.1 kW | 82 hp61.1 kW |
| Operating weight | 6,344 lb2,878 kg | 5,695 lb2,583 kg | 6,506 lb2,951 kg |
| Weight per hp | 77 lb/hp47 kg/kW | 69 lb/hp42 kg/kW | 79 lb/hp48 kg/kW |
| Displacement | 268 ci4.39 L | 268 ci4.39 L | 201 ci3.29 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | Partial Power Shift | Synchromesh | Mechanical Shuttle |
| Drive | 2WD | 2WD | 2WD |
| Years built | 1982-1987 | 1982-1993 | 2020+ |
Calculators
Calculators for the 6710
PTO power
About 68 to 74 PTO hp
Estimated from the 82 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 82 hp tractor can run
Maximum size is about a 9.5 ft rotary cutter or a 8.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
90 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
82 hp is 61.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
6710 vs. Utility median
Ford 6710 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 82 hp | 55 hp | +49% | 73rd |
| Engine Displacement | 268 ci | 183 ci | +46% | 75th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 6,344 lb | 5,303 lb | +20% | 60th |
| Length | 153 in | 137 in | +12% | 68th |
| Width | 76.9 in | 66 in | +17% | 75th |
| Height | 115 in | 94.1 in | +22% | 92nd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Ford models
Other manufacturers
Models with similar horsepower
Gallery

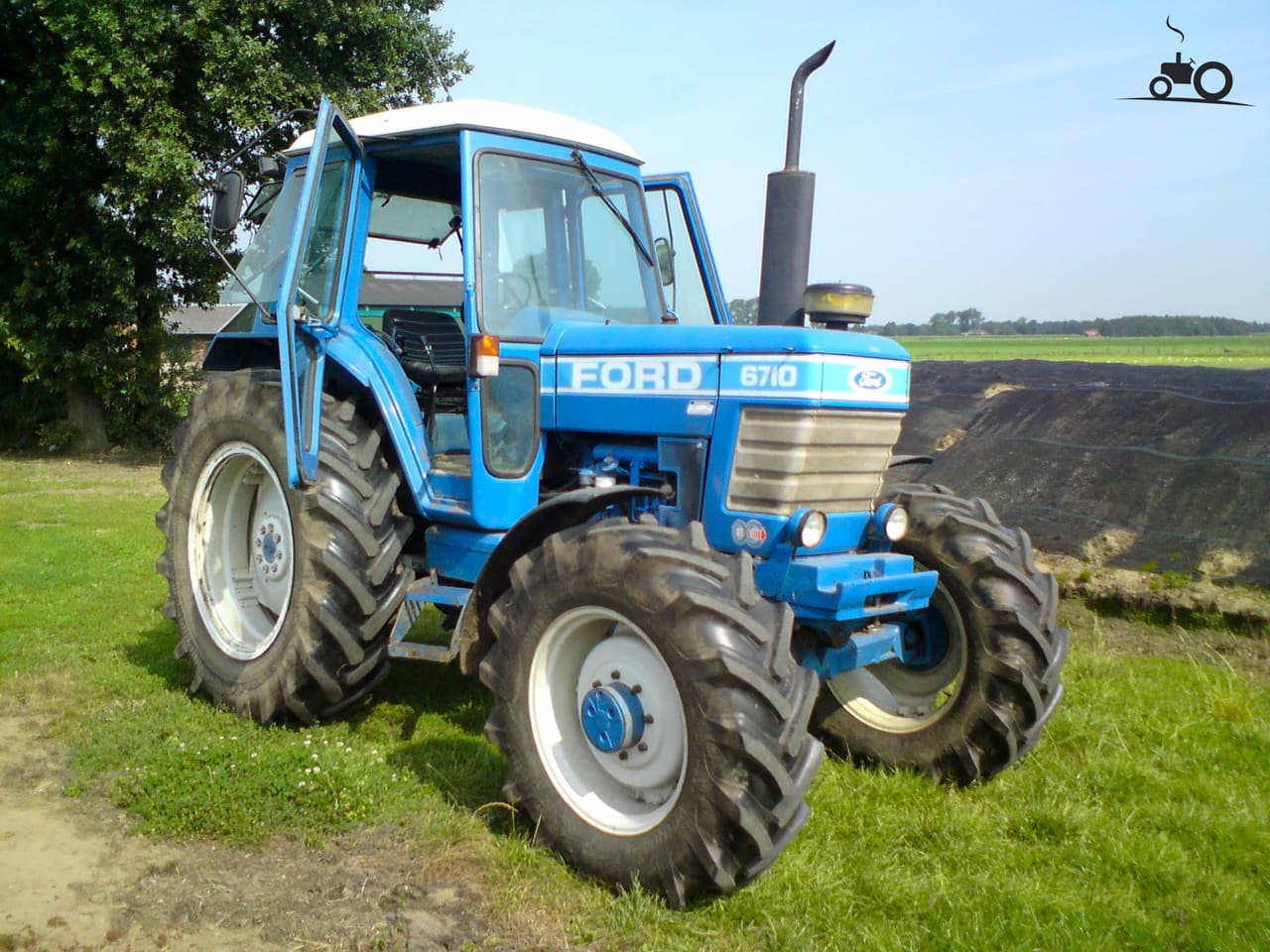

Ford 6710 photos
FAQ
Frequently asked questions
When was the Ford 6710 made?
The Ford 6710 was manufactured from 1982 to 1987.
What hydraulics does the Ford 6710 have?
The Ford 6710 uses an Open Center hydraulic system.
What three-point hitch category does the Ford 6710 use?
The Ford 6710 has a Category II three-point hitch.
What is the engine power output of the Ford 6710?
Rated engine output for the Ford 6710 is 82 hp, delivered by a 4-cylinder engine. The engine displaces 268 ci.
What is the operating weight of the Ford 6710?
The Ford 6710 has an operating weight of about 6,344 lb.
Which transmission does the Ford 6710 use?
The Ford 6710 is equipped with a Partial Power Shift transmission with 16 forward gears.
How do I maintain a Ford 6710?
Routine service for the Ford 6710 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
