Hart-Parr New Hart-Parr
The New Hart-Parr tractor is a sturdy utility machine made by Hart-Parr. It's a 2WD tractor with a manual steering system and a gear transmission. This tractor has 2 forward gears and 1 reverse gear, making it simple to operate. The engine is made by Hart-Parr too, and it runs on gasoline. It has 2 cylinders and is cooled by liquid, which helps keep it running smoothly. One of the standout features of the New Hart-Parr is its very large engine size. At 464.6 cubic inches, it's much bigger than most other tractor engines. The engine runs at a slow 750 RPM, which is lower than average. This tractor is built tough, with steel wheels both front and back. It's quite heavy, weighing 5,158 pounds, which is about average for tractors. The New Hart-Parr is 138 inches long, 75 inches wide, and 60 inches tall, making it a good size for many farm tasks.
Key specifications
- Category
- Utility
- Operating weight
- 5,158 lb
- Transmission
- Gear
Overview
About the Hart-Parr New Hart-Parr
The New Hart-Parr tractor is a sturdy utility machine made by Hart-Parr. It's a 2WD tractor with a manual steering system and a gear transmission. This tractor has 2 forward gears and 1 reverse gear, making it simple to operate. The engine is made by Hart-Parr too, and it runs on gasoline. It has 2 cylinders and is cooled by liquid, which helps keep it running smoothly. One of the standout features of the New Hart-Parr is its very large engine size. At 464.6 cubic inches, it's much bigger than most other tractor engines. The engine runs at a slow 750 RPM, which is lower than average. This tractor is built tough, with steel wheels both front and back. It's quite heavy, weighing 5,158 pounds, which is about average for tractors. The New Hart-Parr is 138 inches long, 75 inches wide, and 60 inches tall, making it a good size for many farm tasks.
Full specifications
Recorded specifications
General
| Manufacturer | Hart-Parr |
|---|---|
| Model | New Hart-Parr |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 5,158lb(2,340 kg) |
Engine
| Make | Hart-Parr |
|---|---|
| Cylinders | 2 |
| Displacement | 464.6ci(7.61 L) |
| Bore | 6.5in(165.1 mm) |
| Stroke | 7in(177.8 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 2 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 138in(3,505 mm) |
|---|---|
| Width | 75in(1,905 mm) |
| Height | 60in(1,524 mm) |
| Operating weight | 5,158lb(2,340 kg) |
Category medians
New Hart-Parr vs. Utility median
Hart-Parr New Hart-Parr compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 465 ci | 183 ci | +154% | 93rd |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 2 | 12 | -83% | 1st |
| Operating Weight | 5,158 lb | 5,303 lb | -3% | 49th |
| Length | 138 in | 137 in | +1% | 52nd |
| Width | 75 in | 66 in | +14% | 70th |
| Height | 60 in | 94.1 in | -36% | 10th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Hart-Parr models
Other manufacturers
Models with similar horsepower
Gallery

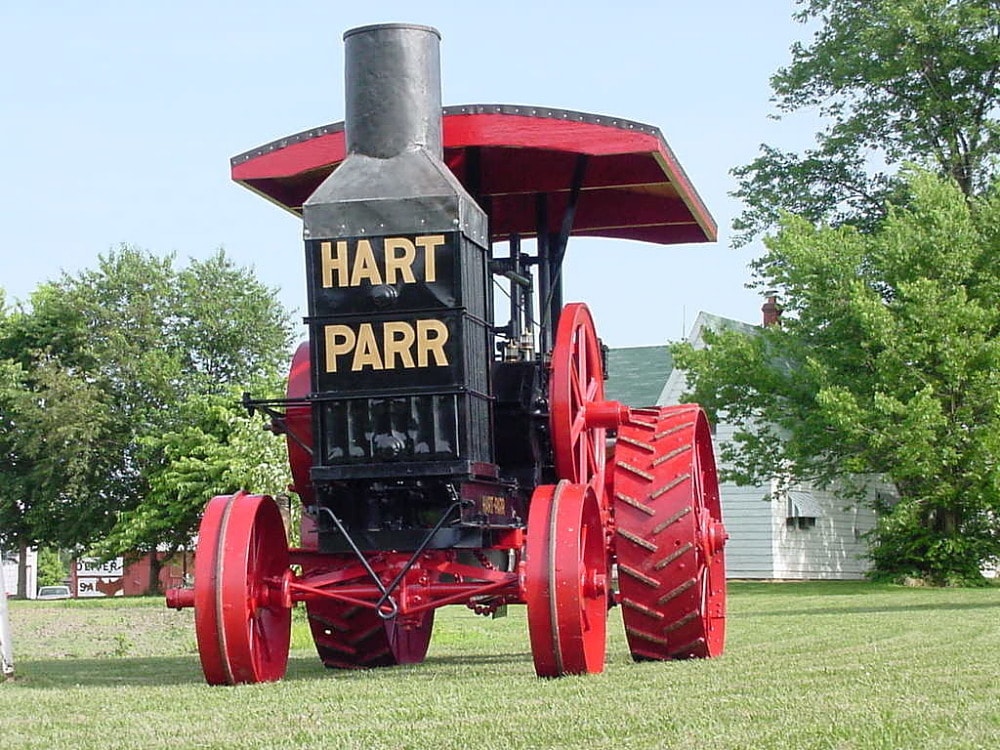

Hart-Parr New Hart-Parr photos
FAQ
Frequently asked questions
What engine configuration does the Hart-Parr New Hart-Parr use?
The Hart-Parr New Hart-Parr is equipped with a 2-cylinder engine displacing 464.6 ci.
How much does the Hart-Parr New Hart-Parr weigh?
The Hart-Parr New Hart-Parr weighs about 5,158 lb in operating condition.
What transmission is in the Hart-Parr New Hart-Parr?
Transmission on the Hart-Parr New Hart-Parr is Gear, with 2 forward speeds.
What maintenance does the Hart-Parr New Hart-Parr require?
The Hart-Parr New Hart-Parr needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
