Huber 40-62

Last Updated: June 2024

Overview

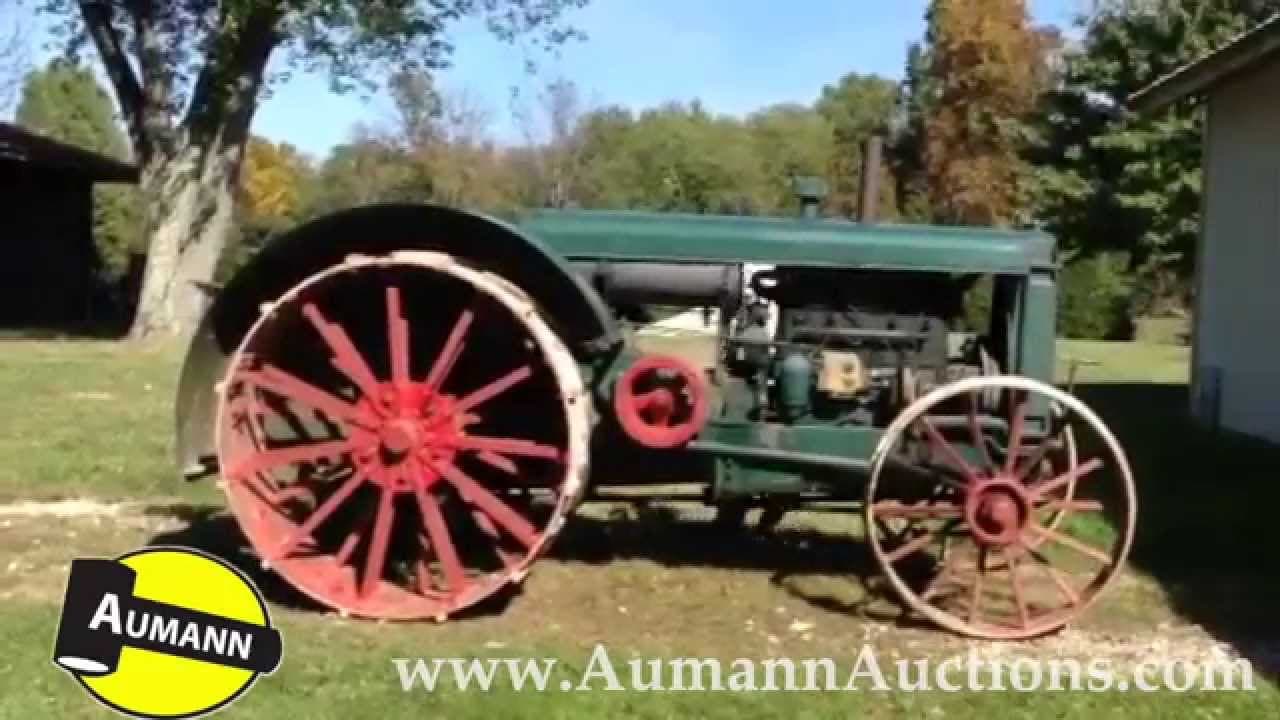

The Huber 40-62 is a standard-tread tractor known for its sturdy design and manual steering. It features a 4-cylinder Stearns gasoline engine with a liquid-cooled system, displacing 618 cubic inches and with a bore and stroke of 5.50x6.50 inches. Rated at 1100 RPMs, it utilizes a dry disc clutch with a simple 2-speed gear transmission offering 2 forward gears and 1 reverse. The 4x2 2WD chassis supports the weight of the tractor, coming in at 9,760 pounds. Characterized by its prominent steel wheels, the tractor has distinctive dimensions with a wheelbase of 95 inches, a length of 160 inches, a width of 88 inches, and a hood height of 62 inches. This model reflects an earlier era of tractor design, where simplicity and durability were key.
Show more...

Key Specifications

Category: Utility, Standard Tread

Transmission: Gear

Drive Type: 2WD

Operating Weight: 9760

Fuel Type: Gasoline

Huber 40-62 vs. Similar Tractors

Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
Stearns
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
-
Cylinders
4
Displacement (ci)
618
Bore (in)
5.5
Stroke (in)
6.5
Rated RPM
1100
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
2
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
160
Width (in)
88
Height (in)
62 (hood height)
Operating Weight (lb)
9760

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
46
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
