AgriculturalPerformance profile
Hurlimann H-5110
The Hurlimann H-5110 is a powerful 2WD tractor designed for farm work. It has a SAME diesel engine with 5 cylinders and 112.7 horsepower. The engine is turbocharged and liquid-cooled, which helps it run smoothly and efficiently. With a length of 174.4 inches and a height of 111.8 inches, this tractor is a good size for many farm tasks. One of the H-5110's strong points is its transmission. It has 24 forward gears and 6 reverse gears, giving the driver lots of options for different jobs. The tractor also has power steering, making it easier to control. It weighs 9,259 pounds, which helps it stay stable during tough work. The three-point hitch at the back lets farmers attach various tools and equipment. With its 18.5-inch ground clearance, the H-5110 can handle rough terrain well. The tractor's wheelbase is 103.9 inches, which adds to its stability and pulling power.
ManufacturerHurlimannPower112.7 hpEngine5-cylTransSynchronized, Creeper
Quick specs
- Category
- Agricultural
- Engine Power Output
- 113hp
- Operating Weight
- 9,259 lb
- Transmission
- Synchronized, Creeper
At a glance
How the H-5110 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
112.7 hp · 51st
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The H-5110 ranks at the 51st percentile for engine power among recorded agricultural tractors.
Overview
About the Hurlimann H-5110
The Hurlimann H-5110 is a powerful 2WD tractor designed for farm work. It has a SAME diesel engine with 5 cylinders and 112.7 horsepower. The engine is turbocharged and liquid-cooled, which helps it run smoothly and efficiently. With a length of 174.4 inches and a height of 111.8 inches, this tractor is a good size for many farm tasks. One of the H-5110's strong points is its transmission. It has 24 forward gears and 6 reverse gears, giving the driver lots of options for different jobs. The tractor also has power steering, making it easier to control. It weighs 9,259 pounds, which helps it stay stable during tough work. The three-point hitch at the back lets farmers attach various tools and equipment. With its 18.5-inch ground clearance, the H-5110 can handle rough terrain well. The tractor's wheelbase is 103.9 inches, which adds to its stability and pulling power.
Full specifications
Every recorded spec
General
| Manufacturer | Hurlimann |
|---|---|
| Model | H-5110 |
| Category | Agricultural tractor |
| Type | 4x2 |
| Operating weight | 9,259lb |
Engine
| Make | SAME |
|---|---|
| Power | 112.7hp |
| Cylinders | 5 |
| Displacement | 347.9ci |
| Bore | 4.33in |
| Stroke | 4.72in |
Transmission
| Type | Synchronized, Creeper |
|---|---|
| Forward gears | 24 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 174.4in |
|---|---|
| Height | 111.8in |
| Operating weight | 9,259lb |
Capacities
| Cooling system | 4.75gal |
|---|
Head to head
H-5110 vs. Agricultural median
How the Hurlimann H-5110 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 113 hp | 110 hp | +2% | 51st |
| Engine Displacement | 348 ci | 336 ci | +4% | 51st |
| Cylinders | 5 | 5.5 | -9% | 50th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 9,259 lb | 10,914 lb | -15% | 41st |
| Length | 174 in | 173 in | +1% | 51st |
| Height | 112 in | 111 in | +1% | 55th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Hurlimann tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hurlimann H-6115 Elite | 115 hp | 10,318 lb | — | Compare → |
| Hurlimann H-6115 Elite XB | 115 hp | 10,870 lb | — | Compare → |
| Hurlimann H-5116 | 110 hp | 11,245 lb | — | Compare → |
| Hurlimann 910.6 XT | 105 hp | 9,459 lb | — | Compare → |
| Hurlimann 910.4 XT | 103 hp | 8,775 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agco LT95A | 111.6 hp | 11,070 lb | — | Compare → |
| Belarus 1025 MIG | 115 hp | 9,469 lb | — | Compare → |
| AGCO LT85A | 110.1 hp | 10,605 lb | — | Compare → |
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
| Agrinar T-110 | 110 hp | — | — | Compare → |
Explore
Hurlimann siblings
Explore
Similar-spec models
Gallery

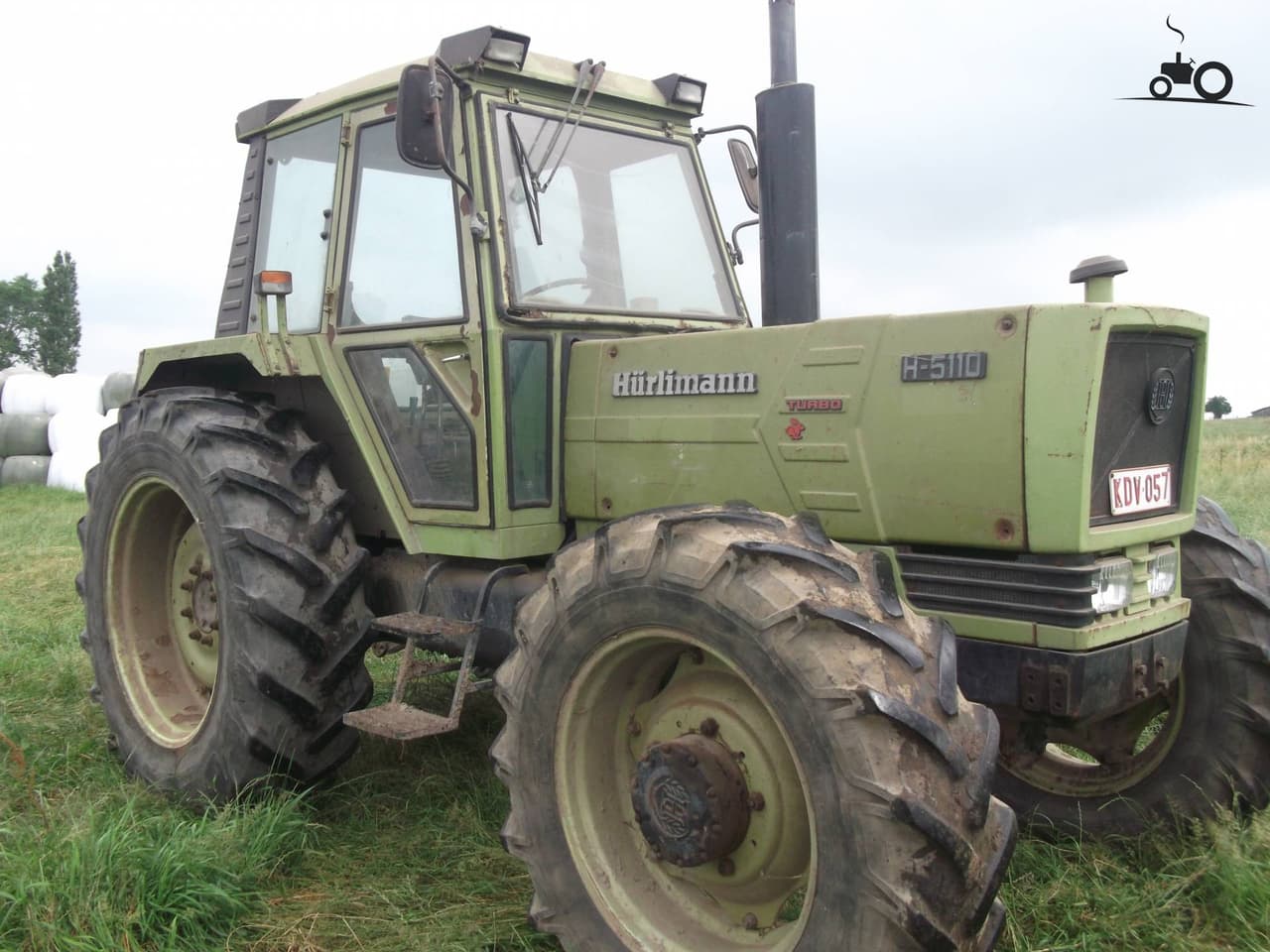

Hurlimann H-5110 photos
FAQ
Common questions
How much horsepower does the Hurlimann H-5110 have?
The Hurlimann H-5110 produces 112.7 hp from its 5-cylinder engine. Engine displacement is 347.9 ci.
How much does the Hurlimann H-5110 weigh?
The Hurlimann H-5110 weighs about 9,259 lb in operating condition.
What transmission is in the Hurlimann H-5110?
Transmission on the Hurlimann H-5110 is Synchronized, Creeper, with 24 forward speeds.
What hitch category is the Hurlimann H-5110?
The Hurlimann H-5110 uses a Category II hitch.
What maintenance does the Hurlimann H-5110 require?
Like any tractor, the Hurlimann H-5110 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
