UtilityPerformance profile
IMT 560
The IMT 560 is a sturdy 2-wheel drive tractor built for farm work. It has a simple design with manual steering and a gear transmission that offers 6 forward speeds and 2 reverse speeds. This gives farmers good control over their work pace. The tractor is powered by an IMT M 34/T engine. This engine runs on diesel fuel and has 4 cylinders. It's cooled by liquid, which helps keep it running smoothly. The engine can produce 59 horsepower at 2250 RPM, making it strong enough for many farm tasks. The tractor starts up easily with an electric starter. It's a good size for getting around the farm, measuring about 157 inches long, 73 inches wide, and 104 inches tall. It weighs about 5,954 pounds, which helps it stay stable during work.
ManufacturerIMTPower59 hpEngine4-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 59hp
- Operating Weight
- 5,954 lb
- Transmission
- Gear
At a glance
How the 560 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
59 hp · 53rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 560 ranks at the 53rd percentile for engine power among recorded utility tractors.
Overview
About the IMT 560
The IMT 560 is a sturdy 2-wheel drive tractor built for farm work. It has a simple design with manual steering and a gear transmission that offers 6 forward speeds and 2 reverse speeds. This gives farmers good control over their work pace. The tractor is powered by an IMT M 34/T engine. This engine runs on diesel fuel and has 4 cylinders. It's cooled by liquid, which helps keep it running smoothly. The engine can produce 59 horsepower at 2250 RPM, making it strong enough for many farm tasks. The tractor starts up easily with an electric starter. It's a good size for getting around the farm, measuring about 157 inches long, 73 inches wide, and 104 inches tall. It weighs about 5,954 pounds, which helps it stay stable during work.
Full specifications
Every recorded spec
General
| Manufacturer | IMT |
|---|---|
| Model | 560 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 5,954lb |
Engine
| Make | IMT |
|---|---|
| Model | M 34/T |
| Power | 59hp |
| Cylinders | 4 |
| Displacement | 203.2ci |
| Bore | 3.6in |
| Stroke | 5in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 156.9in |
|---|---|
| Width | 73.2in |
| Height | 103.9in |
| Operating weight | 5,954lb |
Tires
| Front | 7.50-16 |
|---|---|
| Rear | 16.9-28 |
Head to head
560 vs. Utility median
How the IMT 560 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 59 hp | 55 hp | +7% | 53rd |
| Engine Displacement | 203 ci | 183 ci | +11% | 56th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 6 | 12 | -50% | 11th |
| Operating Weight | 5,954 lb | 5,303 lb | +12% | 56th |
| Length | 157 in | 137 in | +15% | 73rd |
| Width | 73.2 in | 66 in | +11% | 68th |
| Height | 104 in | 94.1 in | +10% | 74th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared IMT tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT55A | 58.89 hp | 6,400 lb | — | Compare → |
| Allis Chalmers 6070 | 58.35 hp | 7,460 lb | — | Compare → |
| Barreiros R-500 B | 60 hp | — | — | Compare → |
| Belarus 406 | 58 hp | 7,056 lb | — | Compare → |
| Belarus 400A | 57 hp | 6,600 lb | — | Compare → |
Explore
IMT siblings
Explore
Similar-spec models
Gallery

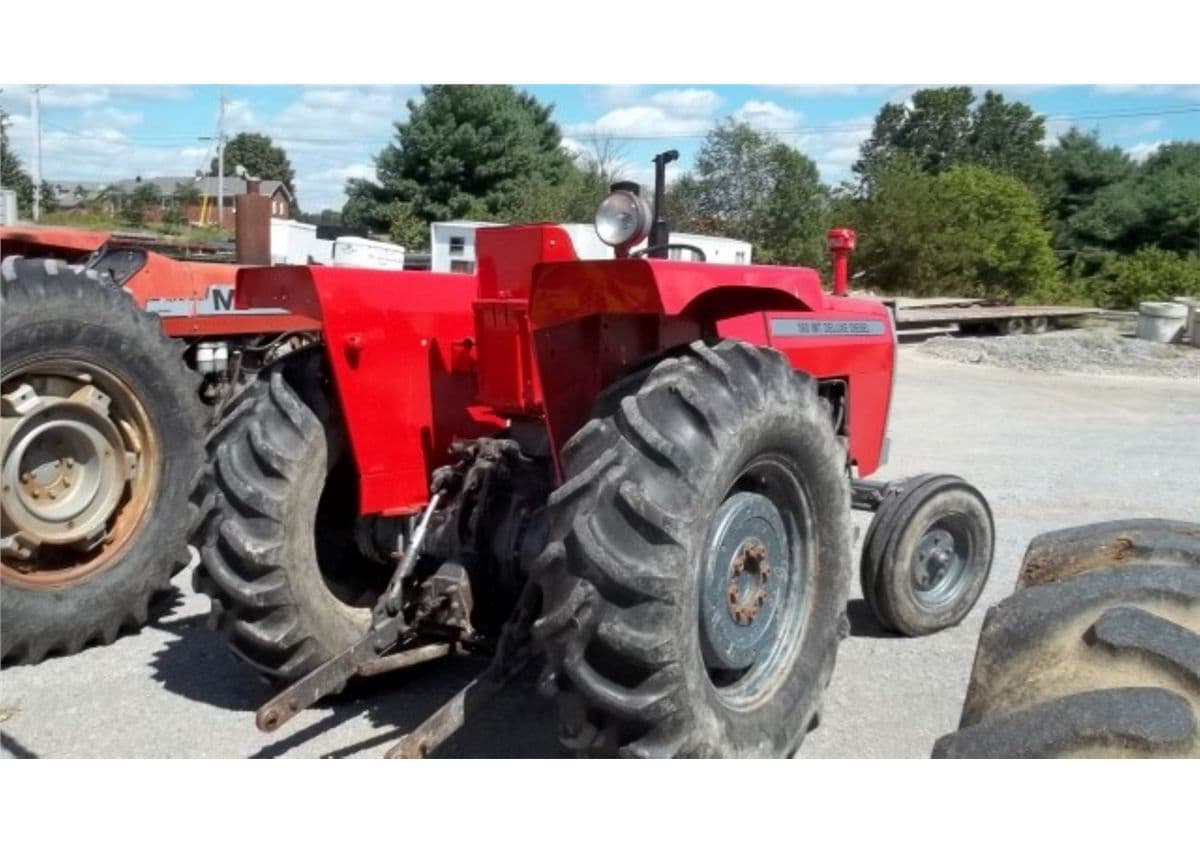

IMT 560 photos
FAQ
Common questions
What is the engine power output of the IMT 560?
Rated engine output for the IMT 560 is 59 hp, delivered by a 4-cylinder engine. The engine displaces 203.2 ci.
Which transmission does the IMT 560 use?
The IMT 560 is equipped with a Gear transmission with 6 forward gears.
What are the factory tire sizes for the IMT 560?
The IMT 560 comes with 7.50-16 front tires and 16.9-28 rear tires.
What is the operating weight of the IMT 560?
In working trim, the IMT 560 comes in at roughly 5,954 lb.
How do I maintain a IMT 560?
Routine service for the IMT 560 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
