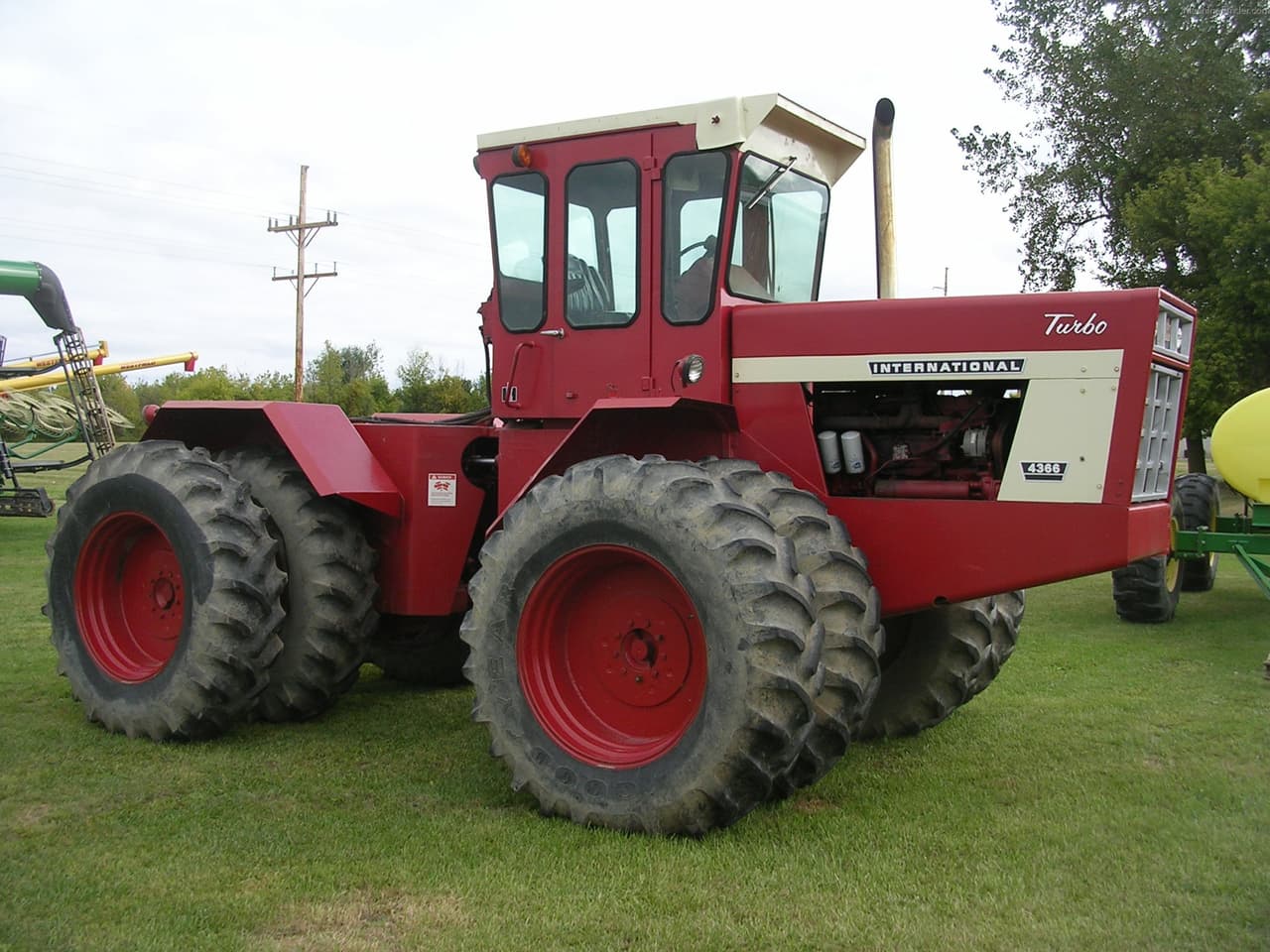

International Harvester 4366
The International Harvester 4366 is a powerful tractor built for big jobs on the farm. It has a strong diesel engine made by International Harvester. This engine, called the DT-466, has 6 cylinders and can produce 225 horsepower. It's turbocharged, which means it can work extra hard when needed. This tractor is big and heavy, weighing 21,690 pounds. It's 241 inches long, 116 inches wide, and 128 inches tall. The 4366 has large tires, with both front and rear tires measuring 28.1-26. It has a special steering system called hydrostatic power, which makes it easier to control. The tractor has 10 forward gears and 2 reverse gears, allowing the driver to choose the right speed for different tasks. It also has an open center hydraulic system, which helps power attachments and tools.

Key specifications
- Category
- Agricultural
- Engine power
- 225hp
- Operating weight
- 21,690 lb
- Transmission
- Syncromesh
Category comparison
4366 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
This model
The 4366 ranks at the 84th percentile for engine power among recorded agricultural tractors.
Overview
About the International Harvester 4366
The International Harvester 4366 is a powerful tractor built for big jobs on the farm. It has a strong diesel engine made by International Harvester. This engine, called the DT-466, has 6 cylinders and can produce 225 horsepower. It's turbocharged, which means it can work extra hard when needed. This tractor is big and heavy, weighing 21,690 pounds. It's 241 inches long, 116 inches wide, and 128 inches tall. The 4366 has large tires, with both front and rear tires measuring 28.1-26. It has a special steering system called hydrostatic power, which makes it easier to control. The tractor has 10 forward gears and 2 reverse gears, allowing the driver to choose the right speed for different tasks. It also has an open center hydraulic system, which helps power attachments and tools.
Full specifications
Recorded specifications
General
| Manufacturer | International Harvester |
|---|---|
| Model | 4366 |
| Category | Agricultural tractor |
| Operating weight | 21,690lb(9,838 kg) |
Engine
| Make | International Harvester |
|---|---|
| Model | DT-466 |
| Power | 225hp(167.8 kW) |
| Cylinders | 6 |
| Displacement | 466ci(7.64 L) |
| Bore | 4.3in(109.2 mm) |
| Stroke | 5.35in(135.9 mm) |
Transmission
| Type | Syncromesh |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Steering | Hydrostatic Power |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 241in(6,121 mm) |
|---|---|
| Width | 116in(2,946 mm) |
| Height | 128in(3,251 mm) |
| Operating weight | 21,690lb(9,838 kg) |
Tires
| Front | 28.1-26ConvertShop size |
|---|---|
| Rear | 28.1-26ConvertShop size |
Capacities
| Cooling system | 9gal(34.07 L) |
|---|
Closest alternatives
4366 compared with the nearest models by horsepower
Among agricultural tractors, the Allis Chalmers HD21 and the CaseIH Puma 225 are closest to the International Harvester 4366 in rated horsepower. The Allis Chalmers HD21 matches it on rated power and weighs 23,810 lb more, so it carries more weight per horsepower, which helps traction in draft work. The CaseIH Puma 225 matches it on rated power and weighs 5,190 lb less, carrying 73 lb per horsepower against 96 lb.
| Spec | International Harvester 4366 | Allis Chalmers HD21 | CaseIH Puma 225 |
|---|---|---|---|
| Engine power | 225 hp167.8 kW | 225 hp167.8 kW | 225 hp167.8 kW |
| Operating weight | 21,690 lb9,838 kg | 45,500 lb20,638 kg | 16,500 lb7,484 kg |
| Weight per hp | 96 lb/hp59 kg/kW | 202 lb/hp123 kg/kW | 73 lb/hp45 kg/kW |
| Displacement | 466 ci7.64 L | 844 ci13.83 L | 411 ci6.74 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Syncromesh | Torque Converter | Continuously variable transmission (CVT) |
Calculators
Calculators for the 4366
PTO power
About 187 to 203 PTO hp
Estimated from the 225 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 225 hp tractor can run
Maximum size is about a 26.5 ft rotary cutter or a 23 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
112 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
225 hp is 167.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 28.1-26 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Parts and manuals
Parts and manuals for the International Harvester 4366
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the International Harvester DT-466Amazon
Fits the International Harvester DT-466 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the International Harvester DT-466Amazon
Fits the International Harvester DT-466 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the International Harvester DT-466Amazon
Fits the International Harvester DT-466 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the International Harvester DT-466Amazon
Fits the International Harvester DT-466 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- International Harvester 4366 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- International Harvester 4366 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- International Harvester 4366 service manualAmazon
Shop and repair manuals for this model.
Tires
- 28.1-26 tiresAmazon
Listed front and rear tire size for the International Harvester 4366.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
4366 vs. Agricultural median
International Harvester 4366 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 225 hp | 110 hp | +105% | 84th |
| Engine Displacement | 466 ci | 336 ci | +39% | 84th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 10 | 16 | -37% | 23rd |
| Operating Weight | 21,690 lb | 10,914 lb | +99% | 88th |
| Length | 241 in | 173 in | +39% | 95th |
| Width | 116 in | 79.5 in | +46% | 94th |
| Height | 128 in | 111 in | +16% | 87th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 497–1,130 models).
Same manufacturer
Other International Harvester models
Other manufacturers
Models with similar horsepower
Gallery
International Harvester 4366 photos


FAQ
Frequently asked questions
How much horsepower does the International Harvester 4366 have?
The International Harvester 4366 produces 225 hp from its 6-cylinder engine. Engine displacement is 466 ci.
What transmission is in the International Harvester 4366?
Transmission on the International Harvester 4366 is Syncromesh, with 10 forward speeds.
What type of hydraulic system does the International Harvester 4366 use?
Hydraulics on the International Harvester 4366 are Open Center.
What size tires does the International Harvester 4366 use?
The International Harvester 4366 is fitted with 28.1-26 front tires and 28.1-26 rear tires from the factory.
How much does the International Harvester 4366 weigh?
The International Harvester 4366 weighs about 21,690 lb in operating condition.
What maintenance does the International Harvester 4366 require?
The International Harvester 4366 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
