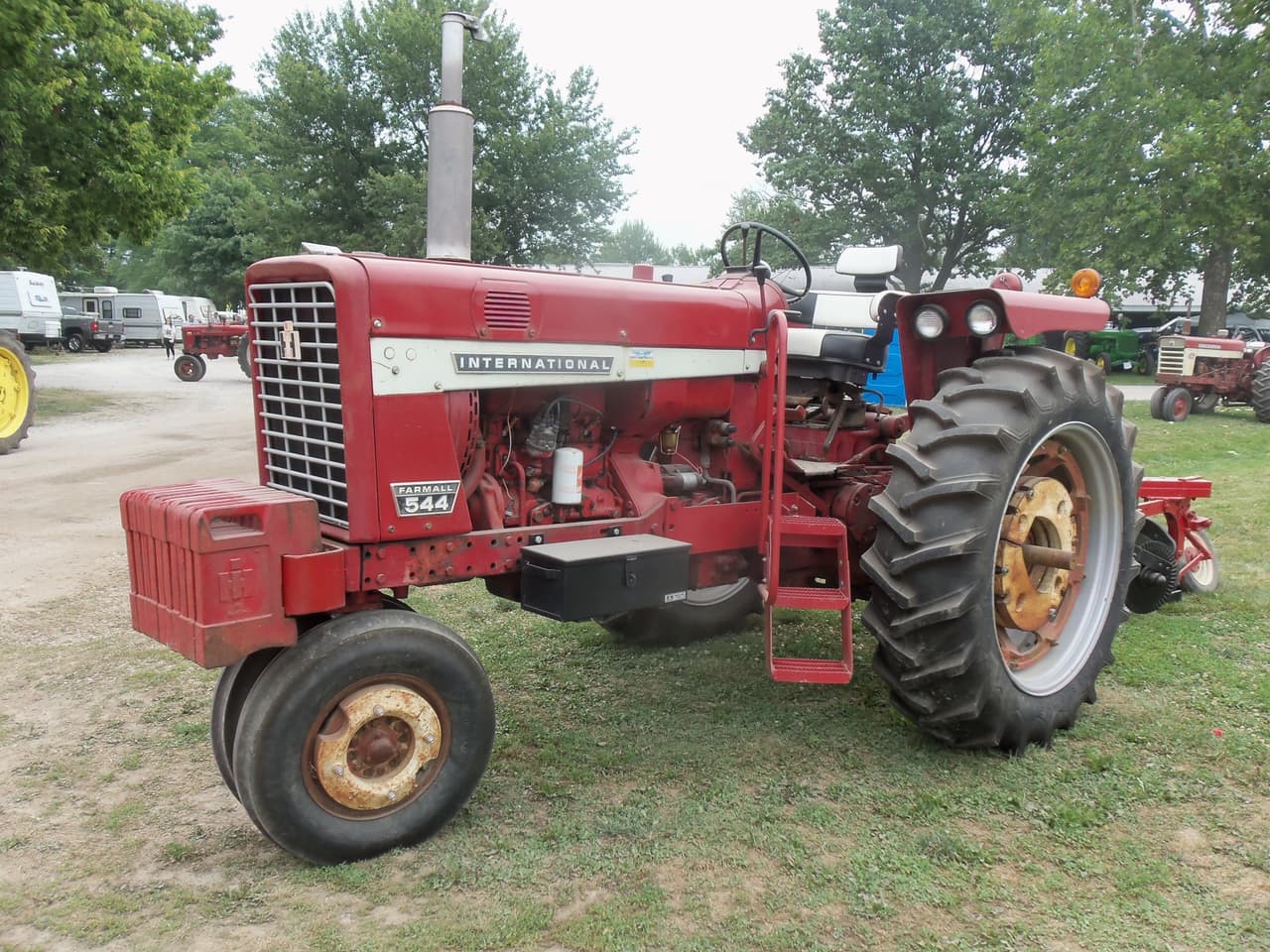

International Harvester 544
The International Harvester 544 is a utility tractor that was made from 1968 to 1973. It's a 2WD tractor with power steering, which makes it easy to drive. The tractor has a gear transmission with 5 forward gears and 1 reverse gear, giving farmers good control over their speed. This tractor is powered by a 4-cylinder diesel engine made by International Harvester. The engine is liquid-cooled and has an above-average displacement of 238.5 ci. It runs at 2400 rpm, which is about average for tractors. The 544 is quite heavy, weighing 7195 lb, which is above average for its class. It has a Category II hitch and an independent PTO with two speeds: 540 rpm and 1000 rpm. The tractor has an open operator station and uses disc brakes for stopping.
ManufacturerInternational HarvesterEngine4-cylTransGear
Quick specs
- Category
- Utility
- Operating Weight
- 7,195 lb
- Transmission
- Gear
Overview
About the International Harvester 544
The International Harvester 544 is a utility tractor that was made from 1968 to 1973. It's a 2WD tractor with power steering, which makes it easy to drive. The tractor has a gear transmission with 5 forward gears and 1 reverse gear, giving farmers good control over their speed. This tractor is powered by a 4-cylinder diesel engine made by International Harvester. The engine is liquid-cooled and has an above-average displacement of 238.5 ci. It runs at 2400 rpm, which is about average for tractors. The 544 is quite heavy, weighing 7195 lb, which is above average for its class. It has a Category II hitch and an independent PTO with two speeds: 540 rpm and 1000 rpm. The tractor has an open operator station and uses disc brakes for stopping.
Full specifications
Every recorded spec
General
| Manufacturer | International Harvester |
|---|---|
| Model | 544 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1968–1973 |
| Operating weight | 7,195lb |
Engine
| Make | International Harvester |
|---|---|
| Model | D239 |
| Cylinders | 4 |
| Displacement | 238.5ci |
| Bore | 3.86in |
| Stroke | 5.08in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Brakes | Disc |
| Cab | Open operator station |
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 138in |
|---|---|
| Width | 71in |
| Height | 62in |
| Operating weight | 7,195lb |
Capacities
| Cooling system | 3.75gal |
|---|
Head to head
544 vs. Utility median
How the International Harvester 544 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 239 ci | 183 ci | +30% | 65th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 5 | 12 | -58% | 6th |
| Operating Weight | 7,195 lb | 5,303 lb | +36% | 69th |
| Length | 138 in | 137 in | +1% | 52nd |
| Width | 71 in | 66 in | +8% | 62nd |
| Height | 62 in | 94.1 in | -34% | 11th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared International Harvester tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| International Harvester 100 | — | 2,600 lb | — | Compare → |
| International Harvester 1026 | 127 hp | 11,100 lb | — | Compare → |
| International Harvester 1255 | 125 hp | 12,215 lb | — | Compare → |
| International Harvester 1256 | 113 hp | 10,405 lb | 1967–1969 | Compare → |
| International Harvester 130 | — | 2,800 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
International Harvester siblings
Brand sibling
Brand sibling
Brand sibling
Brand siblingExplore
Similar-spec models
Gallery
International Harvester 544 photos
FAQ
Common questions
What years was the International Harvester 544 manufactured?
Production of the International Harvester 544 ran from 1968 through 1973.
What hitch category is the International Harvester 544?
The International Harvester 544 uses a Category II hitch.
How many cylinders does the International Harvester 544 have?
The International Harvester 544 runs a 4-cylinder engine with a displacement of 238.5 ci.
What is the working weight of the International Harvester 544?
The operating weight of the International Harvester 544 is approximately 7,195 lb.
What type of transmission does the International Harvester 544 have?
The International Harvester 544 uses a Gear transmission offering 5 forward gears.
What routine service does the International Harvester 544 need?
Regular maintenance for the International Harvester 544 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
