UtilityPerformance profile
International Harvester 745
The International Harvester 745 is a powerful 2WD tractor designed for farm work. It has a strong diesel engine made by International Harvester. The engine has 4 cylinders and can produce 72 horsepower. This tractor is built to handle tough jobs on the farm. The 745 comes with a gear transmission that has 16 forward gears and 8 reverse gears, giving the driver lots of options. It has big agricultural tires in the front and back for good traction in fields. The tractor is about 12 feet long, 6.5 feet wide, and 8 feet tall. It weighs 6,724 pounds, which helps it stay stable during work. The 745 has a three-point hitch in the back for attaching tools and a rear PTO that spins at 540 rpm for powering equipment. For safety, it has a ROPS (Roll-Over Protection Structure) to protect the driver.
ManufacturerInternational HarvesterPower72 hpEngine4-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 72hp
- Operating Weight
- 6,724 lb
- Transmission
- Gear
At a glance
How the 745 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
72 hp · 65th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 745 ranks at the 65th percentile for engine power among recorded utility tractors.
Overview
About the International Harvester 745
The International Harvester 745 is a powerful 2WD tractor designed for farm work. It has a strong diesel engine made by International Harvester. The engine has 4 cylinders and can produce 72 horsepower. This tractor is built to handle tough jobs on the farm. The 745 comes with a gear transmission that has 16 forward gears and 8 reverse gears, giving the driver lots of options. It has big agricultural tires in the front and back for good traction in fields. The tractor is about 12 feet long, 6.5 feet wide, and 8 feet tall. It weighs 6,724 pounds, which helps it stay stable during work. The 745 has a three-point hitch in the back for attaching tools and a rear PTO that spins at 540 rpm for powering equipment. For safety, it has a ROPS (Roll-Over Protection Structure) to protect the driver.
Full specifications
Every recorded spec
General
| Manufacturer | International Harvester |
|---|---|
| Model | 745 |
| Category | Utility tractor |
| Type | 2WD |
| Operating weight | 6,724lb |
Engine
| Make | International Harvester |
|---|---|
| Model | D-239 |
| Power | 72hp |
| Cylinders | 4 |
| Displacement | 238.65ci |
| Bore | 3.88in |
| Stroke | 5.06in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 2WD |
|---|---|
| Drive | 2WD |
| Cab | ROPS |
Power take-off
| Rear PTO | Rear PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 148.4in |
|---|---|
| Width | 80.3in |
| Height | 100in |
| Operating weight | 6,724lb |
Head to head
745 vs. Utility median
How the International Harvester 745 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 72 hp | 55 hp | +31% | 65th |
| Engine Displacement | 239 ci | 183 ci | +30% | 66th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 6,724 lb | 5,303 lb | +27% | 64th |
| Length | 148 in | 137 in | +9% | 64th |
| Width | 80.3 in | 66 in | +22% | 82nd |
| Height | 100 in | 94.1 in | +6% | 66th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared International Harvester tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| International Harvester 744 | 72 hp | — | — | Compare → |
| International Harvester 685 | 71.8 hp | 6,703 lb | — | Compare → |
| International Harvester 560 | 72.5 hp | 6,563 lb | 1958–1963 | Compare → |
| International Harvester 884 | 73 hp | 5,905 lb | 1979–1984 | Compare → |
| International Harvester 844 | 73.8 hp | 6,305 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
| Antonio Carraro SX 7800S | 71 hp | 4,773 lb | — | Compare → |
| Antonio Carraro TGF 7800S | 71 hp | 5,093 lb | — | Compare → |
| Antonio Carraro TRX 7800S | 71 hp | 4,806 lb | — | Compare → |
Explore
International Harvester siblings
Brand sibling
Brand siblingExplore
Similar-spec models
Gallery

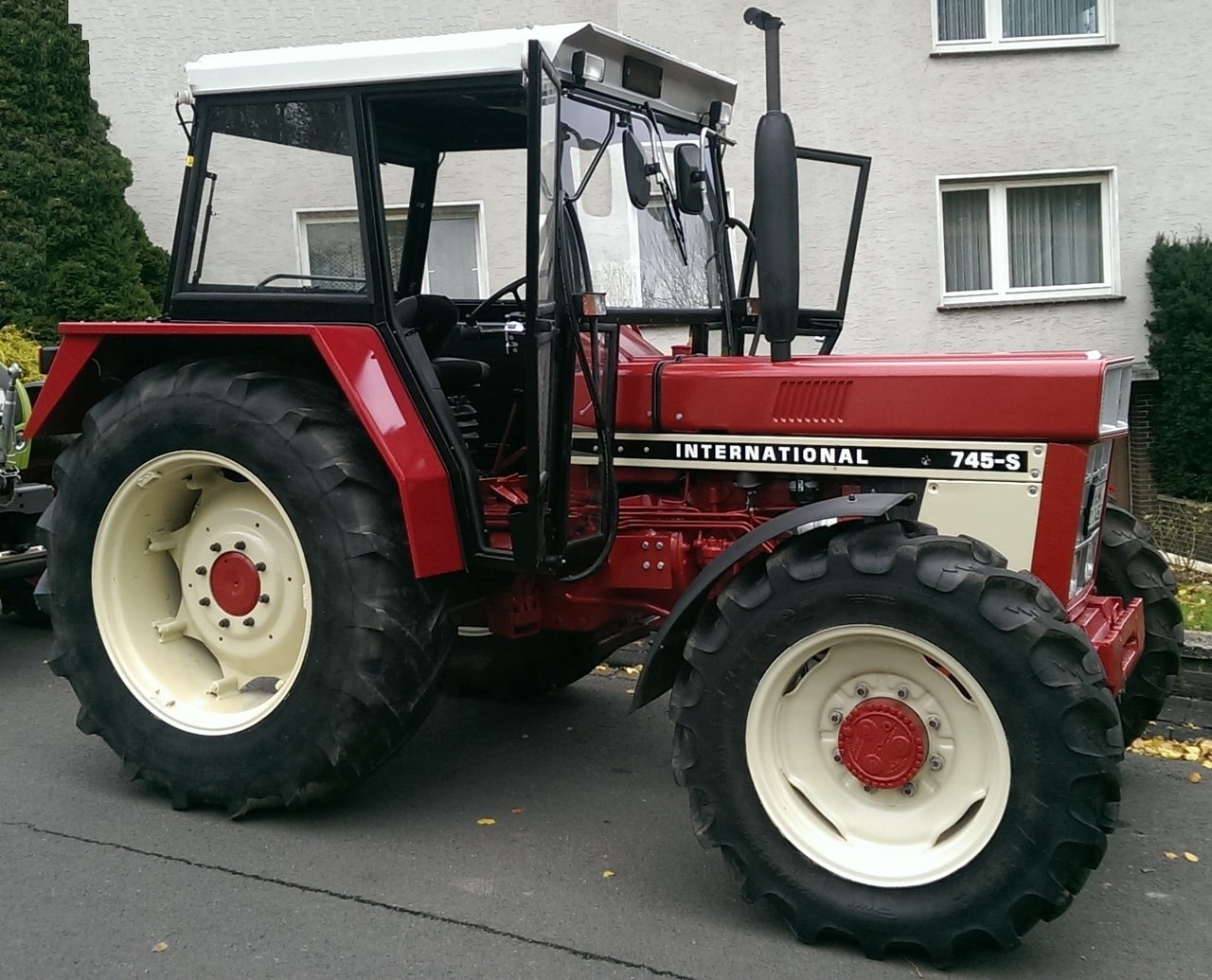

International Harvester 745 photos
FAQ
Common questions
How powerful is the International Harvester 745?
The International Harvester 745 has an engine power output of 72 hp. It is powered by a 4-cylinder engine displacing 238.65 ci.
What three-point hitch category does the International Harvester 745 use?
The International Harvester 745 has a Category II three-point hitch.
What is the working weight of the International Harvester 745?
The operating weight of the International Harvester 745 is approximately 6,724 lb.
What type of transmission does the International Harvester 745 have?
The International Harvester 745 uses a Gear transmission offering 16 forward gears.
What routine service does the International Harvester 745 need?
Regular maintenance for the International Harvester 745 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
