Brand siblingStandard Tread
International Harvester Mogul 45
The International Harvester Mogul 45 is a big, old-fashioned tractor from the early days of farming machines. It has a 2-wheel drive system and uses manual steering, which means the driver has to use their own strength to turn the wheels. The tractor has a simple gear transmission with just one forward gear and one reverse gear. Under the hood, the Mogul 45 has a large gasoline engine made by International Harvester. This engine has two cylinders laid out side-by-side and is cooled by liquid. It's a big engine, measuring 1701 cubic inches, with a bore of 9.5 inches and a stroke of 12 inches. The engine runs at a slow speed of 375 rpm. The tractor is very heavy, weighing 18,500 pounds, and it's quite large too. It's 216 inches long, 110 inches wide, and 118 inches tall. Instead of rubber tires, it has steel wheels, with big ones at the back and smaller ones in front.
ManufacturerInternational HarvesterEngine2-cylTransGear
Quick specs
- Category
- Standard Tread
- Operating Weight
- 18,500 lb
- Transmission
- Gear
Overview
About the International Harvester Mogul 45
The International Harvester Mogul 45 is a big, old-fashioned tractor from the early days of farming machines. It has a 2-wheel drive system and uses manual steering, which means the driver has to use their own strength to turn the wheels. The tractor has a simple gear transmission with just one forward gear and one reverse gear. Under the hood, the Mogul 45 has a large gasoline engine made by International Harvester. This engine has two cylinders laid out side-by-side and is cooled by liquid. It's a big engine, measuring 1701 cubic inches, with a bore of 9.5 inches and a stroke of 12 inches. The engine runs at a slow speed of 375 rpm. The tractor is very heavy, weighing 18,500 pounds, and it's quite large too. It's 216 inches long, 110 inches wide, and 118 inches tall. Instead of rubber tires, it has steel wheels, with big ones at the back and smaller ones in front.
Full specifications
Every recorded spec
General
| Manufacturer | International Harvester |
|---|---|
| Model | Mogul 45 |
| Category | Standard Tread tractor |
| Type | 4x2 2WD |
| Operating weight | 18,500lb |
Engine
| Make | International Harvester |
|---|---|
| Cylinders | 2 |
| Displacement | 1,701ci |
| Bore | 9.5in |
| Stroke | 12in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 1 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 216in |
|---|---|
| Width | 110in |
| Height | 118in |
| Operating weight | 18,500lb |
Head to head
Mogul 45 vs. Standard Tread median
How the International Harvester Mogul 45 compares to other Standard Tread tractors
| Spec | This model | Standard Tread median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 1,701 ci | 382 ci | +346% | 98th |
| Cylinders | 2 | 4 | -50% | 23rd |
| Forward Gears | 1 | 4 | -75% | 3rd |
| Operating Weight | 18,500 lb | 6,834 lb | +171% | 93rd |
| Length | 216 in | 137 in | +58% | 96th |
| Width | 110 in | 72.4 in | +52% | 97th |
| Height | 118 in | 72.3 in | +63% | 92nd |
Medians and percentiles are computed from the standard tread tractors in our database with a recorded value for each spec (sample sizes 233–367 models).
Compare to tractors with similar specs
- International Harvester Mogul 45 vs. International Harvester Mogul 30-60 →
- International Harvester Mogul 45 vs. Advance-Rumely OilPull S 30/60 →
- International Harvester Mogul 45 vs. Advance-Rumely OilPull Z 40/60 →
- International Harvester Mogul 45 vs. Twin City 60-95 →
- International Harvester Mogul 45 vs. Advance-Rumely OilPull B 25/45 →
Commonly compared International Harvester tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| International Harvester 10-20 Titan | — | 5,525 lb | — | Compare → |
| International Harvester 1256 | 113 hp | 10,405 lb | 1967–1969 | Compare → |
| International Harvester 1456 | 130 hp | 12,800 lb | — | Compare → |
| International Harvester 15-30 | — | 8,990 lb | — | Compare → |
| International Harvester 560 | 72.5 hp | 6,563 lb | 1958–1963 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
International Harvester siblings
Brand sibling
Brand sibling
Brand siblingExplore
Similar-spec models
Gallery

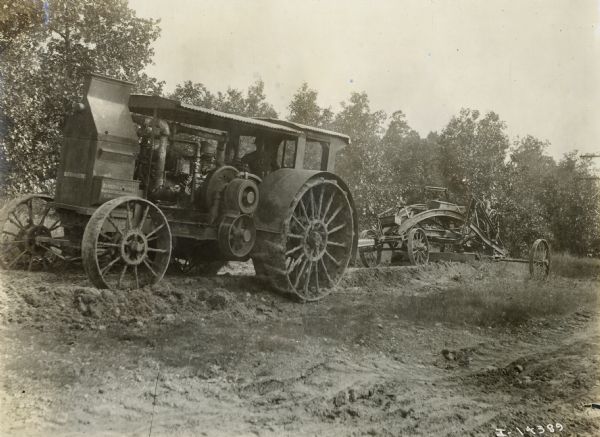

International Harvester Mogul 45 photos
FAQ
Common questions
What engine configuration does the International Harvester Mogul 45 use?
The International Harvester Mogul 45 is equipped with a 2-cylinder engine displacing 1,701 ci.
What is the working weight of the International Harvester Mogul 45?
The operating weight of the International Harvester Mogul 45 is approximately 18,500 lb.
What type of transmission does the International Harvester Mogul 45 have?
The International Harvester Mogul 45 uses a Gear transmission offering 1 forward gears.
What routine service does the International Harvester Mogul 45 need?
Regular maintenance for the International Harvester Mogul 45 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
