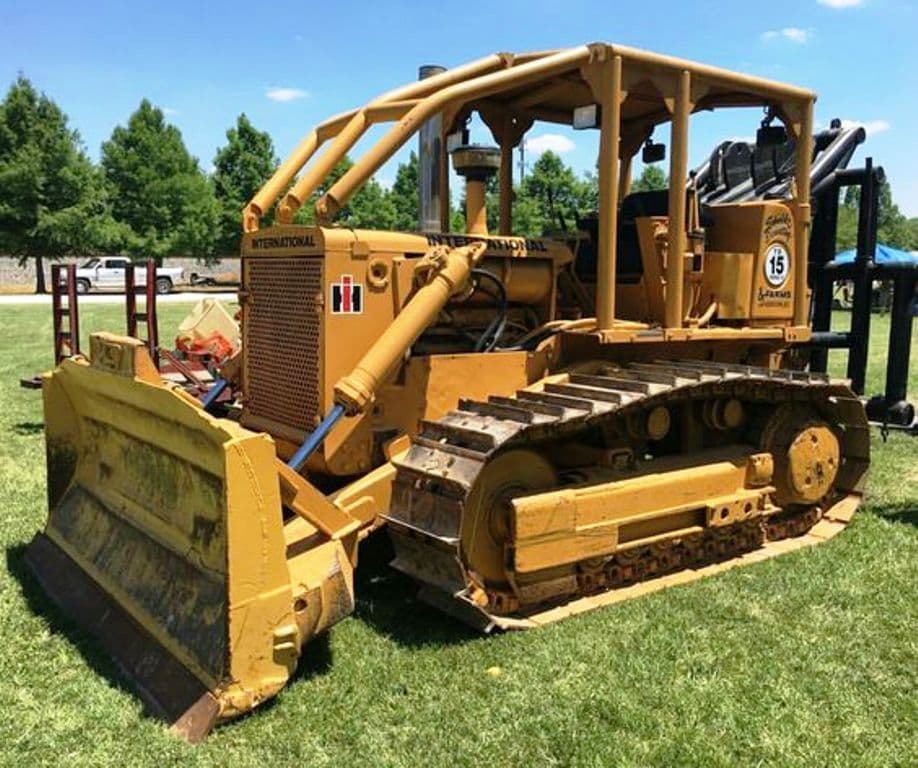

International Harvester TD-15
The International Harvester TD-15 is a powerful tractor built for tough jobs. It has a big diesel engine with 6 cylinders that can handle heavy work. The engine is liquid-cooled, which helps it stay at the right temperature while working hard. This tractor has a shuttle transmission with 6 forward gears and 6 reverse gears, making it easy to change direction when needed. The TD-15 is a large machine, measuring 150.75 inches long, 92 inches wide, and 93.5 inches tall. It weighs 22,540 pounds, which helps it stay stable during big tasks. The engine has a displacement of 554 cubic inches, which is quite large for a tractor. It also has a high compression ratio of 15.95:1, which means it can get a lot of power from its fuel. The tractor's cooling system can hold 76 quarts of coolant, helping it stay cool even in hot weather or during long work days.
ManufacturerInternational HarvesterEngine6-cylTransShuttle
Quick specs
- Category
- Standard Tread
- Operating Weight
- 22,540 lb
- Transmission
- Shuttle
Overview
About the International Harvester TD-15
The International Harvester TD-15 is a powerful tractor built for tough jobs. It has a big diesel engine with 6 cylinders that can handle heavy work. The engine is liquid-cooled, which helps it stay at the right temperature while working hard. This tractor has a shuttle transmission with 6 forward gears and 6 reverse gears, making it easy to change direction when needed. The TD-15 is a large machine, measuring 150.75 inches long, 92 inches wide, and 93.5 inches tall. It weighs 22,540 pounds, which helps it stay stable during big tasks. The engine has a displacement of 554 cubic inches, which is quite large for a tractor. It also has a high compression ratio of 15.95:1, which means it can get a lot of power from its fuel. The tractor's cooling system can hold 76 quarts of coolant, helping it stay cool even in hot weather or during long work days.
Full specifications
Every recorded spec
General
| Manufacturer | International Harvester |
|---|---|
| Model | TD-15 |
| Category | Standard Tread tractor |
| Operating weight | 22,540lb |
Engine
| Make | International Harvester |
|---|---|
| Cylinders | 6 |
| Displacement | 554ci |
| Bore | 4.63in |
| Stroke | 5.5in |
Transmission
| Type | Shuttle |
|---|---|
| Forward gears | 6 |
| Reverse gears | 6 |
Dimensions
| Length | 150.75in |
|---|---|
| Width | 92in |
| Height | 93.5in |
| Operating weight | 22,540lb |
Capacities
| Cooling system | 19gal |
|---|
Head to head
TD-15 vs. Standard Tread median
How the International Harvester TD-15 compares to other Standard Tread tractors
| Spec | This model | Standard Tread median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 554 ci | 382 ci | +45% | 73rd |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 6 | 4 | +50% | 79th |
| Operating Weight | 22,540 lb | 6,834 lb | +230% | 97th |
| Length | 151 in | 137 in | +10% | 71st |
| Width | 92 in | 72.4 in | +27% | 84th |
| Height | 93.5 in | 72.3 in | +29% | 78th |
Medians and percentiles are computed from the standard tread tractors in our database with a recorded value for each spec (sample sizes 233–367 models).
Compare to tractors with similar specs
- International Harvester TD-15 vs. Caterpillar D5 SA Special Application →
- International Harvester TD-15 vs. CaseIH MX220 Magnum →
- International Harvester TD-15 vs. Massey Ferguson 9240 →
- International Harvester TD-15 vs. AGCO Corporation 8810 →
- International Harvester TD-15 vs. Caterpillar D5B SA Special Application →
Commonly compared International Harvester tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| International Harvester 10-20 Titan | — | 5,525 lb | — | Compare → |
| International Harvester 1256 | 113 hp | 10,405 lb | 1967–1969 | Compare → |
| International Harvester 1456 | 130 hp | 12,800 lb | — | Compare → |
| International Harvester 15-30 | — | 8,990 lb | — | Compare → |
| International Harvester 560 | 72.5 hp | 6,563 lb | 1958–1963 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
International Harvester siblings
Brand sibling
Brand sibling
Brand siblingExplore
Similar-spec models
Gallery
International Harvester TD-15 photos
FAQ
Common questions
How many cylinders does the International Harvester TD-15 have?
The International Harvester TD-15 runs a 6-cylinder engine with a displacement of 554 ci.
What type of transmission does the International Harvester TD-15 have?
The International Harvester TD-15 uses a Shuttle transmission offering 6 forward gears.
What is the working weight of the International Harvester TD-15?
The operating weight of the International Harvester TD-15 is approximately 22,540 lb.
What routine service does the International Harvester TD-15 need?
Regular maintenance for the International Harvester TD-15 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
