UtilityPerformance profile
Iseki TS3510
The Iseki TS3510 is a compact but capable tractor designed for various farming tasks. It's powered by a 3-cylinder Isuzu 3AB1 diesel engine that delivers 34.5 horsepower. This liquid-cooled engine has a displacement of 108.4 cubic inches and runs at 2400 rpm, providing reliable performance for everyday farm work. One of the TS3510's standout features is its versatile transmission. It offers 16 forward gears and 4 reverse gears, with a creeper option for slow-speed tasks. This tractor is built to handle different terrains, with agricultural tires on both front and rear. It measures 122.4 inches long, 60.6 inches wide, and 85.6 inches tall, making it compact enough for tight spaces. The TS3510 weighs 3000 pounds and comes equipped with a Category I rear hitch, suitable for attaching various implements. With its electric starter and additional features like a 68.9-inch wheelbase, this Iseki tractor is a practical choice for small to medium-sized farms.
ManufacturerIsekiPower34.5 hpEngine3-cylTransGear with creeper option
Quick specs
- Category
- Utility
- Engine Power Output
- 35hp
- Operating Weight
- 3,000 lb
- Transmission
- Gear with creeper option
At a glance
How the TS3510 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
34.5 hp · 27th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TS3510 ranks at the 27th percentile for engine power among recorded utility tractors.
Overview
About the Iseki TS3510
The Iseki TS3510 is a compact but capable tractor designed for various farming tasks. It's powered by a 3-cylinder Isuzu 3AB1 diesel engine that delivers 34.5 horsepower. This liquid-cooled engine has a displacement of 108.4 cubic inches and runs at 2400 rpm, providing reliable performance for everyday farm work. One of the TS3510's standout features is its versatile transmission. It offers 16 forward gears and 4 reverse gears, with a creeper option for slow-speed tasks. This tractor is built to handle different terrains, with agricultural tires on both front and rear. It measures 122.4 inches long, 60.6 inches wide, and 85.6 inches tall, making it compact enough for tight spaces. The TS3510 weighs 3000 pounds and comes equipped with a Category I rear hitch, suitable for attaching various implements. With its electric starter and additional features like a 68.9-inch wheelbase, this Iseki tractor is a practical choice for small to medium-sized farms.
Full specifications
Every recorded spec
General
| Manufacturer | Iseki |
|---|---|
| Model | TS3510 |
| Category | Utility tractor |
| Operating weight | 3,000lb |
Engine
| Make | Isuzu |
|---|---|
| Model | 3AB1 |
| Power | 34.5hp |
| Cylinders | 3 |
| Displacement | 108.4ci |
| Bore | 3.39in |
| Stroke | 4.02in |
Transmission
| Type | Gear with creeper option |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Dimensions
| Length | 122.4in |
|---|---|
| Width | 60.6in |
| Height | 85.6in |
| Operating weight | 3,000lb |
Head to head
TS3510 vs. Utility median
How the Iseki TS3510 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 34.5 hp | 55 hp | -37% | 27th |
| Engine Displacement | 108 ci | 183 ci | -41% | 26th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 3,000 lb | 5,303 lb | -43% | 23rd |
| Length | 122 in | 137 in | -10% | 31st |
| Width | 60.6 in | 66 in | -8% | 38th |
| Height | 85.6 in | 94.1 in | -9% | 34th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Iseki tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Iseki TA357 | 34.5 hp | 3,770 lb | — | Compare → |
| Iseki TG353 | 34.5 hp | 3,792 lb | — | Compare → |
| Iseki TK532 | 34 hp | 2,557 lb | — | Compare → |
| Iseki AT340 | 33.5 hp | 3,042 lb | — | Compare → |
| Iseki TA340 | 33.5 hp | 3,307 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers WD | 34.63 hp | — | 1948–1953 | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
Explore
Iseki siblings
Explore
Similar-spec models
Gallery

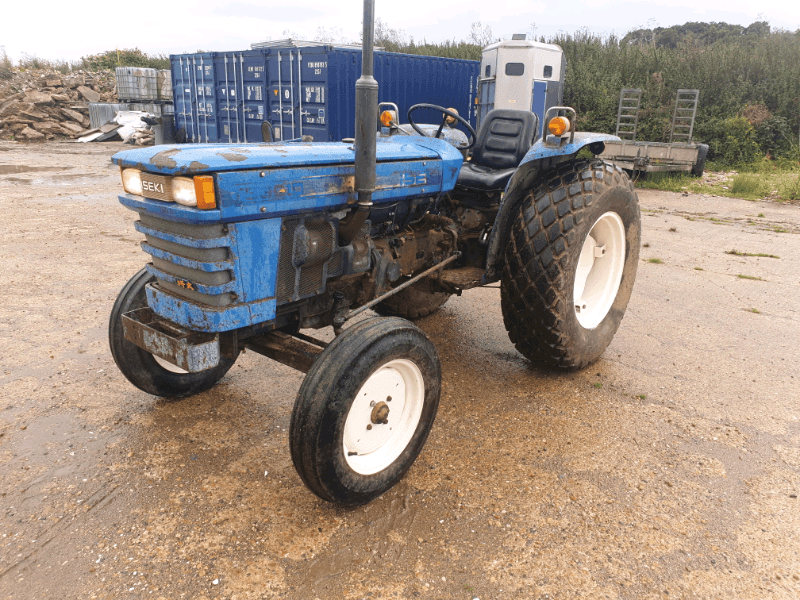

Iseki TS3510 photos
FAQ
Common questions
What is the engine power output of the Iseki TS3510?
Rated engine output for the Iseki TS3510 is 34.5 hp, delivered by a 3-cylinder engine. The engine displaces 108.4 ci.
Which transmission does the Iseki TS3510 use?
The Iseki TS3510 is equipped with a Gear with creeper option transmission with 16 forward gears.
What three-point hitch category does the Iseki TS3510 use?
The Iseki TS3510 has a Category I three-point hitch.
What is the operating weight of the Iseki TS3510?
In working trim, the Iseki TS3510 comes in at roughly 3,000 lb.
How do I maintain a Iseki TS3510?
Routine service for the Iseki TS3510 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
