UtilityPerformance profile
Jinma JM-354
The Jinma JM-354 is a utility tractor built for farmers who need a reliable machine. It has a 4x4 drive system, which means it can handle tough terrain. The tractor uses a manual transmission with 8 forward gears and 2 reverse gears, giving drivers good control over speed and power. Under the hood, the JM-354 has a 3-cylinder diesel engine made by Jinma. This engine is liquid-cooled and naturally aspirated, producing 35 horsepower. It has an average displacement of 136.1 cubic inches. The tractor weighs 3,924 pounds and measures about 124 inches long, 57 inches wide, and 80 inches tall. These specs make it a compact but capable machine for various farm tasks.
ManufacturerJinmaPower35 hpEngine3-cylTransManual
Quick specs
- Category
- Utility
- Engine Power Output
- 35hp
- Operating Weight
- 3,924 lb
- Transmission
- Manual
At a glance
How the JM-354 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
35 hp · 28th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The JM-354 ranks at the 28th percentile for engine power among recorded utility tractors.
Overview
About the Jinma JM-354
The Jinma JM-354 is a utility tractor built for farmers who need a reliable machine. It has a 4x4 drive system, which means it can handle tough terrain. The tractor uses a manual transmission with 8 forward gears and 2 reverse gears, giving drivers good control over speed and power. Under the hood, the JM-354 has a 3-cylinder diesel engine made by Jinma. This engine is liquid-cooled and naturally aspirated, producing 35 horsepower. It has an average displacement of 136.1 cubic inches. The tractor weighs 3,924 pounds and measures about 124 inches long, 57 inches wide, and 80 inches tall. These specs make it a compact but capable machine for various farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Jinma |
|---|---|
| Model | JM-354 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,924lb |
Engine
| Make | Jinma |
|---|---|
| Power | 35hp |
| Cylinders | 3 |
| Displacement | 136.1ci |
| Bore | 3.74in |
| Stroke | 4.13in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD |
Dimensions
| Length | 123.81in |
|---|---|
| Width | 57.08in |
| Height | 79.92in |
| Operating weight | 3,924lb |
Capacities
| Cooling system | 1.9gal |
|---|
Head to head
JM-354 vs. Utility median
How the Jinma JM-354 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 35 hp | 55 hp | -36% | 28th |
| Engine Displacement | 136 ci | 183 ci | -26% | 35th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 3,924 lb | 5,303 lb | -26% | 36th |
| Length | 124 in | 137 in | -9% | 33rd |
| Width | 57.1 in | 66 in | -14% | 31st |
| Height | 79.9 in | 94.1 in | -15% | 28th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Jinma tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Jinma JM-404 | 40 hp | 4,631 lb | — | Compare → |
| Jinma 2425 | 25 hp | 3,042 lb | 2002–2006 | Compare → |
| Jinma JM-254 | 25 hp | 2,514 lb | — | Compare → |
| Jinma JM-454 | 45 hp | 4,665 lb | — | Compare → |
| Jinma JM-224 | 22 hp | 2,798 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
| Allis Chalmers WD | 34.63 hp | — | 1948–1953 | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
Jinma siblings
Explore
Similar-spec models
Gallery

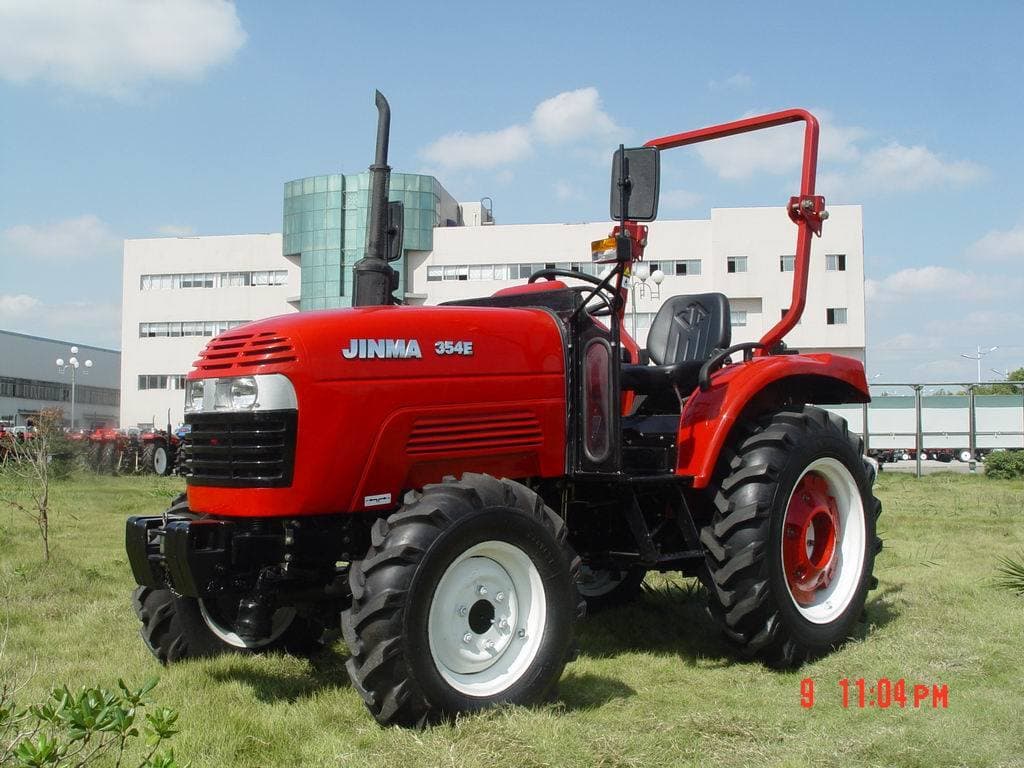

Jinma JM-354 photos
FAQ
Common questions
What is the engine power output of the Jinma JM-354?
Rated engine output for the Jinma JM-354 is 35 hp, delivered by a 3-cylinder engine. The engine displaces 136.1 ci.
What is the operating weight of the Jinma JM-354?
In working trim, the Jinma JM-354 comes in at roughly 3,924 lb.
Which transmission does the Jinma JM-354 use?
The Jinma JM-354 is equipped with a Manual transmission with 8 forward gears.
How do I maintain a Jinma JM-354?
Routine service for the Jinma JM-354 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
