AgriculturalPerformance profile
John Deere 2330
The John Deere 2330 is a compact tractor designed for orchards and vineyards. It's also great for general farm work. This tractor has a 2WD drive system and a manual steering setup, making it easy to control in tight spaces. Under the hood, the 2330 has a John Deere diesel engine with three cylinders. The engine is naturally aspirated and liquid-cooled, providing 52.5 hp of power. While its engine size is below average, it runs at a very high 2500 rpm. The tractor has a manual transmission with 8 forward and 4 reverse gears, giving drivers plenty of options for different tasks. It's a heavy-duty machine, weighing in at 6750 lb, which is very high for its class. The tractor measures 119.3 inches long, 98.4 inches wide, and 55.5 inches tall, with good ground clearance of 9.8 inches.
ManufacturerJohn DeerePower52.5 hpEngine3-cylTransManual
Quick specs
- Category
- Agricultural
- Engine Power Output
- 53hp
- Operating Weight
- 6,750 lb
- Transmission
- Manual
At a glance
How the 2330 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
52.5 hp · 10th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 2330 ranks at the 10th percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 2330
The John Deere 2330 is a compact tractor designed for orchards and vineyards. It's also great for general farm work. This tractor has a 2WD drive system and a manual steering setup, making it easy to control in tight spaces. Under the hood, the 2330 has a John Deere diesel engine with three cylinders. The engine is naturally aspirated and liquid-cooled, providing 52.5 hp of power. While its engine size is below average, it runs at a very high 2500 rpm. The tractor has a manual transmission with 8 forward and 4 reverse gears, giving drivers plenty of options for different tasks. It's a heavy-duty machine, weighing in at 6750 lb, which is very high for its class. The tractor measures 119.3 inches long, 98.4 inches wide, and 55.5 inches tall, with good ground clearance of 9.8 inches.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 2330 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 6,750lb |
Engine
| Make | John Deere |
|---|---|
| Power | 52.5hp |
| Cylinders | 3 |
| Displacement | 164.5ci |
| Bore | 4.02in |
| Stroke | 4.33in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 119.3in |
|---|---|
| Width | 98.4in |
| Height | 55.5in |
| Operating weight | 6,750lb |
Capacities
| Cooling system | 2.65gal |
|---|
Head to head
2330 vs. Agricultural median
How the John Deere 2330 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 52.5 hp | 110 hp | -52% | 10th |
| Engine Displacement | 165 ci | 336 ci | -51% | 8th |
| Cylinders | 3 | 5.5 | -45% | 8th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 6,750 lb | 10,914 lb | -38% | 24th |
| Length | 119 in | 173 in | -31% | 6th |
| Width | 98.4 in | 79.5 in | +24% | 81st |
| Height | 55.5 in | 111 in | -50% | 5th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 630 | 53 hp | 5,858 lb | — | Compare → |
| John Deere 1630VU | 55 hp | — | — | Compare → |
| John Deere 2255 | 55 hp | 5,115 lb | — | Compare → |
| John Deere 1845F | 55.2 hp | — | — | Compare → |
| John Deere 50R | 49 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agco ST52a | 52.1 hp | 3,494.4 lb | — | Compare → |
| AGCO GT45 | 52 hp | 4,806 lb | — | Compare → |
| Agco GT45A | 52 hp | 5,820.3 lb | — | Compare → |
| Barreiros 50.55 | 52 hp | 5,100 lb | — | Compare → |
| Barreiros R-500 | 52 hp | — | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

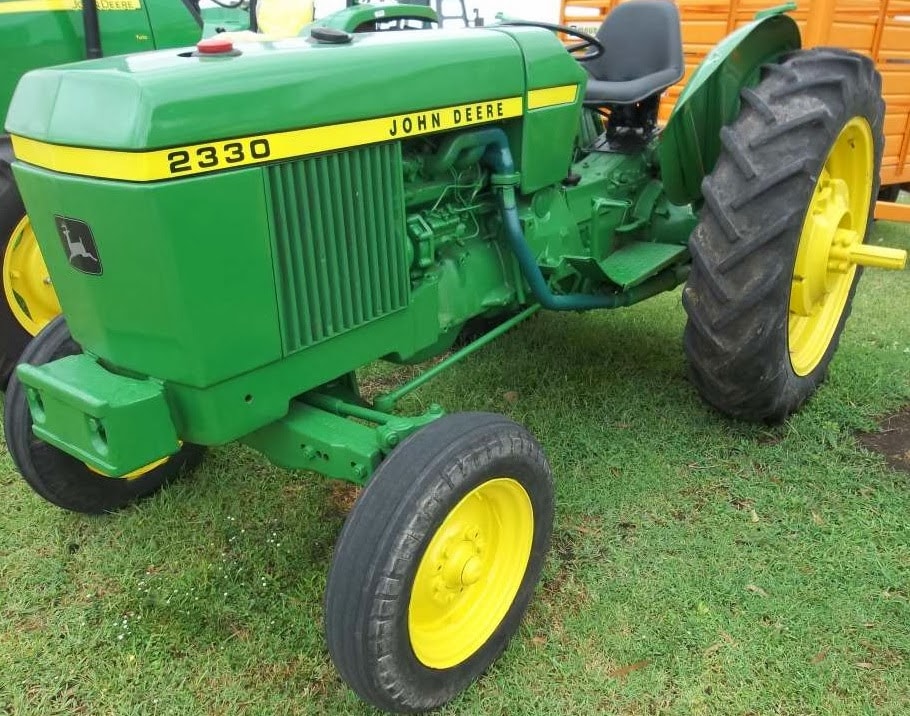

John Deere 2330 photos
FAQ
Common questions
What is the engine power output of the John Deere 2330?
Rated engine output for the John Deere 2330 is 52.5 hp, delivered by a 3-cylinder engine. The engine displaces 164.5 ci.
What hydraulics does the John Deere 2330 have?
The John Deere 2330 uses an Open Center hydraulic system.
What three-point hitch category does the John Deere 2330 use?
The John Deere 2330 has a Category Category 3 three-point hitch.
What is the operating weight of the John Deere 2330?
In working trim, the John Deere 2330 comes in at roughly 6,750 lb.
Which transmission does the John Deere 2330 use?
The John Deere 2330 is equipped with a Manual transmission with 8 forward gears.
How do I maintain a John Deere 2330?
Routine service for the John Deere 2330 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
