Brand siblingJohn Deere 2520
The John Deere 2520 is a versatile tractor that can be used for row crops and utility work. It has a 2WD drive system and hydrostatic power steering, making it easy to control. The tractor comes with a powershift transmission that offers 8 forward gears and 4 reverse gears, giving the operator plenty of options for different tasks. Under the hood, the 2520 has a John Deere 3.6L 4-cylinder diesel engine. This engine is liquid-cooled and naturally aspirated, providing 26.4 horsepower at 2500 RPM. While the engine's power is on the lower end compared to other tractors, its high RPM rating makes it suitable for various farm jobs. The tractor's size is compact, measuring 108.9 inches long, 39.2 inches wide, and 47.2 inches tall. It weighs 7,130 pounds, which is lighter than many other tractors. The John Deere 2520 comes with some useful features for farmers. It has a three-point hitch at the rear with a capacity of 1,150.9 pounds. The tractor uses an open center hydraulic system and has a fuel tank that holds 7.2 gallons. It also has good ground clearance at 12.5 inches, which helps when working in rough fields. The tractor's electrical system includes a 40-amp alternator and an electric starter for reliable operation.

Quick specs
- Category
- Utility
- Engine Power Output
- 26hp
- Operating Weight
- 7,130 lb
- Transmission
- Powershift
At a glance
How the 2520 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
This model
The 2520 ranks at the 18th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 2520
The John Deere 2520 is a versatile tractor that can be used for row crops and utility work. It has a 2WD drive system and hydrostatic power steering, making it easy to control. The tractor comes with a powershift transmission that offers 8 forward gears and 4 reverse gears, giving the operator plenty of options for different tasks. Under the hood, the 2520 has a John Deere 3.6L 4-cylinder diesel engine. This engine is liquid-cooled and naturally aspirated, providing 26.4 horsepower at 2500 RPM. While the engine's power is on the lower end compared to other tractors, its high RPM rating makes it suitable for various farm jobs. The tractor's size is compact, measuring 108.9 inches long, 39.2 inches wide, and 47.2 inches tall. It weighs 7,130 pounds, which is lighter than many other tractors. The John Deere 2520 comes with some useful features for farmers. It has a three-point hitch at the rear with a capacity of 1,150.9 pounds. The tractor uses an open center hydraulic system and has a fuel tank that holds 7.2 gallons. It also has good ground clearance at 12.5 inches, which helps when working in rough fields. The tractor's electrical system includes a 40-amp alternator and an electric starter for reliable operation.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 2520 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 7,130lb |
Engine
| Make | John Deere |
|---|---|
| Model | 3.6L 4-cyl diesel |
| Power | 26.4hp |
| Cylinders | 4 |
| Displacement | 219ci |
| Bore | 4.02in |
| Stroke | 4.33in |
Transmission
| Type | Powershift |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 108.9in |
|---|---|
| Width | 39.2in |
| Height | 47.2in |
| Operating weight | 7,130lb |
Capacities
| Cooling system | 3.5gal |
|---|
Head to head
2520 vs. Utility median
How the John Deere 2520 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 26.4 hp | 55 hp | -52% | 18th |
| Engine Displacement | 219 ci | 183 ci | +20% | 60th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 7,130 lb | 5,303 lb | +34% | 68th |
| Length | 109 in | 137 in | -20% | 15th |
| Width | 39.2 in | 66 in | -41% | 3rd |
| Height | 47.2 in | 94.1 in | -50% | 2nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 4200 | 26.3 hp | 2,425 lb | 1998–2001 | Compare → |
| John Deere A | 26.6 hp | 3,900 lb | 1947–1952 | Compare → |
| John Deere AR | 26.6 hp | 4,751 lb | 1935–1941 | Compare → |
| John Deere 3005 | 27 hp | 3,262 lb | 2008–2018 | Compare → |
| John Deere 4210 | 27 hp | 2,375 lb | 2002–2004 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT225 | 27 hp | 3,021 lb | 2008–2013 | Compare → |
| Bolens G272 | 27 hp | 2,250 lb | — | Compare → |
| Bolens G274 | 27 hp | 2,440 lb | — | Compare → |
| Allis Chalmers D272 | 27.5 hp | 2,060 lb | — | Compare → |
| Ascot Universal 300 | 27.5 hp | 3,800 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

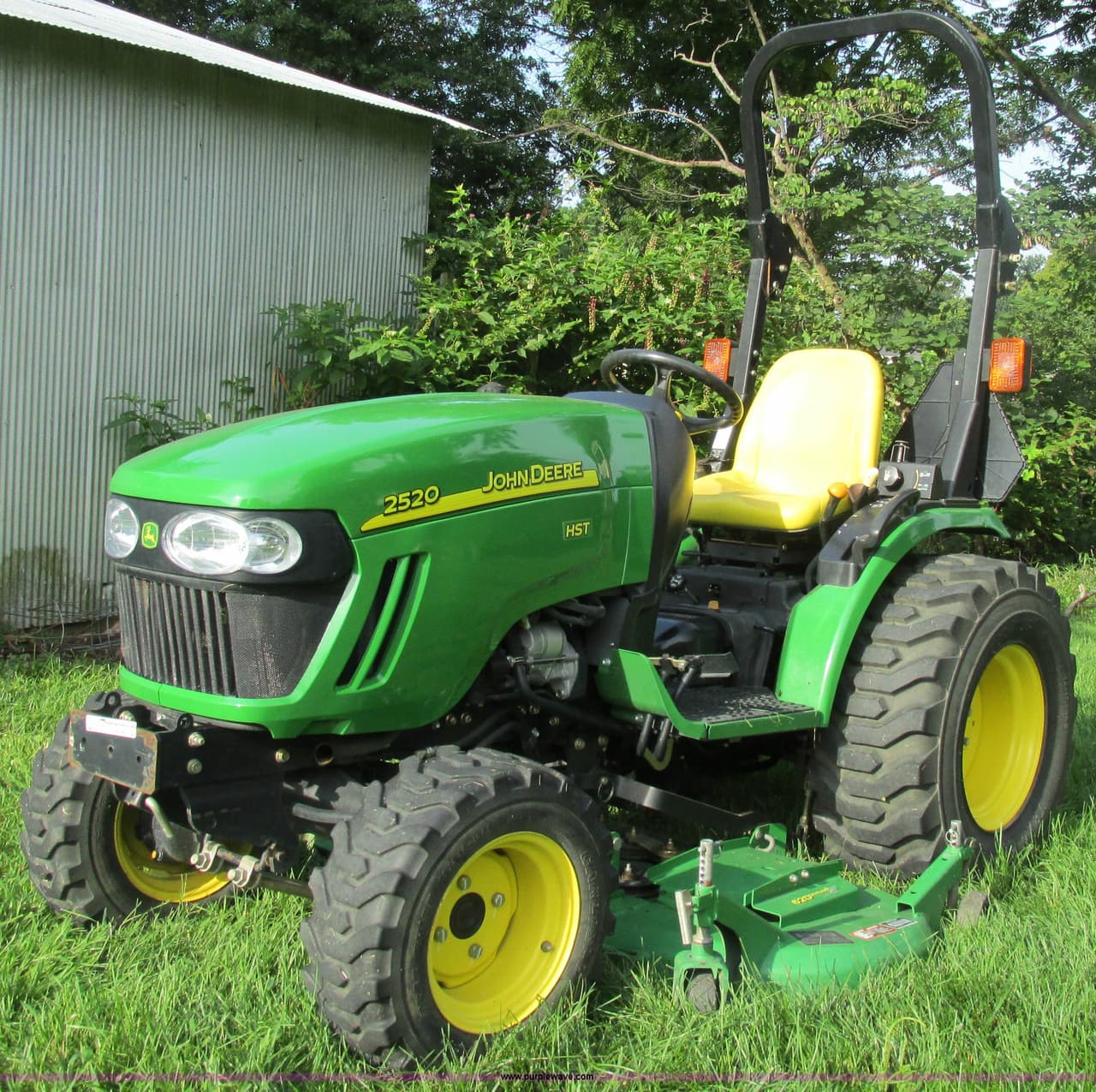

John Deere 2520 photos





FAQ
Common questions
How much horsepower does the John Deere 2520 have?
The John Deere 2520 produces 26.4 hp from its 4-cylinder engine. Engine displacement is 219 ci.
How much does the John Deere 2520 weigh?
The John Deere 2520 weighs about 7,130 lb in operating condition.
What transmission is in the John Deere 2520?
Transmission on the John Deere 2520 is Powershift, with 8 forward speeds.
What type of hydraulic system does the John Deere 2520 use?
Hydraulics on the John Deere 2520 are Open center.
What maintenance does the John Deere 2520 require?
Like any tractor, the John Deere 2520 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
