John Deere 2530
The John Deere 2530 is a utility tractor built for farm work. It has a 2WD drive system and a manual steering setup. The tractor uses a manual transmission with 8 forward gears and 4 reverse gears, giving farmers good control over their speed. Under the hood, the 2530 has a John Deere diesel engine with 4 cylinders. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It has an above-average displacement of 219.6 cubic inches and runs at 2500 RPM. The tractor's weight is 3500 pounds, which is on the lighter side for its class. It has agricultural tires in the front and back, perfect for field work. The tractor also features a three-point hitch at the rear, which is great for attaching various farm tools.
ManufacturerJohn DeereEngine4-cylTransManual
Quick specs
- Category
- Utility
- Operating Weight
- 3,500 lb
- Transmission
- Manual
Overview
About the John Deere 2530
The John Deere 2530 is a utility tractor built for farm work. It has a 2WD drive system and a manual steering setup. The tractor uses a manual transmission with 8 forward gears and 4 reverse gears, giving farmers good control over their speed. Under the hood, the 2530 has a John Deere diesel engine with 4 cylinders. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It has an above-average displacement of 219.6 cubic inches and runs at 2500 RPM. The tractor's weight is 3500 pounds, which is on the lighter side for its class. It has agricultural tires in the front and back, perfect for field work. The tractor also features a three-point hitch at the rear, which is great for attaching various farm tools.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 2530 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 3,500lb |
Engine
| Make | John Deere |
|---|---|
| Cylinders | 4 |
| Displacement | 219.6ci |
| Bore | 4.02in |
| Stroke | 4.33in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open |
Dimensions
| Length | 141.7in |
|---|---|
| Width | 88.6in |
| Height | 86.2in |
| Operating weight | 3,500lb |
Head to head
2530 vs. Utility median
How the John Deere 2530 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 220 ci | 183 ci | +20% | 60th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 3,500 lb | 5,303 lb | -34% | 29th |
| Length | 142 in | 137 in | +4% | 57th |
| Width | 88.6 in | 66 in | +34% | 91st |
| Height | 86.2 in | 94.1 in | -8% | 34th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 1010 | 36 hp | 4,041 lb | 1960–1965 | Compare → |
| John Deere 1020 | 38.82 hp | 5,940 lb | 1965–1973 | Compare → |
| John Deere 1023E | 22.4 hp | 1,345 lb | — | Compare → |
| John Deere 1023E (2011-2015) | 22.1 hp | 1,344.8 lb | 2011–2015 | Compare → |
| John Deere 1023E (2016-2019) | 21.5 hp | 1,344.8 lb | 2016–2019 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

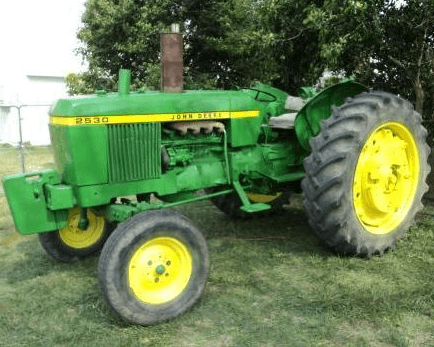

John Deere 2530 photos
FAQ
Common questions
What engine configuration does the John Deere 2530 use?
The John Deere 2530 is equipped with a 4-cylinder engine displacing 219.6 ci.
What three-point hitch category does the John Deere 2530 use?
The John Deere 2530 has a Category II three-point hitch.
What is the working weight of the John Deere 2530?
The operating weight of the John Deere 2530 is approximately 3,500 lb.
What type of transmission does the John Deere 2530 have?
The John Deere 2530 uses a Manual transmission offering 8 forward gears.
What routine service does the John Deere 2530 need?
Regular maintenance for the John Deere 2530 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
