John Deere 330

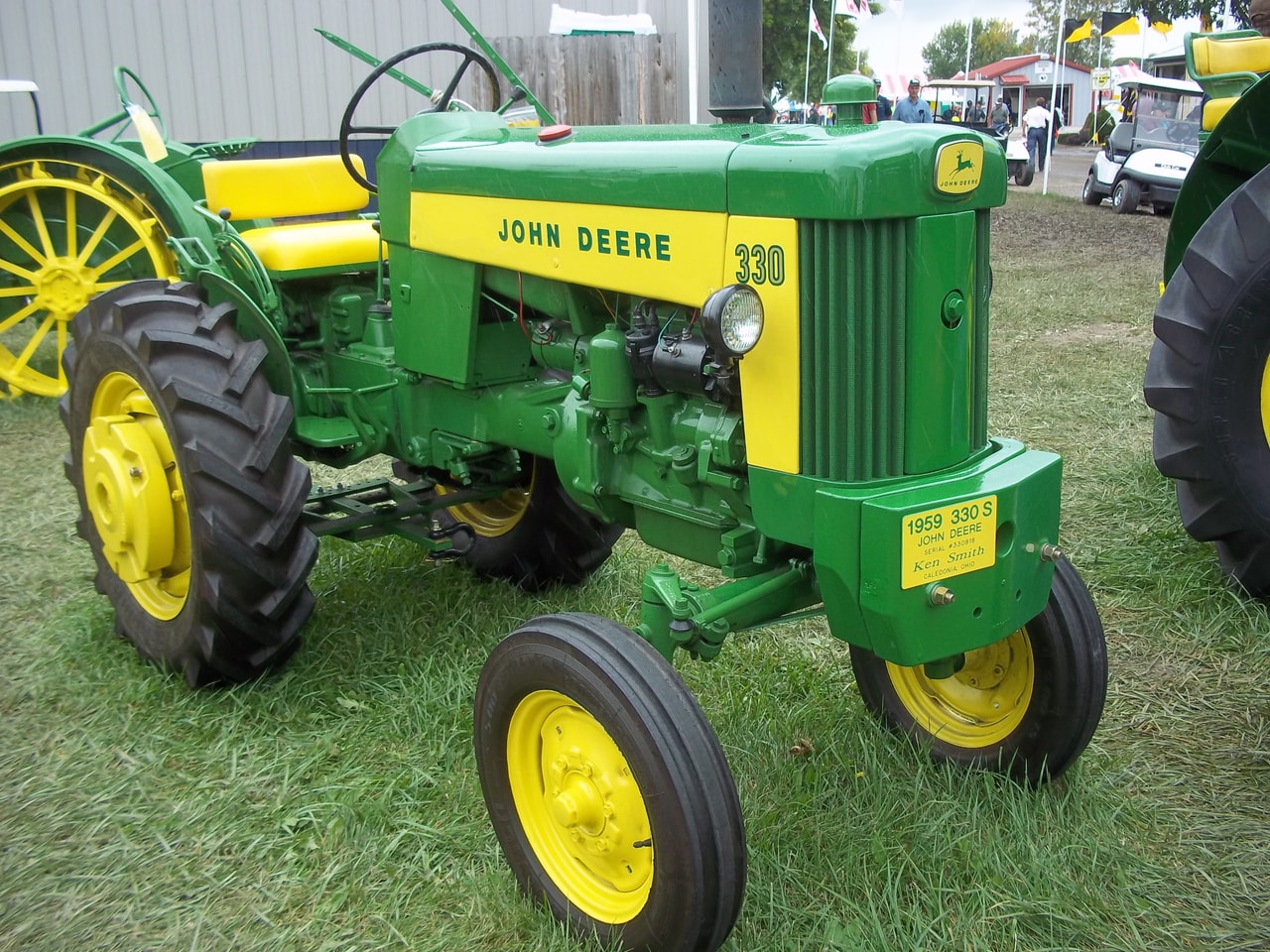

The John Deere 330 is a utility tractor that's built to help farmers with various tasks. It has a gasoline engine made by John Deere, with two cylinders and 100.5 cubic inches of displacement. This engine size is below average compared to other tractors. The engine is cooled by liquid and breathes air naturally, without any extra help. This tractor has a simple gear system with four forward speeds and one reverse. It's not very big, measuring about 119 inches long, 55 inches wide, and 68 inches tall. The John Deere 330 weighs 2,750 pounds, which is on the lighter side for tractors. It has an electric starter that uses a 6-volt system, which was common for older tractors. The tractor also has a special hydraulic system called "Touch-O-Matic" that helps control attachments easily.
ManufacturerJohn DeereEngine2-cylTransunsynchronized gear
Quick specs
- Category
- Utility
- Operating Weight
- 2,750 lb
- Transmission
- unsynchronized gear
Overview
About the John Deere 330
The John Deere 330 is a utility tractor that's built to help farmers with various tasks. It has a gasoline engine made by John Deere, with two cylinders and 100.5 cubic inches of displacement. This engine size is below average compared to other tractors. The engine is cooled by liquid and breathes air naturally, without any extra help. This tractor has a simple gear system with four forward speeds and one reverse. It's not very big, measuring about 119 inches long, 55 inches wide, and 68 inches tall. The John Deere 330 weighs 2,750 pounds, which is on the lighter side for tractors. It has an electric starter that uses a 6-volt system, which was common for older tractors. The tractor also has a special hydraulic system called "Touch-O-Matic" that helps control attachments easily.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 330 |
| Category | Utility tractor |
| Operating weight | 2,750lb |
Engine
| Make | John Deere |
|---|---|
| Cylinders | 2 |
| Displacement | 100.5ci |
| Bore | 4in |
| Stroke | 4in |
Transmission
| Type | unsynchronized gear |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Dimensions
| Length | 119.25in |
|---|---|
| Width | 55.5in |
| Height | 68.1in |
| Operating weight | 2,750lb |
Capacities
| Cooling system | 3.5gal |
|---|
Head to head
330 vs. Utility median
How the John Deere 330 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 101 ci | 183 ci | -45% | 23rd |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 4 | 12 | -67% | 4th |
| Operating Weight | 2,750 lb | 5,303 lb | -48% | 20th |
| Length | 119 in | 137 in | -13% | 26th |
| Width | 55.5 in | 66 in | -16% | 28th |
| Height | 68.1 in | 94.1 in | -28% | 15th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 1010 | 36 hp | 4,041 lb | 1960–1965 | Compare → |
| John Deere 1020 | 38.82 hp | 5,940 lb | 1965–1973 | Compare → |
| John Deere 1023E | 22.4 hp | 1,345 lb | — | Compare → |
| John Deere 1023E (2011-2015) | 22.1 hp | 1,344.8 lb | 2011–2015 | Compare → |
| John Deere 1023E (2016-2019) | 21.5 hp | 1,344.8 lb | 2016–2019 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery
John Deere 330 photos
FAQ
Common questions
What engine configuration does the John Deere 330 use?
The John Deere 330 is equipped with a 2-cylinder engine displacing 100.5 ci.
What three-point hitch category does the John Deere 330 use?
The John Deere 330 has a Category I three-point hitch.
What is the working weight of the John Deere 330?
The operating weight of the John Deere 330 is approximately 2,750 lb.
What type of transmission does the John Deere 330 have?
The John Deere 330 uses an unsynchronized gear transmission offering 4 forward gears.
What routine service does the John Deere 330 need?
Regular maintenance for the John Deere 330 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
