John Deere 4025
The John Deere 4025 is a row crop tractor built for farm work. It has a 2WD drive system and a strong 6-cylinder diesel engine. The engine is liquid-cooled and made by John Deere. It has an average displacement of 404 cubic inches. The tractor runs at a very high 2500 RPM, which means it can work fast. This tractor is big and sturdy. It's about 152.75 inches long, 89.625 inches wide, and 90.75 inches tall. It weighs 8555 pounds, which is on the lighter side for tractors. The 4025 has a three-point hitch, which helps it connect to many farm tools. It also has an open center hydraulic system and an electric starter. The tractor uses special farm tires in the front and back. It has 8 forward gears and 4 reverse gears, so you can choose the right speed for your work.
Key specifications
- Category
- Row Crop
- Operating weight
- 8,555 lb
- Transmission
- Partially synchronized and full power shift
Overview
About the John Deere 4025
The John Deere 4025 is a row crop tractor built for farm work. It has a 2WD drive system and a strong 6-cylinder diesel engine. The engine is liquid-cooled and made by John Deere. It has an average displacement of 404 cubic inches. The tractor runs at a very high 2500 RPM, which means it can work fast. This tractor is big and sturdy. It's about 152.75 inches long, 89.625 inches wide, and 90.75 inches tall. It weighs 8555 pounds, which is on the lighter side for tractors. The 4025 has a three-point hitch, which helps it connect to many farm tools. It also has an open center hydraulic system and an electric starter. The tractor uses special farm tires in the front and back. It has 8 forward gears and 4 reverse gears, so you can choose the right speed for your work.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 4025 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 8,555lb(3,880 kg) |
Engine
| Make | John Deere |
|---|---|
| Cylinders | 6 |
| Displacement | 404ci(6.62 L) |
| Bore | 4.25in(107.9 mm) |
| Stroke | 4.75in(120.6 mm) |
Transmission
| Type | Partially synchronized and full power shift |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 152.75in(3,880 mm) |
|---|---|
| Width | 89.63in(2,277 mm) |
| Height | 90.75in(2,305 mm) |
| Operating weight | 8,555lb(3,880 kg) |
Category medians
4025 vs. Row Crop median
John Deere 4025 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 404 ci | 391 ci | +3% | 57th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 8,555 lb | 12,307 lb | -30% | 23rd |
| Length | 153 in | 180 in | -15% | 18th |
| Width | 89.6 in | 91.2 in | -2% | 46th |
| Height | 90.8 in | 114 in | -20% | 19th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

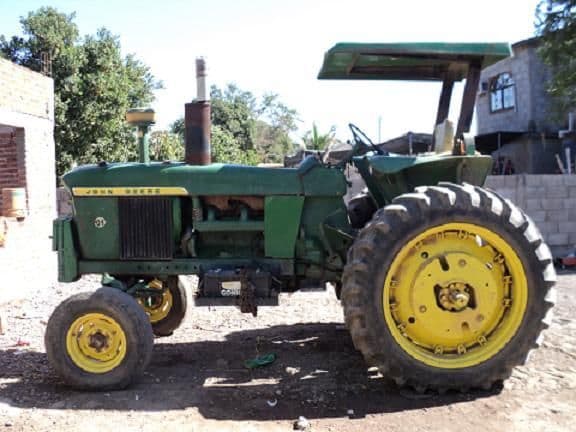

John Deere 4025 photos
FAQ
Frequently asked questions
How many cylinders does the John Deere 4025 have?
The John Deere 4025 runs a 6-cylinder engine with a displacement of 404 ci.
Which transmission does the John Deere 4025 use?
The John Deere 4025 is equipped with a Partially synchronized and full power shift transmission with 8 forward gears.
What type of hydraulic system does the John Deere 4025 use?
Hydraulics on the John Deere 4025 are Open center.
What hitch category is the John Deere 4025?
The John Deere 4025 uses a Category II/I hitch.
What is the operating weight of the John Deere 4025?
The John Deere 4025 has an operating weight of about 8,555 lb.
How do I maintain a John Deere 4025?
Routine service for the John Deere 4025 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
