Row Crop tractorsSpec sheet
John Deere 4240
The John Deere 4240 is a powerful row crop tractor that was made from 1978 to 1982. It has a strong 6-cylinder diesel engine that can produce 110 horsepower. This engine is bigger than most other tractors, making it great for tough farm jobs. The tractor has a partial power shift transmission with 16 forward gears and 6 reverse gears, giving farmers lots of options for different tasks. This tractor is built to last, with a sturdy 4x2 2WD chassis and power steering for easy control. It comes with a Sound-Gard cab to keep the driver comfortable and safe. The 4240 has both 540 and 1000 rpm PTO speeds, making it versatile for various farm equipment. It also has a closed center hydraulic system and a category II/I rear hitch for attaching different tools. At 12,395 pounds, it's about average weight for a tractor of its size. The John Deere 4240 is a reliable choice for farmers who need a strong, adaptable tractor for their fields.
ManufacturerJohn DeerePower110 hp(82.0 kW)Class100–150 HP tractors →Engine6-cylinderTransmissionPartial power shift
Key specifications
- Category
- Row Crop
- Engine power
- 110hp
- Operating weight
- 12,395 lb
- Transmission
- Partial power shift
Category comparison
4240 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
110 hp · 32nd
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 4240 ranks at the 32nd percentile for engine power among recorded row crop tractors.
Overview
About the John Deere 4240
The John Deere 4240 is a powerful row crop tractor that was made from 1978 to 1982. It has a strong 6-cylinder diesel engine that can produce 110 horsepower. This engine is bigger than most other tractors, making it great for tough farm jobs. The tractor has a partial power shift transmission with 16 forward gears and 6 reverse gears, giving farmers lots of options for different tasks. This tractor is built to last, with a sturdy 4x2 2WD chassis and power steering for easy control. It comes with a Sound-Gard cab to keep the driver comfortable and safe. The 4240 has both 540 and 1000 rpm PTO speeds, making it versatile for various farm equipment. It also has a closed center hydraulic system and a category II/I rear hitch for attaching different tools. At 12,395 pounds, it's about average weight for a tractor of its size. The John Deere 4240 is a reliable choice for farmers who need a strong, adaptable tractor for their fields.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 4240 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1978–1982 |
| Operating weight | 12,395lb(5,622 kg) |
Engine
| Make | John Deere |
|---|---|
| Power | 110hp(82.03 kW) |
| Cylinders | 6 |
| Displacement | 466ci(7.64 L) |
| Bore | 4.57in(116.1 mm) |
| Stroke | 4.76in(120.9 mm) |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Steering | Power |
| Brakes | Differential hydraulic wet disc |
| Cab | Sound-Gard cab standard |
Hydraulics
| Type | Closed center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 156.3in(3,970 mm) |
|---|---|
| Width | 95.7in(2,431 mm) |
| Operating weight | 12,395lb(5,622 kg) |
Capacities
| Cooling system | 7.5gal(28.39 L) |
|---|
Closest alternatives
4240 compared with the nearest models by horsepower
Among row crop tractors, the John Deere 7220 and the John Deere 7210 are closest to the John Deere 4240 in rated horsepower. The John Deere 7220 matches it on rated power and weighs 560 lb less. It entered production in 2003, 25 years after the 4240. The John Deere 7210 matches it on rated power and weighs 900 lb less. It entered production in 1997, 19 years after the 4240. Of the 3 models, the 4240 has the highest weight per horsepower at 113 lb per hp.
| Spec | John Deere 4240 | John Deere 7220 | John Deere 7210 |
|---|---|---|---|
| Engine power | 110 hp82 kW | 110 hp82 kW | 110 hp82 kW |
| Operating weight | 12,395 lb5,622 kg | 11,839 lb5,370 kg | 11,491 lb5,212 kg |
| Weight per hp | 113 lb/hp69 kg/kW | 108 lb/hp65 kg/kW | 104 lb/hp64 kg/kW |
| Displacement | 466 ci7.64 L | 359 ci5.88 L | 414 ci6.78 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Partial power shift | Partial power shift | Synchronized / Partial Power Shift |
| Years built | 1978-1982 | 2003-2007 | 1997-2002 |
Calculators
Calculators for the 4240
PTO power
About 91 to 99 PTO hp
Estimated from the 110 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 110 hp tractor can run
Maximum size is about a 13 ft rotary cutter or a 11 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
131 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
110 hp is 82.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
4240 vs. Row Crop median
John Deere 4240 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 110 hp | 138 hp | -20% | 32nd |
| Engine Displacement | 466 ci | 391 ci | +19% | 82nd |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 12,395 lb | 12,307 lb | +1% | 50th |
| Length | 156 in | 180 in | -13% | 21st |
| Width | 95.7 in | 91.2 in | +5% | 65th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

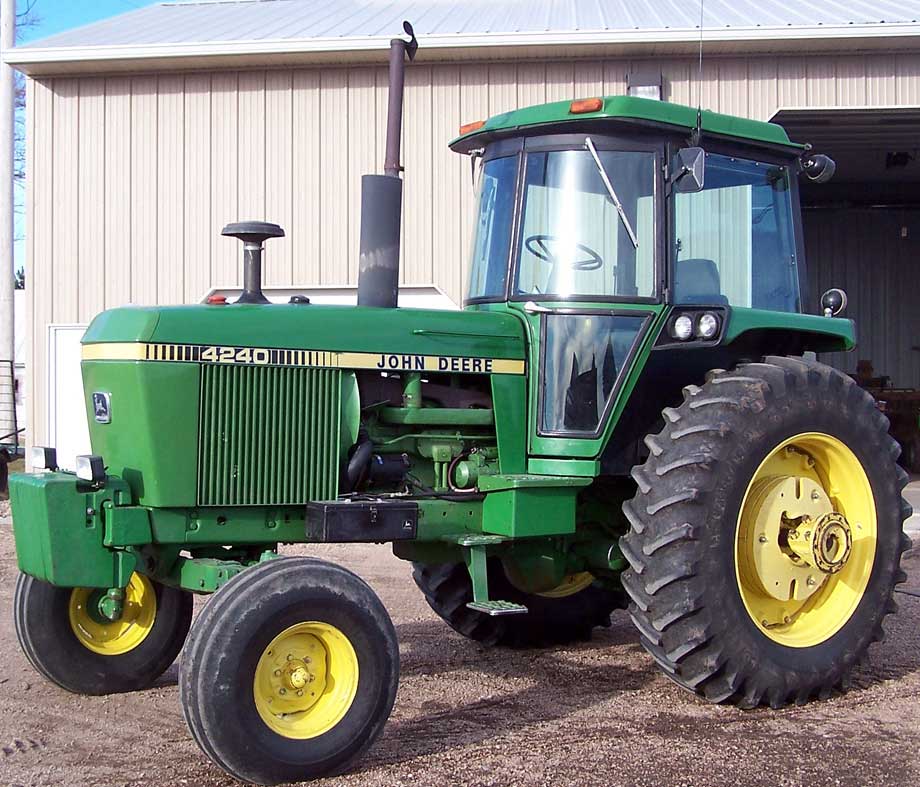

John Deere 4240 photos
FAQ
Frequently asked questions
What years was the John Deere 4240 manufactured?
Production of the John Deere 4240 ran from 1978 through 1982.
How powerful is the John Deere 4240?
The John Deere 4240 has an engine power output of 110 hp. It is powered by a 6-cylinder engine displacing 466 ci.
What is the working weight of the John Deere 4240?
The operating weight of the John Deere 4240 is approximately 12,395 lb.
What type of transmission does the John Deere 4240 have?
The John Deere 4240 uses a Partial power shift transmission offering 16 forward gears.
What hydraulics does the John Deere 4240 have?
The John Deere 4240 uses a Closed center hydraulic system.
What three-point hitch category does the John Deere 4240 use?
The John Deere 4240 has a Category II/I three-point hitch.
What routine service does the John Deere 4240 need?
Regular maintenance for the John Deere 4240 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
