Row CropPerformance profile
John Deere 4730
The John Deere 4730 is a powerful row crop tractor built for serious farm work. It has a 2WD drive system and power steering, making it easy to handle in the fields. The tractor is powered by a John Deere diesel engine with 6 cylinders and liquid cooling. This engine is quite large for its class, with a displacement of 466 cubic inches, and it can produce 117 horsepower at 2200 RPM. The 4730 is a big machine, measuring 156.6 inches long, 90 inches wide, and 123 inches tall. It weighs 10,900 pounds, which is about average for tractors in its category. The tractor comes with agricultural tires in both front and rear, perfect for farm use. It has a category II hitch, allowing it to work with many different attachments. The tractor also offers different transmission options, including Syncro-Range, Quad-Range, and Power Shift, giving farmers choices to fit their needs. John Deere is known for making reliable farm equipment, and the 4730 continues this tradition. Its engine power is above average compared to other tractors, while its size and weight make it suitable for a wide range of farming tasks. With its electric starter and 30-quart coolant capacity, this tractor is built for long days of hard work in the fields.
ManufacturerJohn DeerePower117 hpEngine6-cyl
Quick specs
- Category
- Row Crop
- Engine Power Output
- 117hp
- Operating Weight
- 10,900 lb
At a glance
How the 4730 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
117 hp · 37th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 4730 ranks at the 37th percentile for engine power among recorded row crop tractors.
Overview
About the John Deere 4730
The John Deere 4730 is a powerful row crop tractor built for serious farm work. It has a 2WD drive system and power steering, making it easy to handle in the fields. The tractor is powered by a John Deere diesel engine with 6 cylinders and liquid cooling. This engine is quite large for its class, with a displacement of 466 cubic inches, and it can produce 117 horsepower at 2200 RPM. The 4730 is a big machine, measuring 156.6 inches long, 90 inches wide, and 123 inches tall. It weighs 10,900 pounds, which is about average for tractors in its category. The tractor comes with agricultural tires in both front and rear, perfect for farm use. It has a category II hitch, allowing it to work with many different attachments. The tractor also offers different transmission options, including Syncro-Range, Quad-Range, and Power Shift, giving farmers choices to fit their needs. John Deere is known for making reliable farm equipment, and the 4730 continues this tradition. Its engine power is above average compared to other tractors, while its size and weight make it suitable for a wide range of farming tasks. With its electric starter and 30-quart coolant capacity, this tractor is built for long days of hard work in the fields.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 4730 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 10,900lb |
Engine
| Make | John Deere |
|---|---|
| Power | 117hp |
| Cylinders | 6 |
| Displacement | 466ci |
| Bore | 4.56in |
| Stroke | 4.75in |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 156.6in |
|---|---|
| Width | 90in |
| Height | 123in |
| Operating weight | 10,900lb |
Capacities
| Cooling system | 7.5gal |
|---|
Head to head
4730 vs. Row Crop median
How the John Deere 4730 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 117 hp | 138 hp | -15% | 37th |
| Engine Displacement | 466 ci | 391 ci | +19% | 82nd |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 10,900 lb | 12,307 lb | -11% | 38th |
| Length | 157 in | 180 in | -13% | 21st |
| Width | 90 in | 91.2 in | -1% | 48th |
| Height | 123 in | 114 in | +8% | 81st |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 7130 | 116 hp | 12,090 lb | 2007–2011 | Compare → |
| John Deere 7610 | 118.07 hp | 14,480 lb | — | Compare → |
| John Deere 4040S | 115 hp | 11,070 lb | — | Compare → |
| John Deere 4320 (1971-1972) | 115 hp | 10,675 lb | 1971–1972 | Compare → |
| John Deere 6534 Premium | 120 hp | 10,910 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
| AGCO RT110A | 116.9 hp | 12,200 lb | — | Compare → |
| Allis Chalmers 8010 | 119 hp | 12,630 lb | 1982–1985 | Compare → |
| Belarus 1025 MIG | 115 hp | 9,469 lb | — | Compare → |
| Agrinar T-120 | 119.3 hp | 4,580 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

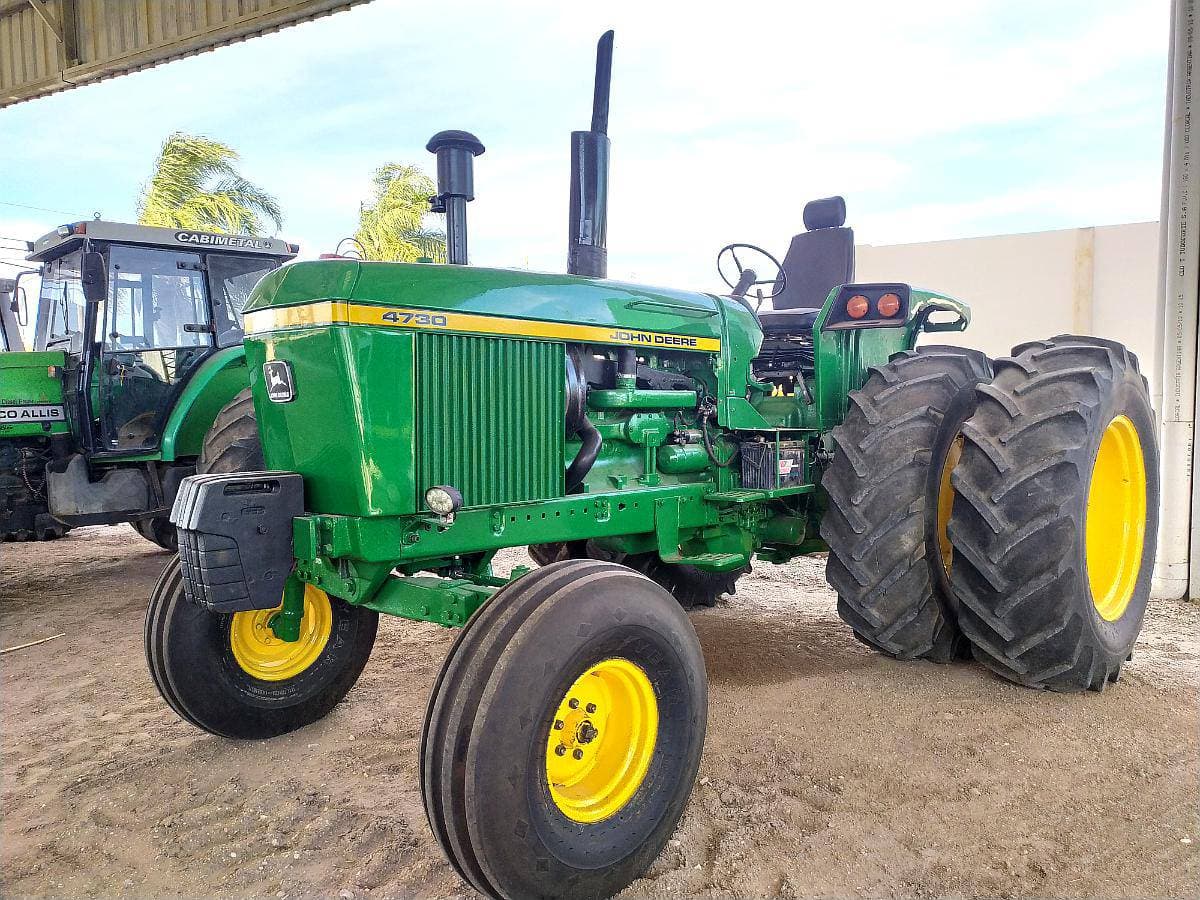

John Deere 4730 photos
FAQ
Common questions
What is the engine power output of the John Deere 4730?
Rated engine output for the John Deere 4730 is 117 hp, delivered by a 6-cylinder engine. The engine displaces 466 ci.
What is the operating weight of the John Deere 4730?
In working trim, the John Deere 4730 comes in at roughly 10,900 lb.
What three-point hitch category does the John Deere 4730 use?
The John Deere 4730 has a Category II three-point hitch.
How do I maintain a John Deere 4730?
Routine service for the John Deere 4730 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
