UtilityPerformance profile
John Deere 6105M
The John Deere 6105M is a powerful utility tractor built from 2013 to 2015. It has a strong 4-cylinder diesel engine that makes 99.07 hp. This engine is very good for its size, with above-average displacement and power output. The tractor has a 4-wheel drive system and hydrostatic power steering, making it easy to control in tough conditions. This tractor is great for heavy lifting. It has a three-point hitch that can lift up to 6,152 lb, which is very high compared to other tractors. The 6105M weighs 11,040 lb, making it sturdy and stable. It has a 24-speed transmission for both forward and reverse, giving the driver lots of options. The tractor also has two PTO speeds (540 and 1000 rpm) for running different tools. Farmers can choose between a open cab with a foldable roll bar or a closed cab for comfort. With its strong engine and lifting power, the John Deere 6105M is a great choice for many farm jobs.
ManufacturerJohn DeerePower99.07 hpEngine4-cylTransSelective gear fixed ratio with partial (4) range operator controlled power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 99hp
- Operating Weight
- 11,040 lb
- Transmission
- Selective gear fixed ratio with partial (4) range operator controlled power shift
At a glance
How the 6105M compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
99.07 hp · 82nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 6105M ranks at the 82nd percentile for engine power among recorded utility tractors.
Overview
About the John Deere 6105M
The John Deere 6105M is a powerful utility tractor built from 2013 to 2015. It has a strong 4-cylinder diesel engine that makes 99.07 hp. This engine is very good for its size, with above-average displacement and power output. The tractor has a 4-wheel drive system and hydrostatic power steering, making it easy to control in tough conditions. This tractor is great for heavy lifting. It has a three-point hitch that can lift up to 6,152 lb, which is very high compared to other tractors. The 6105M weighs 11,040 lb, making it sturdy and stable. It has a 24-speed transmission for both forward and reverse, giving the driver lots of options. The tractor also has two PTO speeds (540 and 1000 rpm) for running different tools. Farmers can choose between a open cab with a foldable roll bar or a closed cab for comfort. With its strong engine and lifting power, the John Deere 6105M is a great choice for many farm jobs.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 6105M |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2013–2015 |
| Operating weight | 11,040lb |
Engine
| Make | John Deere |
|---|---|
| Model | CD4045R024531 |
| Power | 99.07hp |
| Cylinders | 4 |
| Displacement | 276ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | Selective gear fixed ratio with partial (4) range operator controlled power shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Cab | Two-post foldable ROPS or Cab (optional) |
Hydraulics
| Type | Open center pressure compensated |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Operating weight | 11,040lb |
|---|
Capacities
| Cooling system | 5.85gal |
|---|
Head to head
6105M vs. Utility median
How the John Deere 6105M compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 99.1 hp | 55 hp | +80% | 82nd |
| Engine Displacement | 276 ci | 183 ci | +51% | 81st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 11,040 lb | 5,303 lb | +108% | 88th |
| 3-Point Hitch Capacity | 6,152 lb | 3,197 lb | +92% | 81st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5130 | 99 hp | — | — | Compare → |
| John Deere 5603 | 99 hp | 7,145 lb | — | Compare → |
| John Deere 6310 | 99 hp | — | — | Compare → |
| John Deere 3351 | 99.2 hp | 11,450 lb | 1987–1993 | Compare → |
| John Deere 6330 | 98.8 hp | 10,515 lb | 2007–2012 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| Agco RT100a | 100 hp | 11,051.8 lb | — | Compare → |
| Belarus 1005 | 100 hp | 8,874 lb | — | Compare → |
| Belarus 1025 | 100 hp | 9,144 lb | — | Compare → |
| Agrinar T-100 | 97.9 hp | 3,850 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

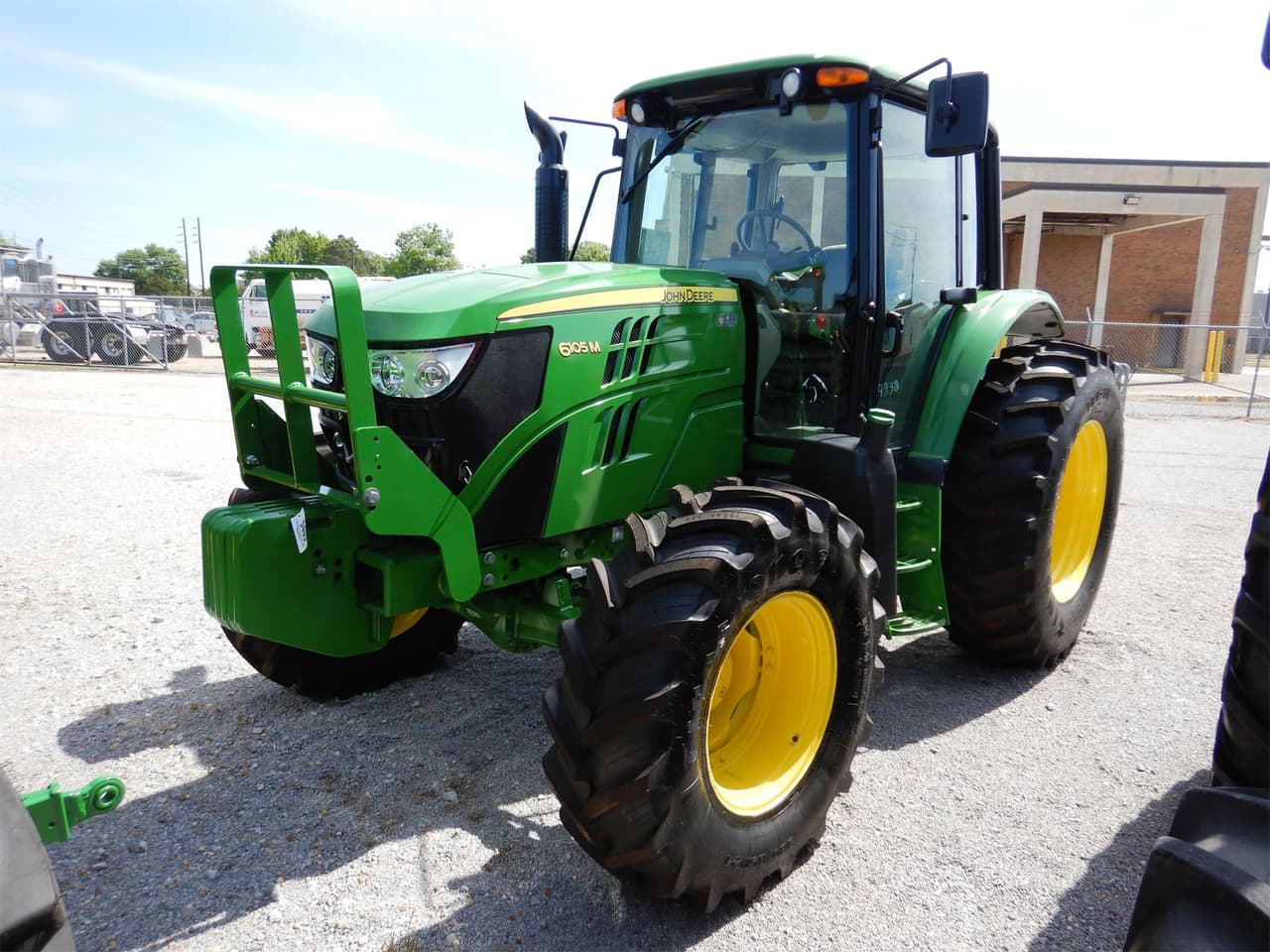

John Deere 6105M photos
FAQ
Common questions
When was the John Deere 6105M in production?
John Deere 6105M production started in 2013 and ended in 2015.
What transmission is in the John Deere 6105M?
Transmission on the John Deere 6105M is Selective gear fixed ratio with partial (4) range operator controlled power shift, with 24 forward speeds.
What type of hydraulic system does the John Deere 6105M use?
Hydraulics on the John Deere 6105M are Open center pressure compensated.
What hitch category is the John Deere 6105M?
The John Deere 6105M uses a Category Category II/IIIN hitch with a lift capacity of 6,152 lb.
How much horsepower does the John Deere 6105M have?
The John Deere 6105M produces 99.07 hp from its 4-cylinder engine. Engine displacement is 276 ci.
How much does the John Deere 6105M weigh?
The John Deere 6105M weighs about 11,040 lb in operating condition.
What maintenance does the John Deere 6105M require?
Like any tractor, the John Deere 6105M needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
