UtilityPerformance profile
John Deere 6110
The John Deere 6110 is a utility tractor made from 1999 to 2002. It's a powerful machine with an 84 hp diesel engine made by John Deere. This engine is turbocharged and has 4 cylinders. It's bigger than most tractors in its class, with very high engine displacement. The 6110 is built for hard work. It has a strong hitch that can lift up to 4,740 pounds, which is more than most similar tractors. The tractor is heavy too, weighing 9,645 pounds. This weight helps it handle tough jobs. It has a fully synchronized transmission with 12 forward gears and 4 reverse gears, giving the driver lots of options. The tractor also has a power take-off (PTO) that runs at 540 rpm, useful for powering other farm tools.
ManufacturerJohn DeerePower84 hpEngine4-cylTransFully synchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 84hp
- Operating Weight
- 9,645 lb
- Transmission
- Fully synchronized
At a glance
How the 6110 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
84 hp · 74th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 6110 ranks at the 74th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 6110
The John Deere 6110 is a utility tractor made from 1999 to 2002. It's a powerful machine with an 84 hp diesel engine made by John Deere. This engine is turbocharged and has 4 cylinders. It's bigger than most tractors in its class, with very high engine displacement. The 6110 is built for hard work. It has a strong hitch that can lift up to 4,740 pounds, which is more than most similar tractors. The tractor is heavy too, weighing 9,645 pounds. This weight helps it handle tough jobs. It has a fully synchronized transmission with 12 forward gears and 4 reverse gears, giving the driver lots of options. The tractor also has a power take-off (PTO) that runs at 540 rpm, useful for powering other farm tools.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 6110 |
| Category | Utility tractor |
| Years built | 1999–2002 |
| Operating weight | 9,645lb |
Engine
| Make | John Deere |
|---|---|
| Model | 4045TL053 |
| Power | 84hp |
| Cylinders | 4 |
| Displacement | 276ci |
| Bore | 4.17in |
| Stroke | 5in |
Transmission
| Type | Fully synchronized |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Steering | Power |
|---|---|
| Brakes | Differential hydraulic wet disc |
| Cab | Two-post ROPS |
Hydraulics
| Type | Closed center pressure-flow compensating |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 162.6in |
|---|---|
| Width | 79.9in |
| Height | 107.5in |
| Operating weight | 9,645lb |
Capacities
| Cooling system | 2.9gal |
|---|
Head to head
6110 vs. Utility median
How the John Deere 6110 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 84 hp | 55 hp | +53% | 74th |
| Engine Displacement | 276 ci | 183 ci | +51% | 81st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 9,645 lb | 5,303 lb | +82% | 85th |
| Length | 163 in | 137 in | +19% | 80th |
| Width | 79.9 in | 66 in | +21% | 81st |
| Height | 108 in | 94.1 in | +14% | 83rd |
| 3-Point Hitch Capacity | 4,740 lb | 3,197 lb | +48% | 73rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 6105E | 83.94 hp | 14,253 lb | 2016+ | Compare → |
| John Deere 5090M | 84.4 hp | 9,790 lb | — | Compare → |
| John Deere 2541 | 84.5 hp | 6,600 lb | — | Compare → |
| John Deere 2950 | 85 hp | — | 1983–1988 | Compare → |
| John Deere 3400 | 85 hp | 7,672 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT75 | 83 hp | 5,511 lb | 2004–2007 | Compare → |
| Agco GT75A | 83 hp | 6,040.7 lb | — | Compare → |
| Agco LT90 | 85 hp | 8,980 lb | — | Compare → |
| Apollo 854 | 85 hp | 10,360 lb | — | Compare → |
| AGCO LT85 | 85.4 hp | 8,450 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models

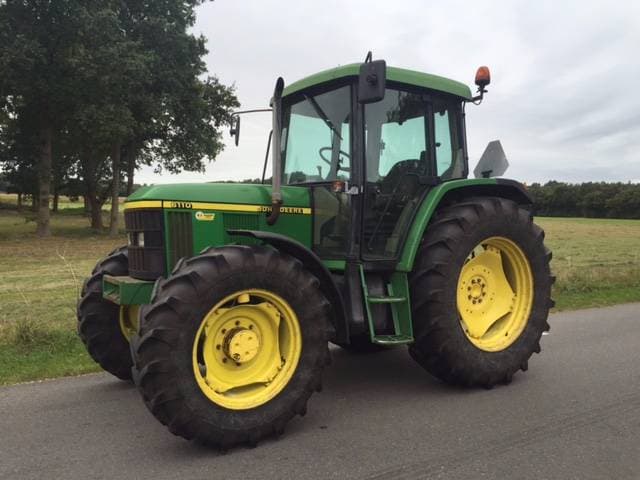

Gallery
John Deere 6110 photos
FAQ
Common questions
When was the John Deere 6110 made?
The John Deere 6110 was manufactured from 1999 to 2002.
Which transmission does the John Deere 6110 use?
The John Deere 6110 is equipped with a Fully synchronized transmission with 12 forward gears.
What hydraulics does the John Deere 6110 have?
The John Deere 6110 uses a Closed center pressure-flow compensating hydraulic system.
What three-point hitch category does the John Deere 6110 use?
The John Deere 6110 has a Category Category 3 three-point hitch rated to lift 4,740 lb.
What is the engine power output of the John Deere 6110?
Rated engine output for the John Deere 6110 is 84 hp, delivered by a 4-cylinder engine. The engine displaces 276 ci.
What is the operating weight of the John Deere 6110?
In working trim, the John Deere 6110 comes in at roughly 9,645 lb.
How do I maintain a John Deere 6110?
Routine service for the John Deere 6110 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
